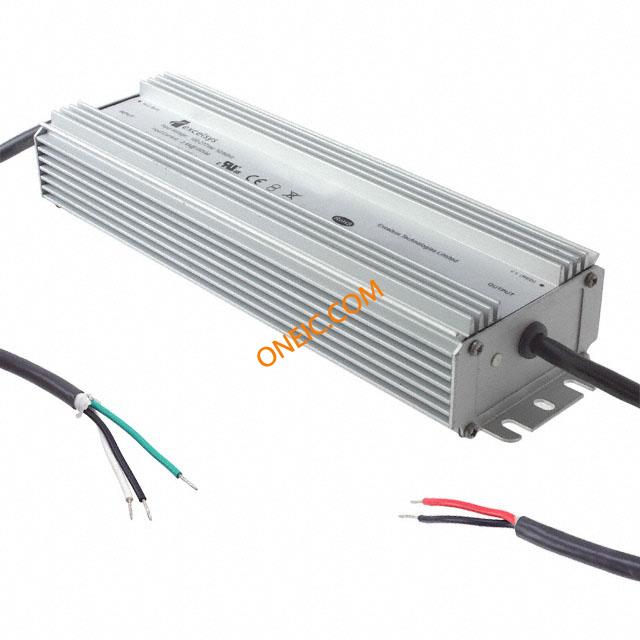

LXC200 power supplies - external/internal (off-board) 系列
Excelsys Technologies Ltd.具有多种电压和电流输出的通用AC/DC LED电源供应器
Excelsys Technologies 的 LXC200 系列是一款灵活的AC/DC电源供应器，适用于广泛的LED照明应用。这些电源供应器提供外部和内部（离板）配置，使其能够适应不同的系统设计。如果您正在从事需要精确控制LED照明的项目，那么LXC200系列绝对值得考虑。值得注意的是，该系列能够处理多种输出电压和电流，使其适用于不同类型的LED阵列。无论是用于商业照明的高功率LED，还是用于装饰用途的低功率LED，这些电源供应器都能满足您的需求。工程师通常在需要可靠且可配置的LED应用电源解决方案时会选择这一系列。另一个实用的好处是外部/离板选项，这使得它们更容易集成到现有系统中，而无需修改主电路板。这一特性在空间有限或希望将电源供应器与其他电子元件分开以提高散热性能和整体系统可靠性的情况下特别有用。总体而言，LXC200系列为那些寻求精确和灵活地供电LED系统的用户提供了一个稳健的解决方案。
其灵活的设计和可定制选项使其成为从工业照明到汽车乃至更广泛应用领域的理想选择。
系列图片（2 张）
文档与媒体
PDF 文档
常见问答
内容由 AI 生成，仅供参考
加载中...
03
LXC200 power supplies - external/internal (off-board) - 型号列表
共 15 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 认证机构 | 效率 | 功率（瓦） | 输出电流 | 输出数量 | 隔离电压 | 最小输入电压 | 重量 | 安装类型 | 尺寸/外形 | 端接样式 | 类型 | 产品特性 | 拓扑 | 额定等级 | 工作温度 | 重量（g） | 最大功率 | 供电电压 | 最大额定电流 | 直流输入电压（最大） | 直流输入电压（最小） | 尺寸 | 系列 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 14 | 1: ¥605.88 | - | 1 | CE, cULus, EN | 92% | 200W | 450mA | 1 | 3.75kV (3750V) | 267 ~ 445 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 1: ¥605.88 | - | 1 | CE, cULus, EN | 92% | 200W | 700mA | 1 | 3.75kV (3750V) | 171 ~ 285 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 1: ¥605.88 | - | 1 | CE, cULus, EN | 92% | 200W | 1.05A | 1 | 3.75kV (3750V) | 114 ~ 190 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 84 | 1: ¥605.88 | - | 1 | CE, cULus, EN | 92% | 200W | 1.4A | 1 | 3.75kV (3750V) | 85 ~ 142 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 1.75A | 1 | 3.75kV (3750V) | 69 ~ 114 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | 1540.00000 | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 2.1A | 1 | 3.75kV (3750V) | 57 ~ 95 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 2.45A | 1 | 3.75kV (3750V) | 48 ~ 81 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 2.8A | 1 | 3.75kV (3750V) | 42 ~ 71 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 3.15A | 1 | 3.75kV (3750V) | 38 ~ 63 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 3.5A | 1 | 3.75kV (3750V) | 34 ~ 57 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 4.2A | 1 | 3.75kV (3750V) | 28 ~ 47 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 4.9A | 1 | 3.75kV (3750V) | 24 ~ 40 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 5.6A | 1 | 3.75kV (3750V) | 21 ~ 35 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 91% | 200W | 6.3A | 1 | 3.75kV (3750V) | 19 ~ 32 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | - | - | - | - | - | - | - |
| 10 | 10: ¥873.97 | - | 1 | CE, cULus, EN | 90% | 200W | 8.33A | 1 | 3.75kV (3750V) | 14 ~ 24 V | 3.2 lbs (1.5kg) | Chassis Mount | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - | 200W | 14 ~ 24 V | 8.33A | 305VAC | 90VAC | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | LXC200 |
