cigen-LT4H24

LT4H24 timers & counter 系列

Panasonic Corporation

Panasonic Corporation

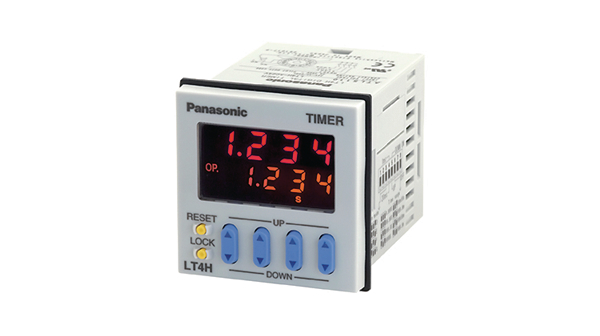

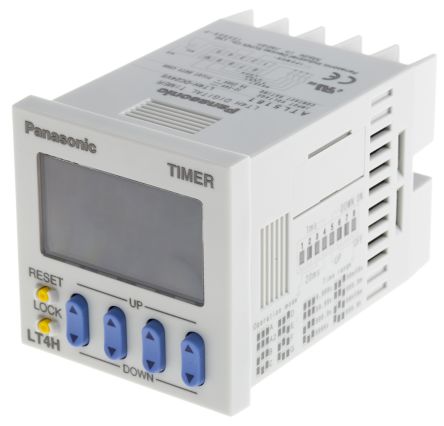

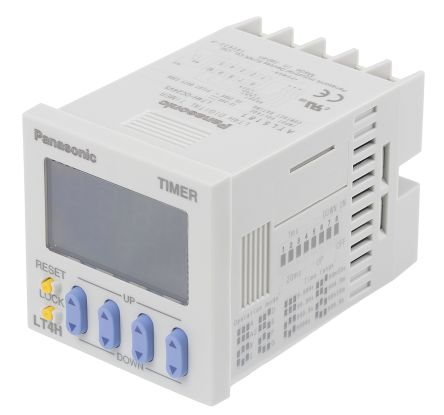

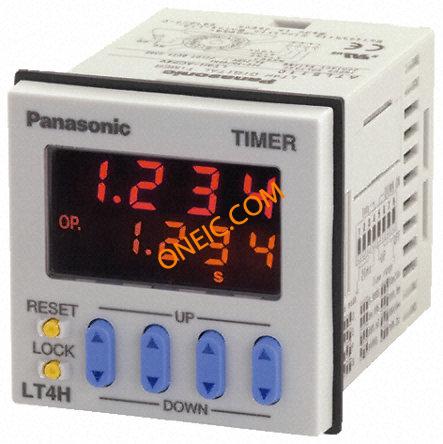

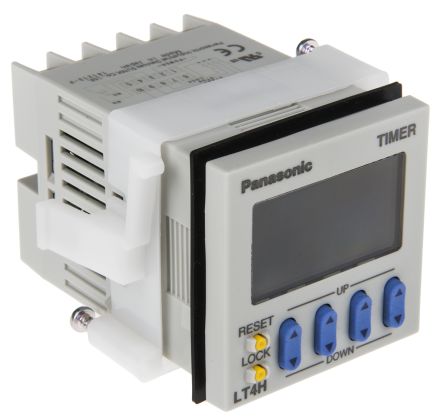

Multifunction time delay relays for precise timing control

系列图片（6 张）

常见问答

内容由 AI 生成，仅供参考

加载中...

03

LT4H24 timers & counter - 型号列表

共 7 个型号

制造商零件编号	库存	价格	产品类别	工作范围	工作温度	量程（°/s）	输出端	开关功能	开关电流	最小供电电压	总宽度	端接样式	面板开孔形状	功能	装配配置	防护等级	延迟时间	最大电压	工作模式	供电电压	供电类型	最大额定电流	深度	宽度	长度	安装类型	端子类型	触头材料	宏单元数量	关断延迟时间	连接器类型	定时器数量
3 LT4H240ACSJ Time Delay Relay Panasonic LT4H240ACSJ, 0 to 9999, 0 to 9999, 0 to 9999s, min, h Screw 250V ac Time lag relay Multifunction, LT4H240ACSJ, Panasonic Panasonic 2912468 多功能计时继电器, 0 → 9999 h, 0 → 9999 min, 0 → 9999 s, 100 → 240 V 交流 Panasonic Corporation	52	¥639.64	-	0 → 9999 h, 0 → 9999 min, 0 → 9999 s	+55°C	0.001 s...999.9 h	1 change-over (CO)	Multifunction	5 A@ 250 VAC	100...240 VAC	48 x 48 x 70 mm	Screw Terminal	45 x 45 mm	8	Plug-type assembly	IP 66 front panel	20 ms	250 V ac	Power ON Delay, Pulse ON Delay, Pulse One Shot, Signal Flicker, Signal OFF Delay, Signal ON Delay, Totalizing ON Delay	100 → 240 V ac	External	5 A	70mm	48mm	48mm	Flush	Screw	Gold Plated Silver Alloy	Multi Function	小时，分钟，秒	螺钉	多功能
LT4H240ACS Time Delay Relay Panasonic LT4H240ACS, 0.001 s to 0.1 h Screw 250V ac Panasonic Corporation	91	¥682.57	-	0.001 s → 0.1 h	+55°C	-	-	-	-	-	-	-	-	-	-	-	Hours, Seconds	250 V ac	Power ON Delay, Pulse ON Delay, Pulse One Shot, Signal Flicker, Signal OFF Delay, Signal ON Delay	100 → 240 V ac	External	5 A	64.5mm	48mm	48mm	Flush	Screw	Gold Plated Silver Alloy	Multi Function	-	-	-
2 LT4H24S Time Delay Relay Panasonic LT4H24S, 0.001 s to 0.1 h Screw 250V ac Panasonic J 多功能延时继电器, 0.001 s → 0.1 h, 12 → 24 V 直流 Panasonic Corporation	91	¥682.57	-	0.001 s → 0.1 h	+55°C	0.001 s → 0.1 h	-	-	-	-	-	-	-	-	-	-	Hours, Seconds	250 V ac	Power ON Delay, Pulse ON Delay, Pulse One Shot, Signal Flicker, Signal OFF Delay, Signal ON Delay	12 → 24 V dc	External	5 A	64.5mm	48mm	48mm	Flush	Screw	Gold Plated Silver Alloy	Multi Function	小时，秒	螺钉	多功能
3 LT4H24SJ Time Delay Relay Panasonic LT4H24SJ, 0 to 9999, 0 to 9999, 0 to 9999min, h, s Screw 250V ac Time lag relay Multifunction, LT4H24SJ, Panasonic Panasonic 多功能计时继电器, 0 → 9999 h, 0 → 9999 min, 0 → 9999 s, 12 → 24 V 直流 Panasonic Corporation	104	¥675.37	-	0 → 9999 h, 0 → 9999 min, 0 → 9999 s	+55°C	0.001 s...999.9 h	1 change-over (CO)	Multifunction	5 A@ 250 VAC	12...24 VDC	48 x 48 x 70 mm	Screw Terminal	45 x 45 mm	8	Plug-type assembly	IP 66 front panel	20 ms	250 V ac	Power ON Delay, Pulse ON Delay, Pulse One Shot, Signal Flicker, Signal OFF Delay, Signal ON Delay, Totalizing ON Delay	12 → 24 V dc	External	5 A	70mm	48mm	48mm	Flush	Screw	Gold Plated Silver Alloy	Multi Function	小时，分钟，秒	螺钉	多功能
LT4H240ACJ Time lag relay Multifunction, LT4H240ACJ, Panasonic Panasonic Corporation	0		-	8	-10...+55 °C	0.001 s...999.9 h	1 change-over (CO)	Multifunction	5 A@ 250 VAC	100...240 VAC	48 x 48 x 65 mm	11-pin Socket	45 x 45 mm	8	Plug-type assembly	IP 66 front panel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LT4H24J Time lag relay Multifunction, LT4H24J, Panasonic Panasonic Corporation	0		-	8	-10...+55 °C	0.001 s...999.9 h	1 change-over (CO)	Multifunction	5 A@ 250 VAC	12...24 VDC	48 x 48 x 65 mm	11-pin Socket	45 x 45 mm	8	Plug-type assembly	IP 66 front panel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LT4H24ACJ Time lag relay Multifunction, LT4H24ACJ, Panasonic Panasonic Corporation	0		-	8	-10...+55 °C	0.001 s...999.9 h	1 change-over (CO)	Multifunction	5 A@ 250 VAC	24 VAC/DC	48 x 48 x 65 mm	11-pin Socket	45 x 45 mm	8	Plug-type assembly	IP 66 front panel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
