LNX2L extendedoffer

LNX2L extendedoffer 系列

具有螺栓端子的高压铝电解电容器

Nichicon Corporation 的 LNX2L 延伸报价系列是一种高压铝电解电容器，专为需要坚固、持久的能量存储和滤波的应用设计。这些电容器常用于电源供应器、逆变器和工业控制系统中，其中高电压和可靠性至关重要。

如果您正在处理开关模式电源或电机驱动器项目，由于其能够处理高纹波电流并在长时间内保持稳定性能，这些电容器是首选。值得注意的是，螺栓端子提供了出色的机械稳定性，并便于安装和维护。当工程师需要能够在恶劣环境中可靠工作并在苛刻条件下提供一致性能的电容器时，往往会选择这一系列。延伸报价标识可能表明与标准型号相比，具有增强的耐用性和寿命，因此特别适合不允许停机时间的关键应用。

系列图片（12 张）

文档与媒体

PDF 文档

e-nx.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

LNX2L extendedoffer - 型号列表

共 13 个型号

制造商零件编号	库存	价格	产品类别	产品	工厂包装数量	RoHS	容差	电容	额定电压	漏电流	高频纹波电流	长度	直径	引脚间距	端接样式	系列	工作温度	包装方式
2 LNX2L222MSEH Aluminum Electrolytic Capacitors - Screw Terminal 550volts 2200uF 85c 76.2x130 CAP ALUM 2200UF 550V 20% SCREW Capacitor Nichicon	10	1: ¥646.204	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	15	RoHS Compliant	20 %	2200 uF	550 V	3.3 mA	8 A	130 mm	76.2 mm	31.8 mm	Screw	NX	- 25 C to + 85 C	Bulk
LNX2L682MSEJ Aluminum Electrolytic Capacitors - Screw Terminal 550volts 6800uF 85c 90x220 CAP ALUM 6800UF 550V 20% SCREW Capacitor Nichicon	10	1: ¥1,604.052	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	10	RoHS Compliant	20 %	6800 uF	550 V	5 mA	19.5 A	220 mm	90 mm	31.8 mm	Screw	NX	- 25 C to + 85 C	Bulk
2 LNX2L122MSEG Aluminum Electrolytic Capacitors - Screw Terminal 550volts 1200uF 85c 63.5x110 CAP ALUM 1200UF 550V 20% SCREW Capacitor Nichicon	21	1: ¥440.436	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	25	RoHS Compliant	20 %	1200 uF	550 V	2.44 mA	5 A	110 mm	63.5 mm	28.6 mm (1.125 in)	Screw	NX	- 25 C to + 85 C	Bulk
LNX2L822MSEK Aluminum Electrolytic Capacitors - Screw Terminal 550volts 8200uF 85c 100x220 CAP ALUM 8200UF 550V 20% SCREW Capacitor Nichicon	10	1: ¥2,162.74	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	5	RoHS Compliant	20 %	8200 uF	550 V	5 mA	21.6 A	220 mm	100 mm	41.5 mm	Screw	NX	- 25 C to + 85 C	Bulk
2 LNX2L182MSEH Aluminum Electrolytic Capacitors - Screw Terminal 550volts 1800uF 85c 76.2x110 CAP ALUM 1800UF 550V 20% SCREW Capacitor Nichicon	27	1: ¥608.192	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	15	RoHS Compliant	20 %	1800 uF	550 V	2.98 mA	6.7 A	110 mm	76.2 mm	31.8 mm	Screw	NX	- 25 C to + 85 C	Bulk

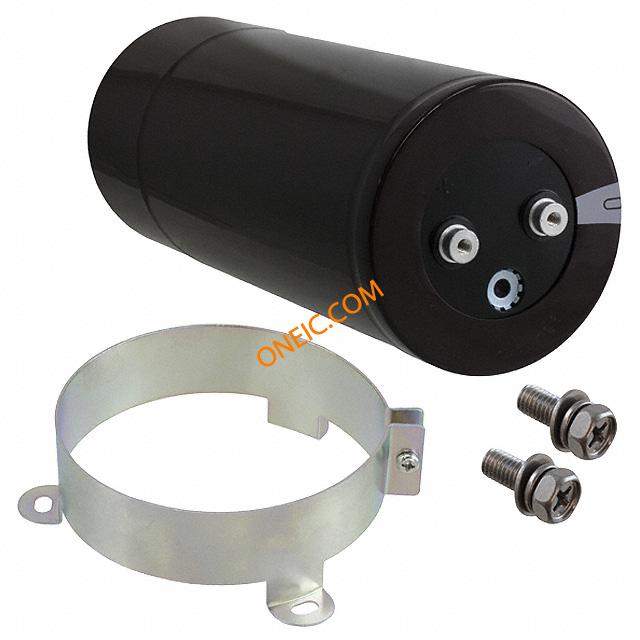

2 LNX2L332MSEH Aluminum Electrolytic Capacitors - Screw Terminal 550volts 3300uF 85c 76.2x170 CAP ALUM 3300UF 550V 20% SCREW Capacitor Nichicon	10	1: ¥874.276	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	10	RoHS Compliant	20 %	3300 uF	550 V	4.04 mA	11 A	170 mm	76.2 mm	31.8 mm	Screw	NX	- 25 C to + 85 C	Bulk
2 LNX2L272MSEH Aluminum Electrolytic Capacitors - Screw Terminal 550volts 2700uF 85c 76.2x150 CAP ALUM 2700UF 550V 20% SCREW Capacitor Nichicon	14	1: ¥760.24	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	15	RoHS Compliant	20 %	2700 uF	550 V	3.66 mA	9.4 A	150 mm	76.2 mm	31.8 mm	Screw	NX	- 25 C to + 85 C	Bulk
2 LNX2L152MSEG Aluminum Electrolytic Capacitors - Screw Terminal 550volts 1500uF 85c 63.5x130 CAP ALUM 1500UF 550V 20% SCREW Capacitor Nichicon	10	1: ¥524.28	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	25	RoHS Compliant	20 %	1500 uF	550 V	2.72 mA	6 A	130 mm	63.5 mm	28.6 mm (1.125 in)	Screw	NX	- 25 C to + 85 C	Bulk
2 LNX2L102MSEF Aluminum Electrolytic Capacitors - Screw Terminal 550volts 1000uF CAP ALUM 1000UF 550V 20% SCREW Capacitor Nichicon	10	1: ¥381.956	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	25	RoHS Compliant	20 %	1000 uF	550 V	2.22 mA	4.3 A	130 mm	51 mm	22 mm (0.875 in)	Screw	NX	- 25 C to + 85 C	-

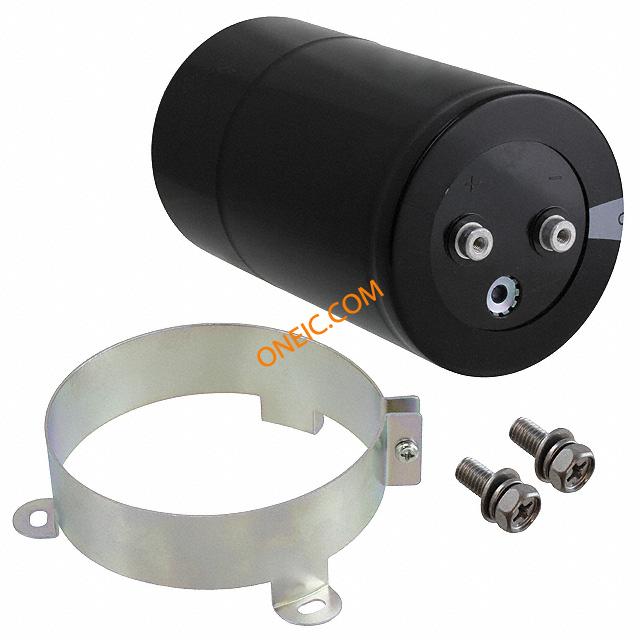

2 LNX2L392MSEJ Aluminum Electrolytic Capacitors - Screw Terminal 550volts 3900uF 85c 90x150 CAP ALUM 3900UF 550V 20% SCREW Capacitor Nichicon	12	1: ¥1,026.324	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	10	RoHS Compliant	20 %	3900 uF	550 V	4.39 mA	12.5 A	150 mm	90 mm	31.8 mm	Screw	NX	- 25 C to + 85 C	Bulk
2 LNX2L103MSEK Aluminum Electrolytic Capacitors - Screw Terminal 550volts 10000uF 85c 100x250 CAP ALUM 10000UF 550V 20% SCREW Capacitor Nichicon	15	1: ¥2,440.588	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	5	RoHS Compliant	20 %	0.01 Farad	550 V	5 mA	25.2 A	250 mm	100 mm	41.5 mm	Screw	NX	- 25 C to + 85 C	Bulk
2 LNX2L472MSEJ Aluminum Electrolytic Capacitors - Screw Terminal 550volts 4700uF 85c 90x170 CAP ALUM 4700UF 550V 20% SCREW Capacitor Nichicon	10	1: ¥1,171.504	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	10	RoHS Compliant	20 %	4700 uF	550 V	4.82 mA	14.5 A	170 mm	90 mm	31.8 mm	Screw	NX	- 25 C to + 85 C	Bulk
2 LNX2L562MSEJ Aluminum Electrolytic Capacitors - Screw Terminal 550volts 5600uF 85c 90x190 CAP ALUM 5600UF 550V 20% SCREW Capacitor Nichicon	11	1: ¥1,333.684	Aluminum Electrolytic Capacitors - Screw Terminal	Aluminum Electrolytic Capacitors	10	RoHS Compliant	20 %	5600 uF	550 V	5 mA	16.6 A	190 mm	90 mm	31.8 mm	Screw	NX	- 25 C to + 85 C	Bulk
