LE-0503-03 lighting 系列

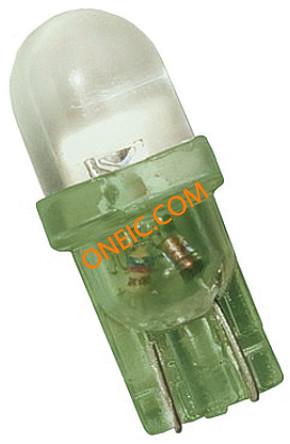

JKL Components Corporation12V wedge base LED lamps in various colors for indicator applications
系列图片（21 张）
常见问答
LE-0503-03 lighting - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 波长 | 视角 | 额定电压 | 供电电压 | 毫坎德拉等级 | 最大额定电流 | 颜色 | 长度 | 直径 | 底座类型 | LED颜色 | 发光颜色 | 透镜尺寸（因值为长宽高，非直径） | 透镜样式/尺寸 | 插座类型 | 配置 | 灯/放大镜类型 | 产品 | 峰值波长 | LED正向电流 | LED正向电压 | 包装方式 | 照明颜色 | 尺寸/外形 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

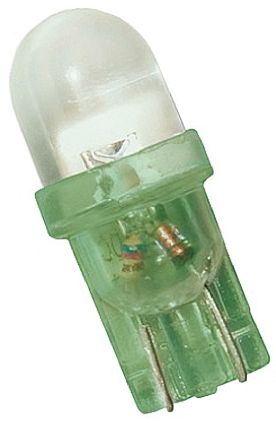

 LE-0503-03G LED Replacement Lamps - Based LEDs Grn 525nm 12V Wedge Base LED Lamp LED T-3.25 12V WEDGE 25MA GREEN T3 1/4 10mm LED Wedge Green 12V T3-1/4 Wedge LED 12VDC Green 绿色 楔形 LED指示灯灯泡, 9 mm灯, 10mm直径, 12 V 直流 JKL Components | 39 | ¥4.76 | LED Replacement Lamps - Based LEDs | 100 | RoHS Compliant | 525nm | 20° | 12 V dc | 12V | 12600mcd | 15 mA | Green | 27.5 mm | 10mm | Wedge | 绿色 | Green | 9 mm | 15° | 楔形 | Single | 9 mm | Single Color Based LEDs | 525 nm | 15 mA | 12 V | Bulk | Green | - |
 LE-0503-03R LED Replacement Lamps - Based LEDs Red 630nm 12V Wedge Base LED Lamp LED T-3.25 12V WEDGE 25MA RED T3 1/4 10mm LED Wedge Red 12V T3-1/4 Wedge LED 12VDC Red 红色 楔形 LED指示灯灯泡, 9 mm灯, 10mm直径, 12 V 直流 JKL Components | 60 | ¥2.70 | LED Replacement Lamps - Based LEDs | 100 | RoHS Compliant | 627nm | 20° | 12 V dc | 12V | 7200mcd | 15 mA | Red | 27.5 mm | 10mm | Wedge | 红色 | Red | 9 mm | 24° | 楔形 | Single | 9 mm | Single Color Based LEDs | 630 nm | 15 mA | 12 V | Bulk | Red | - |

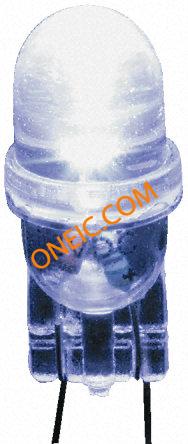

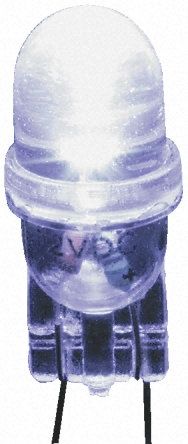

 LE-0503-03W LED Replacement Lamps - Based LEDs White 12 Volts Wedge Base LED Lamp LED T-3.25 12V WEDGE 25MA WHITE T3 1/4 10mm LED Wedge White 12V T3-1/4 Wedge LED 12VDC White 白色 楔形 LED指示灯灯泡, 9 mm灯, 10mm直径, 12 V 直流 JKL Components | 497 | ¥4.76 | LED Replacement Lamps - Based LEDs | 100 | RoHS Compliant | 473nm | 20° | 12 V dc | 12V | 11200mcd | 15 mA | White | 27.5 mm | 10mm | Wedge | 白色 | White | 9 mm | 22° | 楔形 | Single | 9 mm | Single Color Based LEDs | - | 15 mA | 12 V | Bulk | White | - |

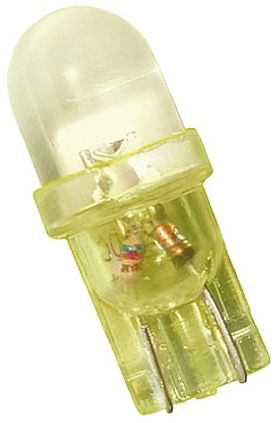

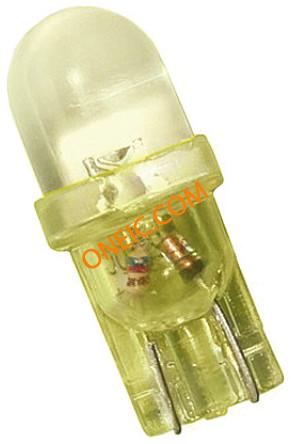

 LE-0503-03Y LED Replacement Lamps - Based LEDs Yel 595nm 12V Wedge Base LED Lamp LED T-3.25 12V WEDGE 25MA YELLOW T3 1/4 10mm LED Wedge Yellow 12V T3-1/4 Wedge LED 12VDC Yellow 黄色 楔形 LED指示灯灯泡, 9 mm灯, 10mm直径, 12 V 直流 JKL Components | 89 | ¥2.70 | LED Replacement Lamps - Based LEDs | 100 | RoHS Compliant | 595nm | 20° | 12 V dc | 12V | 8600mcd | 15 mA | Yellow | 27.5 mm | 10mm | Wedge | 黄色 | Yellow | 9 mm | 26° | 楔形 | Single | 9 mm | Single Color Based LEDs | 595 nm | 15 mA | 12 V | Bulk | Yellow | - |

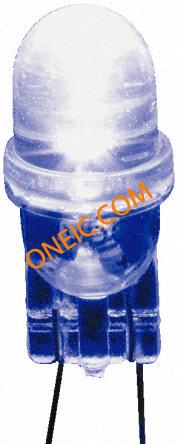

 LE-0503-03B LED Replacement Lamps - Based LEDs Blue 470nm 12V Wedge Base LED Lamp LED T-3.25 12V WEDGE 25MA BLUE T3 1/4 10mm LED Wedge Blue 12V T3-1/4 Wedge LED 12VDC Blue 蓝色 楔形 LED指示灯灯泡, 9 mm灯, 10mm直径, 12 V 直流 JKL Components | 29 | ¥4.76 | LED Replacement Lamps - Based LEDs | 100 | RoHS Compliant | 473nm | 20° | 12 V dc | 13.2V | 2800mcd | 15 mA | Blue | 27.5 mm | 10mm | Wedge | 蓝色 | Blue | 9 mm | 18° | 楔形 | Single | 9 mm | Single Color Based LEDs | 470 nm | 15 mA | 12 V | Bulk | Blue | T - 3 1/4 |

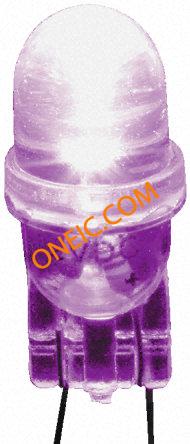

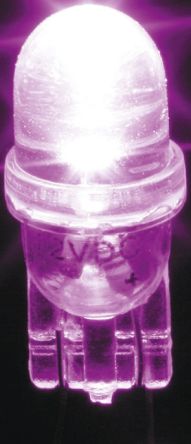

 LE-0503-03UV LED T-3.25 12V WEDGE 25MA UV T3 1/4 10mm LED Wedge UV 12V 紫外线 楔形 LED指示灯灯泡, 9 mm灯, 10mm直径, 12 V 直流 JKL Components Corp. | 425 | ¥6.975 | - | 100 | Compliant | 405nm | 20° | 12 V dc | 13.2V | 540mcd | 15 mA | Ultraviolet (UV) | 27.5 mm | 10mm | Wedge | 紫外线 | Ultra Violet | 9 mm | 25° | 楔形 | Single | 9 mm | - | 405 nm | - | - | - | - | T - 3 1/4 |
