KRL3216T4-M resistor 系列
Susumu Co., Ltd.低阻值表面贴装电阻器，适用于精密电子电路
Susumu Co., Ltd. 的 KRL3216T4-M 系列是低阻值表面贴装电阻器，专为精密电子电路设计。这些电阻器通常用于要求高精度和稳定性的应用中，例如放大器、滤波器和精密电压分压器。如果您正在从事需要严格公差和一致性能的项目，这些电阻器是一个不错的选择。
值得注意的是，它们具有紧凑的尺寸，使其非常适合空间受限的PCB设计。它们采用0603封装，允许进行密集元件布局而不牺牲性能。当工程师需要能够在恶劣环境条件下可靠工作的低值电阻器，并且需要长时间保持其阻值时，往往会选用这种类型的电阻器。另一个实用的观察结果是，它们能够承受较宽的温度范围，因此适用于工业和消费电子产品。

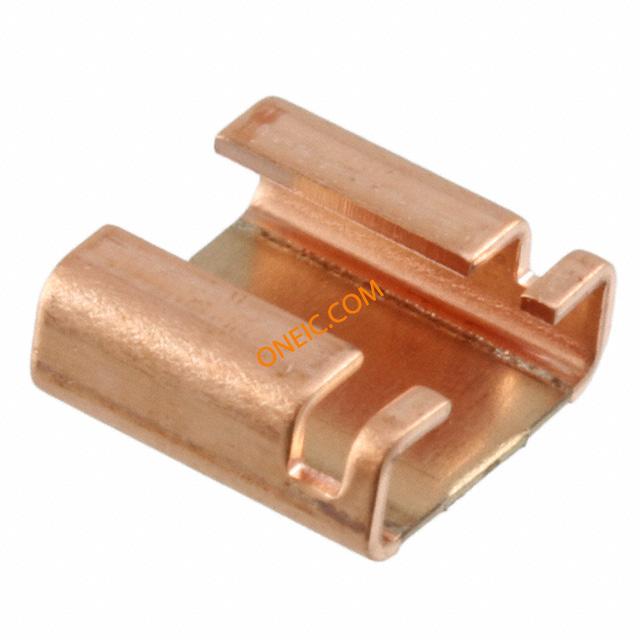

系列图片（1 张）
文档与媒体
PDF 文档
常见问答
内容由 AI 生成，仅供参考
加载中...
03
KRL3216T4-M resistor - 型号列表
共 15 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 容差 | 功率（瓦） | 电阻值（欧姆） | 高度 | 包装方式 | 封装形式 | 尺寸/外形 | 端接数 | 供应商器件封装 | 产品特性 | 成分 | 温度系数 | RoHS | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.001 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±100ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.002 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±100ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.003 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±100ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.004 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.005 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.006 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.007 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.008 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.009 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.01 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.1 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.2 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
| 10 | 1000: ¥8.67 | - | 1,000 | ±1% | 1W | 0.5 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Current Sense | Metal Foil | ±50ppm/°C | Lead free / RoHS Compliant | - |
 | 0 | - | 1,000 | ±2% | 1W | 0.001 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Automotive AEC-Q200, Current Sense | Metal Foil | ±100ppm/°C | - | -55°C ~ 155°C | |
| 10 | 1000: ¥18.1007 | - | 1,000 | ±2% | 1W | 0.002 | 0.028" (0.70mm) | Tape & Reel (TR) | Wide 1206 (3216 Metric), 0612 | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 4 | 1206 | Automotive AEC-Q200, Current Sense | Metal Foil | ±100ppm/°C | - | -55°C ~ 155°C |
