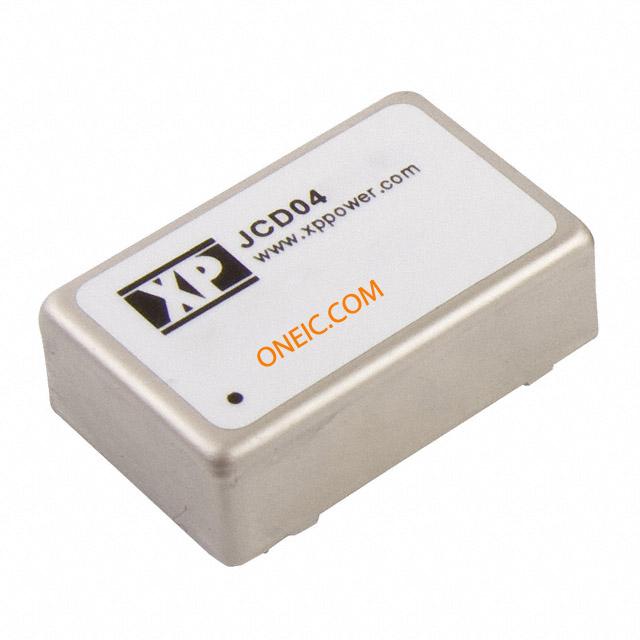

JCD0448 power supplies - board mount 系列

XP Power LimitedXP Power Limited

4W isolated DC-DC converters with precise voltage regulation

系列图片（9 张）

文档与媒体

PDF 文档
SF_JCD.pdf

常见问答

内容由 AI 生成，仅供参考
加载中...
03

JCD0448 power supplies - board mount - 型号列表

共 12 个型号

其他名称

输出电流

效率

额定电压

输出电流2

输出电压2（可调范围）

输出数量

封装形式

制造商零件编号库存价格产品类别其他名称标准包装数量RoHSSVHC海关税号认证机构效率最大功率额定功率转换器类型额定电压输出电流供电电压输出数量最大功率（瓦特）隔离电压最小输入电压直流输入电压（最大）深度宽度高度重量包装方式安装类型封装形式尺寸/外形类型产品特性工作温度输出电流2输出电压2（可调范围）
JCD0448D24
2
JCD0448D24

DC/DC CONVERTER, 4W, +/-24V, DIP-24 DC/DC CONVERTER +/-24V 4W

XP POWER

10¥103.43-1470-1869-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN79%:4W:4W:Isolated POL:24V:83mA, 83mA:48V:24W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (8 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C:-83mA:-24V
JCD0448S3V3
3
JCD0448S3V3

DC/DC CONVERTER, 4W, 3.3V, DIP-24 DC/DC CONVERTER 3.3V 4W XP Power JCD 系列 4W 隔离式直流-直流转换器 , 3.3V dc输出, 最大 1.2A输出 ±0.5%负载调节 ±0.5%线路调节

XP POWER

29¥98.12-1470-1875-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN76%:4W:4W:Isolated POL:3.3V:1.2A:48V:14W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (7 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C--
JCD0448S05
2
JCD0448S05

DC/DC CONVERTER, 4W, 5V, DIP-24 DC/DC CONVERTER 5V 4W

XP POWER

15¥98.12-1470-1870-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN80%:4W:4W:Isolated POL:5V:800mA:48V:14W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (7 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C--
JCD0448S09
3
JCD0448S09

DC/DC CONVERTER, 4W, 9V, DIP-24 DC/DC CONVERTER 9V 4W XP Power JCD 系列 4W 隔离式直流-直流转换器 , 9V dc输出, 最大 444mA输出 ±0.5%负载调节 ±0.5%线路调节

XP POWER

15¥98.12-1470-1871-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN83%:4W:4W:Isolated POL:9V:444mA:48V:14W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (7 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C--
JCD0448S12
3
JCD0448S12

DC/DC CONVERTER, 4W, 12V, DIP-24 DC/DC CONVERTER 12V 4W XP Power JCD 系列 4W 隔离式直流-直流转换器 , 12V dc输出, 最大 333mA输出 ±0.5%负载调节 ±0.5%线路调节

XP POWER

20¥98.12-1470-1872-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN84%:4W:4W:Isolated POL:12V:333mA:48V:14W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (7 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C--
JCD0448S24
3
JCD0448S24

DC/DC CONVERTER, 4W, 24V, DIP-24 DC/DC CONVERTER 24V 4W XP Power JCD 系列 4W 隔离式直流-直流转换器 , 24V dc输出, 最大 166mA输出 ±0.5%负载调节 ±0.5%线路调节

XP POWER

11¥98.12-1470-1874-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN85%:4W:4W:Isolated POL:24V:166mA:48V:14W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (7 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C--
JCD0448D03
2
JCD0448D03

DC/DC CONVERTER, 4W, +/-3.3V, DIP-24 DC/DC CONVERTER +/-3.3V 4W

XP POWER

15¥103.43-1470-1864-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN76%:4W:4W:Isolated POL:3.3V:600mA, 600mA:48V:24W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (8 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C:-600mA:-3.3V
JCD0448D05
2
JCD0448D05

DC/DC CONVERTER, 4W, +/-5V, DIP-24 DC/DC CONVERTER +/-5V 4W

XP POWER

15¥103.43-1470-1865-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN80%:4W:4W:Isolated POL:5V:400mA, 400mA:48V:24W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (8 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C:-400mA:-5V
JCD0448D09
2
JCD0448D09

DC/DC CONVERTER, 4W, +/-9V, DIP-24 DC/DC CONVERTER +/-9V 4W

XP POWER

15¥103.43-1470-1866-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN83%:4W:4W:Isolated POL:9V:220mA, 220mA:48V:24W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (8 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C:-220mA:-9V
JCD0448D15
3
JCD0448D15

DC/DC CONVERTER, 4W, +/-15V, DIP-24 DC/DC CONVERTER +/-15V 4W XP Power JCD 系列 4W 隔离式直流-直流转换器 , ±15V dc输出, ±133mA输出 ±0.5%负载调节 ±0.5%线路调节

XP POWER

13¥103.43-1470-1868-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN83%:4W:4W:Isolated POL:15V:133mA, 133mA:48V:24W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (8 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C:-133mA:-15V
JCD0448S15
3
JCD0448S15

DC/DC CONVERTER, 4W, 15V, DIP-24 DC/DC CONVERTER 15V 4W XP Power JCD 系列 4W 隔离式直流-直流转换器 , 15V dc输出, 最大 266mA输出 ±0.5%负载调节 ±0.5%线路调节

XP POWER

15¥98.12-1470-1873-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN81%:4W:4W:Isolated POL:15V:266mA:48V:14W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (7 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C--
JCD0448D12
3
JCD0448D12

DC/DC CONVERTER, 4W, +/-12V, DIP-24 DC/DC CONVERTER +/-12V 4W XP Power JCD 系列 4W 隔离式直流-直流转换器 , ±12V dc输出, ±166mA输出 ±0.5%负载调节 ±0.5%线路调节

XP POWER

13¥103.43-1470-1867-515Lead free / RoHS Compliant:No SVHC (20-Jun-2013)85044090:EN83%:4W:4W:Isolated POL:12V:166mA, 166mA:48V:24W:1.6kV:Fixed:72V:31.75mm:20.32mm:10.4mm0.018Tube:Through Hole24-DIP Module (8 Leads)1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)Isolated ModuleOCP, OVP, SCP-40°C ~ 100°C:-166mA:-12V
第 1 / 1 页
