HQCCWA121 passive component 系列
AVX Corporation表面安装用高压多层陶瓷电容器
AVX Corporation 的 HQCCWA121 系列是一款高压多层陶瓷电容器，专为表面贴装应用设计。这些组件常用于电源供应器、电机驱动器以及其他高功率电子设备中，在高压环境下可靠运行至关重要。如果您正在处理涉及开关电源、逆变器或其他需要紧凑型大容量电容的系统项目，这些电容是理想的选择。
值得注意的是，它们能够处理高纹波电流，使其非常适合具有显著交流成分的应用。当工程师需要一个能够在高频切换电路中承受严苛条件下的稳定高容量解决方案时，往往会选用这一系列电容。另一个实用的观察结果是其出色的温度稳定性，确保在广泛的操作温度范围内保持一致性能。这种可靠性对于存在频繁热循环的环境至关重要。

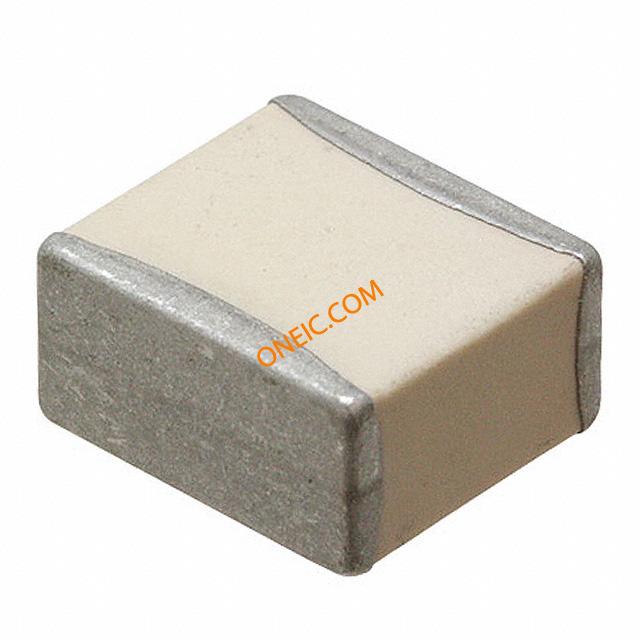

系列图片（2 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
HQCCWA121 passive component - 型号列表
共 11 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 容差 | 电容 | 额定电压 | 包装方式 | 封装形式 | 尺寸/外形 | 工作温度 | 温度系数 | 产品 | 商标名 | RoHS | 宽度 | 端接样式 | 安装孔直径 | 类型 | 系列 | 机械寿命 | 其他名称 | 标准包装数量 | 安装类型 | 厚度（最大） | 产品特性 | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 36: ¥293.216 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 1 % | 120 pF | 2.5 kV | Waffle | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 358: ¥131.648 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 5 % | 120 pF | 2.5 kV | Reel | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 36: ¥293.216 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 2 % | 120 pF | 2.5 kV | Waffle | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 358: ¥131.648 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 2 % | 120 pF | 2.5 kV | Reel | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 358: ¥131.648 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 1 % | 120 pF | 2.5 kV | Reel | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 36: ¥293.216 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 5 % | 120 pF | 2.5 kV | Waffle | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 36: ¥293.216 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 10 % | 120 pF | 2.5 kV | Waffle | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 358: ¥131.648 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 20 % | 120 pF | 2.5 kV | Reel | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 358: ¥131.648 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 10 % | 120 pF | 2.5 kV | Reel | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
| 10 | 36: ¥293.216 | Multilayer Ceramic Capacitors MLCC - SMD/SMT | 20 % | 120 pF | 2.5 kV | Waffle | 2523 (Reversed) | 4.19 mm W x 6.35 mm L x 5.84 mm H | - 55 C to + 125 C | C0G (NP0) | High Q MLCCs | Hi-Q | RoHS Compliant | 4.19 mm | SMD/SMT | 2523 (Reversed) | High Q High RF Power Chip for 600 V to 7.2 kV | HQ | New Product: New from this manufacturer. | - | - | - | - | - | - |
 | 61 | 1: ¥173.128 | - | ±2% | 120pF | 2500V (2.5kV) | Tray - Waffle | 2325 (5864 Metric) | 0.230" L x 0.250" W (5.84mm x 6.35mm) | -55°C ~ 125°C | C0G, NP0 | - | - | - | - | - | - | - | - | - | 478-6456 | 36 | Surface Mount, MLCC | 0.145" (3.68mm) | High Q, Low Loss, Ultra Low ESR, High Voltage | RF, Microwave, High Frequency |
