GP1UE271 optoelectronic 系列
Sharp Corporation3V infrared remote control receivers operating at 38kHz frequency
系列图片（6 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
GP1UE271 optoelectronic - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 工厂包装数量 | RoHS | 频率 | 输出电流 | 供电电压 | I/O高电平电压 | 安装类型 | 脉冲宽度失真（最大） | 工作温度 | 欧盟RoHS | 额定电压 | 输出频率2 | 最小供电电压 | 位数 | 抗辐射加固 | 宽度 | 总长度 | 外壳尺寸-插件 | 印刷电路板数量 | 控制器到传感器最大距离 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GP1UE271RK0F IR Remote Receiver 38KHz 3-Pin Infrared Receivers Rem Cont Receiver 3V 38 kHz RECEIVER IR REM CTRL 3V 38KHZ sharp microelectronics | 10 | 670: ¥4.7872 | Infrared Receivers | Trays | 1000 | RoHS Compliant | 38 kHz | 0.4 mA | 2.4 to 3.6 V | 1.9 V | Through Hole | 1200 us | -10 to 70 °C | - | - | - | - | - | - | - | - | - | - | - |
 GP1UE271XKVF IR Remote Receiver 38KHz 3-Pin Infrared Receivers Rem Cont Receiver 3V 38 kHz RECEIVER IR REM CTRL 3V 38KHZ sharp microelectronics | 169 | 1: ¥9.792 | Infrared Receivers | Tape & Reel | 1000 | RoHS Compliant | 38 kHz | 0.27 mA | 2.7 to 5.5 V | 2.2 V | Through Hole | 1200 us | -10 to 70 °C | Compliant | 2.7 | 38 | 2.7 V | 3 | No | 12 | 5.6 | 7.6 | 3 | - |

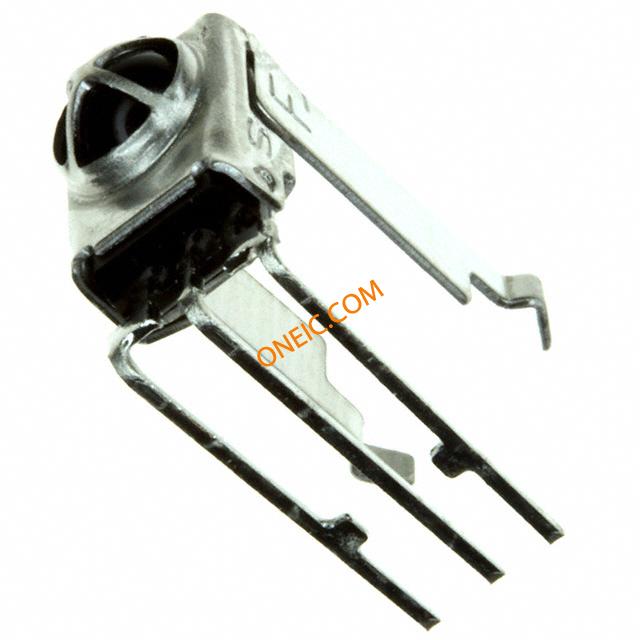

GP1UE271RKVF IR Remote Receiver 38KHz 3-Pin Infrared Receivers Rem Cont Recvr 3V 38 kHz L form Mesh RECEIVER IR REM CTRL 3V 38KHZ sharp microelectronics | 10 | 670: ¥3.6652 | Infrared Receivers | Tape & Reel | 1000 | RoHS Compliant | 38 kHz | 0.27 mA | 2.7 to 5.5 V | 2.2 V | Through Hole | 1200 us | -10 to 70 °C | Compliant | 2.7 | 38 | 5.5 | 3 | - | - | - | - | - | - |

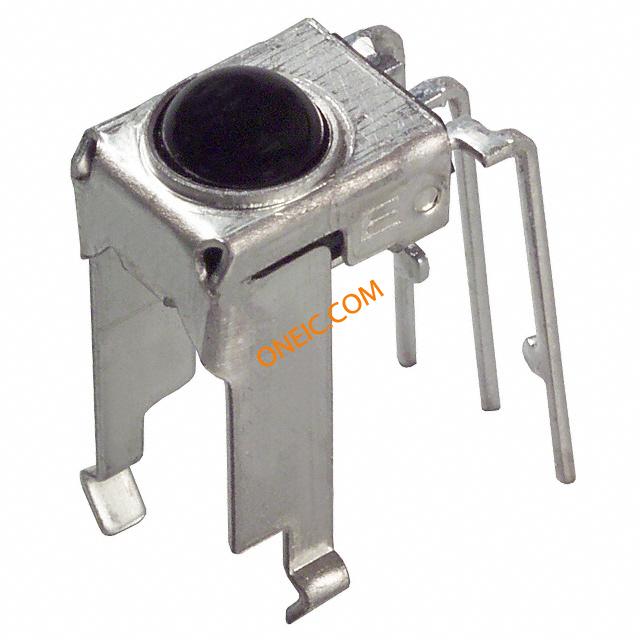

GP1UE271XK0F IR Remote Receiver 38KHz 3-Pin Infrared Receivers Rem Cont Receiver 3V 38 kHz RECEIVER IR REM CTRL 3V 38KHZ sharp microelectronics | 344 | 1: ¥6.12 | Infrared Receivers | Trays | 1000 | RoHS Compliant | 38 kHz | 0.4 mA | 2.4 to 3.6 V | 1.9 V | Through Hole | 1200 us | -10 to 70 °C | Compliant | 2.4 | 38 | 2.4 V to 3.6 V | 3 | - | - | - | - | - | 8 m |
 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
