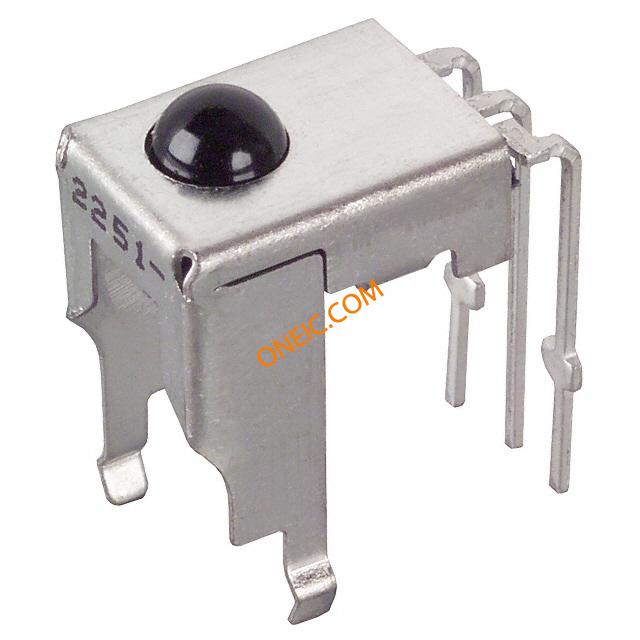

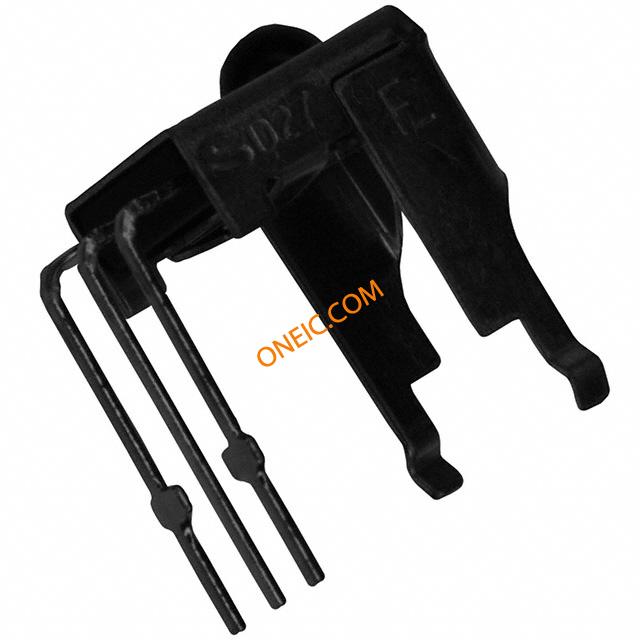

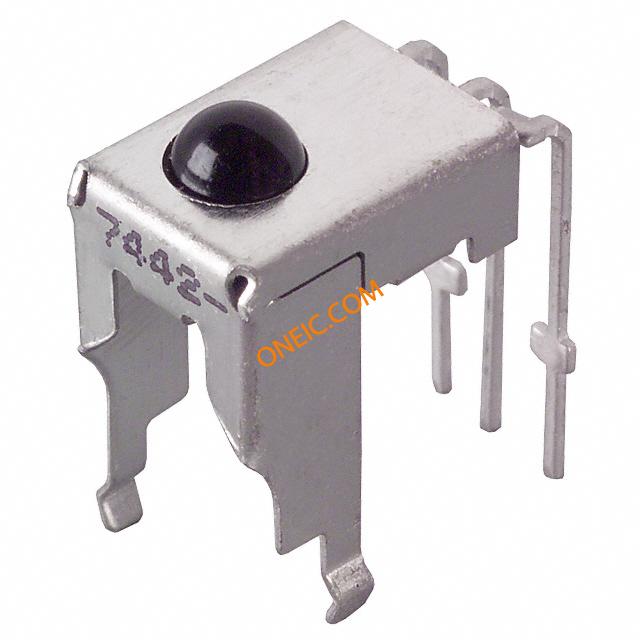

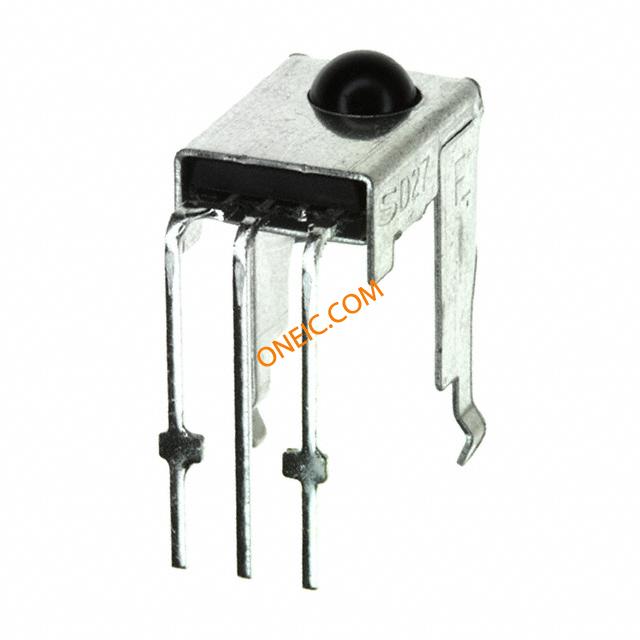

GP1UD27 optoelectronic 系列
Sharp Corporation遥控应用的低电流红外接收器
Sharp Corporation 的 GP1UD27 系列是一款低功耗红外接收器，专为遥控应用设计。这些设备通常用于消费电子产品、家庭自动化系统以及各种需要高效节能的嵌入式系统中。如果您正在开发需要精确控制能耗的项目，这些接收器非常适合。
值得注意的是，它们具有较高的灵敏度，并能有效处理低信号水平。这使它们特别适用于可能受到环境光线或其他干扰影响的环境中。当工程师们需要可靠的遥控功能而不需要消耗大量功率时，往往会选用这种接收器，使其成为电池供电设备的理想选择。此外，其紧凑的尺寸和低功耗特性使其成为一个不牺牲性能的空间节省解决方案。
系列图片（6 张）
文档与媒体
常见问答
GP1UD27 optoelectronic - 型号列表
共 10 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 工厂包装数量 | RoHS | 频率 | 输出电流 | 供电电压 | I/O高电平电压 | 脉冲宽度失真（最大） | 工作温度 | 标准包装数量 | 安装类型 | 机械寿命 | 最小供电电压 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IR Remote Receiver 56.8KHz 3-Pin Infrared Receivers Very Lo Current 56.8 kHz GP1UE RECEIVER REMOTE CTRL TOP 56.8KHZ sharp microelectronics | 10 | 740: ¥5.0252 | Infrared Receivers | 1000 | RoHS Compliant | 56.8 kHz | 0.2 mA | 2.7 to 5.5 V | 2.2 V | 1200 us | -10 to 70 °C | Tape & Reel | Snap in | - | 2.7 V to 5.5 V |
IR Remote Receiver 36KHz 3-Pin Infrared Receivers Very Lo Current 36 kHz GP1UE RECEIVER REMOTE CTRL TOP 36KHZ sharp microelectronics | 10 | 740: ¥5.0252 | Infrared Receivers | 1000 | RoHS Compliant | 36 kHz | 0.2 mA | 2.7 to 5.5 V | 2.2 V | 1200 us | -10 to 70 °C | Tape & Reel | Snap in | - | - |
IR Remote Receiver 36.7KHz 3-Pin Infrared Receivers Very Lo Current 36.7 kHz GP1UE RECEIVER REMOTE CTRL TOP 36.7KHZ sharp microelectronics | 10 | 740: ¥5.0252 | Infrared Receivers | 1000 | RoHS Compliant | 36.7 kHz | 0.2 mA | 2.7 to 5.5 V | 2.2 V | 1200 us | -10 to 70 °C | Tape & Reel | Snap in | - | - |
VERY LOW CURRENT, 56.8 KHZ, BLACK FACE - CONTACT MARKETING F Infrared Receivers Very Lo Current 56.8 kHz Blk Face RECEIVER REMOTE CTRL TOP 56.8KHZ sharp microelectronics | 10 | 1540: ¥4.7736 | Infrared Receivers | 2000 | RoHS Compliant | - | - | - | - | - | - | - | - | - | - |
Infrared Receivers Very Lo Current 40 kHz GP1UE RECEIVER REMOTE CTRL TOP 40KHZ Sharp Microelectronics | 0 | Infrared Receivers | 1000 | RoHS Compliant | 40 kHz | 0.2 mA | 2.7 V to 5.5 V | 2.2 V | 1200 us | + 70 C | - | - | Obsolete | - | |
Infrared Receivers Very Lo Current 38 kHz GP1UE RECEIVER REMOTE CTRL TOP 38KHZ Sharp Microelectronics | 0 | Infrared Receivers | 1000 | RoHS Compliant | 38 kHz | 0.2 mA | 2.7 V to 5.5 V | 2.2 V | 1200 us | + 70 C | - | - | Obsolete | - | |
 | 450 | 1: ¥11.288 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 309 | 1: ¥9.384 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
