cigen-FSM1J

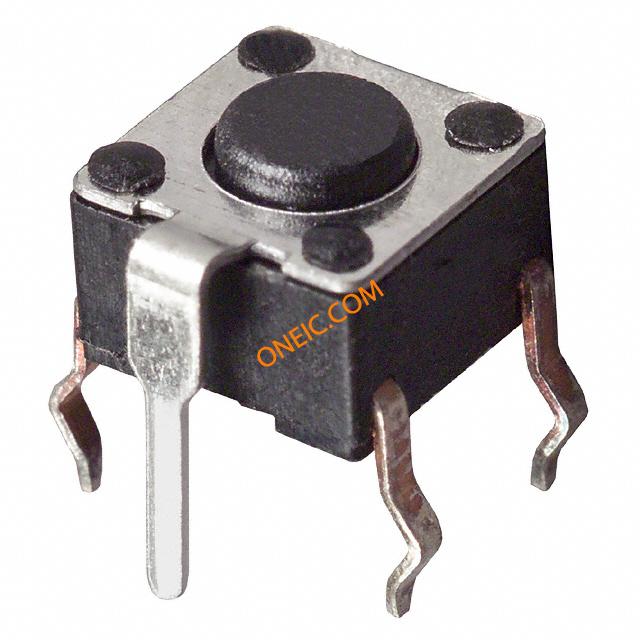

FSM1J tactile switche 系列

Tactile switches with round buttons for PC and surface mount applications

系列图片（6 张）

文档与媒体

FSM1J%20-%20FSM17J.pdf

DDEController?Action=srchrtrv&DocNm=1825955&DocType=Customer+Drawing&DocLang=English

DDEController?Action=srchrtrv&DocNm=1308111-1_SWITCHES_CORE_PROGRAM_CATALOG&DocType=Catalog+Section&DocLang=English&PartCntxt=

DDEController?Action=srchrtrv&DocNm=1825955&DocType=Customer+Drawing&DocLang=English&PartCntxt=1-1825955-8

常见问答

内容由 AI 生成，仅供参考

加载中...

FSM1J tactile switche - 型号列表

共 8 个型号

执行器材料

Polybutylene Terephthalate (PBT)(1)Polyester(1)

工作温度

-35°C ~ 85°C(1)-20°C ~ 70°C(1)

制造商零件编号	库存	价格	产品类别	标准包装数量	电路	开关功能	触点额定值 @ 电压	外形尺寸(长x宽)	包装方式	致动器类型	安装类型	开关行程	操作力	执行器材料	端接样式	执行器方向	执行器距PCB垂直高度	产品特性	照明类型	机械寿命	工作温度	标准包装规格	零件号别名	工厂包装数量	额定电压	最大额定电流	安装样式	类型	交货时间	子类别	RoHS	行业别名
FSM1JAAH Tactile Switches 6MM HT W/ESD TACT SWITCH TE Connectivity	10	¥0.52	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 FSM1JH Tactile Switches 6MM ACTHT W/ESD TACT SWITCH SWITCH TACTILE SPST-NO 0.05A 12V TYCO ALCOSWITCH TACT SWITCH TE Connectivity / Alcoswitch	29908	¥0.37	Tactile Switches	750	SPST-NO	Off-Mom	0.05A @ 12VDC	6.00mm x 6.00mm	Bulk	Standard	Through Hole	0.25mm	160gf	Polybutylene Terephthalate (PBT)	PC Pin	Top Actuated	4.30mm	Grounding Pin	Non-Illuminated	100,000 Cycles	-35°C ~ 85°C	750	1825955-2	750	24 V	50 mA	Through Hole	Switches	-	-	-	-
2 FSM1J SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile OFF (ON) Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Switch Tactile OFF (ON) Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Product Highlights:Switch - MechanicalTactileContact Rating = 50mAOperating Function = Off [On]Not Ganged TE Connectivity	10	¥0.36	-	750	SPST-NO	Off-Mom	0.05A @ 12VDC	6.00mm x 6.00mm	Bulk	Standard	Through Hole	0.25mm	160gf	Polyester	PC Pin	Top Actuated	4.30mm	Grounding Pin	Non-Illuminated	100,000 Cycles	-20°C ~ 70°C	-	-	-	-	-	-	-	365 Days	Switch Tactile	Lead free / RoHS Compliant	1-1437565-5, FSM1J
FSM1JSSMTR Tactile Switch SPST-NO Top Actuated Surface Mount TE Connectivity Alcoswitch Switches	14991	¥3.14	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FSM1JELGTR Tactile Switch SPST-NO Top Actuated Surface Mount TE Connectivity Alcoswitch Switches	3908	¥3.30	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FSM1JELGETR Tactile Switch SPST-NO Top Actuated Surface Mount TE Connectivity Alcoswitch Switches	2587	¥4.16	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FSM1JLH Tactile Switches 6MM H/T PBT BR TACTILE SWITCH W/ESD TE Connectivity / Alcoswitch	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FSM1JMTR ALCOSWITCH - TE CONNECTIVITY	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 1 页
