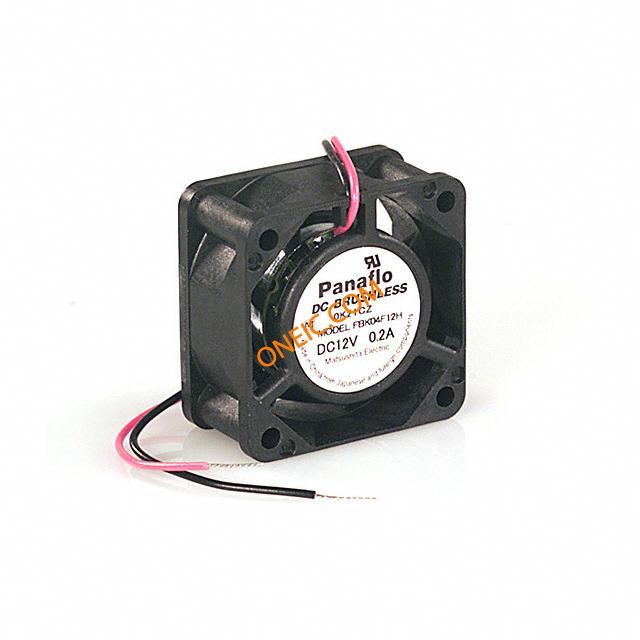

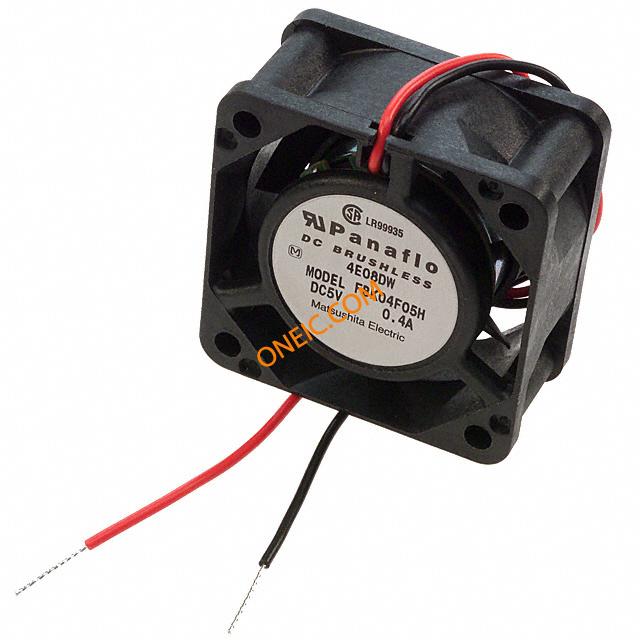

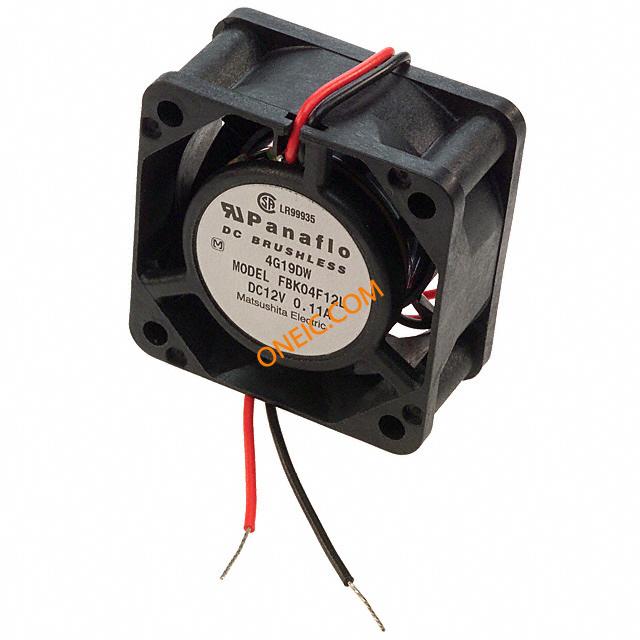

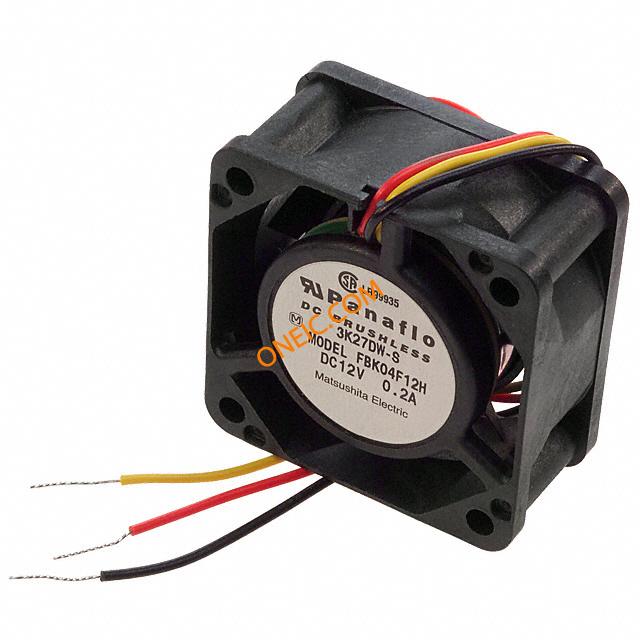

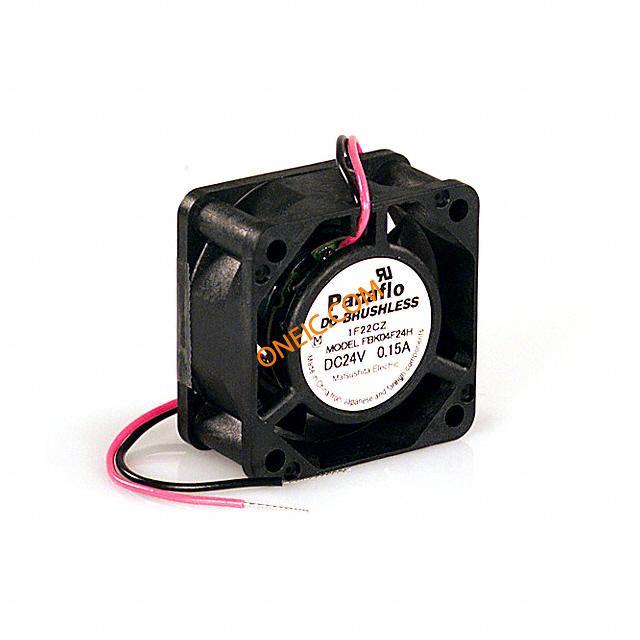

FBK04F fbk 系列
MinebeaMitsumi Inc.各种电压和尺寸的紧凑型DC冷却风扇
MinebeaMitsumi Inc. 的 FBK04F 系列是一款专为空间受限应用设计的紧凑型直流冷却风扇。这些风扇具有不同的电压等级和尺寸，使其适用于各种项目和系统。如果您正在开发嵌入式系统、消费电子产品或其他对尺寸和功耗有严格要求的设备，这些风扇将是不错的选择。值得一提的是，它们在提供足够气流的同时还能保持较低的噪音水平，这对于需要安静运行的设备至关重要。当工程师们需要可靠的冷却解决方案而又不占用太多空间或消耗过多功率时，往往会选用这一系列风扇。它们特别适用于工业自动化、医疗设备和汽车电子产品等需要精确散热管理并最小化占地面积的应用场景。
系列图片（8 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
FBK04F fbk - 型号列表
共 10 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 噪声 | 功率（瓦） | 电压范围 | 额定电压 | 最大额定电流 | RPM | 重量 | 风量 | 风扇类型 | 端接方式 | 轴承类型 | 静压 | 刀片材料 | 框架材料 | 尺寸/外形 | 工作温度 | 交货时间 | 子类别 | RoHS | 欧盟RoHS | 转速 | 输入范围 | 额定功率 | 输出电流 | 深度 | 高度 | 安装类型 | 总长度 | 最大压力 | 其他名称 | 产品特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DC Fan Ball Bearing 12V 0.17A 2.04W 9500RPM 9.2CFM 42dB Flange Mount FAN 12VDC 2.04W PANAFLOW FBK SRS NMB Technologies Corporation | 0 | - | 150 | 42 dB(A) | 2.04W | 7 ~ 13.8VDC | 12VDC | 0.170A | 9500 RPM | 0.088 lb (39.92g) | 9.2 CFM (0.260m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.472 in H2O (117.6 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | 365 Days | Blowers and Fans | Lead free / RoHS Compliant | Supplier Unconfirmed | Clockwise | 7 to 13.8 | 2.04 | 0.17 | 40 | 20 | Flange Mount | 40 | 117.7Pa | - | - | |
 DC Fan Ball Bearing 12V 0.075A 0.9W 4700RPM 3.9CFM 23dB Flange Mount FAN 12VDC .90W PANAFLOW FBK SRS NMB Technologies Corporation | 0 | - | 150 | 23 dB(A) | 0.90W | 7 ~ 13.8VDC | 12VDC | 0.075A | 4700 RPM | 0.088 lb (39.92g) | 3.9 CFM (0.110m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.098 in H2O (24.5 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | 365 Days | Blowers and Fans | Lead free / RoHS Compliant | Supplier Unconfirmed | Clockwise | 7 to 13.8 | 0.9 | 0.075 | 40 | 20 | Flange Mount | 40 | 24.5Pa | - | - | |
 | 0 | - | 1 | 42 dB(A) | 2.40W | 14 ~ 27.6VDC | 24VDC | 0.100A | 9500 RPM | 0.088 lb (39.92g) | 9.2 CFM (0.260m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.472 in H2O (117.6 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | 365 Days | Blowers and Fans | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 0 | - | 150 | 24 dB(A) | 0.60W | 4.5 ~ 6VDC | 5VDC | 0.120A | 4700 RPM | 0.088 lb (39.92g) | 3.9 CFM (0.110m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.098 in H2O (24.5 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 0 | - | 150 | 33 dB(A) | 1.40W | 4.5 ~ 6VDC | 5VDC | 0.280A | 7500 RPM | 0.088 lb (39.92g) | 6.7 CFM (0.190m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.260 in H2O (64.8 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | 365 Days | Blowers and Fans | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 0 | - | 150 | 33 dB(A) | 2.21W | 14 ~ 27.6VDC | 24VDC | 0.092A | 7500 RPM | 0.088 lb (39.92g) | 6.7 CFM (0.190m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.260 in H2O (64.8 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | 365 Days | Blowers and Fans | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 0 | - | 150 | 32 dB(A) | 1.80W | 7 ~ 13.8VDC | 12VDC | 0.150A | 7500 RPM | 0.088 lb (39.92g) | 6.7 CFM (0.190m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.260 in H2O (64.8 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | 365 Days | Blowers and Fans | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 0 | - | 150 | 33 dB(A) | 1.80W | 7 ~ 13.8VDC | 12VDC | 0.150A | 7500 RPM | 0.088 lb (39.92g) | 6.7 CFM (0.190m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.260 in H2O (64.8 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | 365 Days | Blowers and Fans | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | P11081 | Locked Rotor Sensor | |
 | 0 | - | 150 | 42 dB(A) | 2.04W | 7 ~ 13.8VDC | 12VDC | 0.170A | 9500 RPM | 0.088 lb (39.92g) | 9.2 CFM (0.260m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.472 in H2O (117.6 Pa) | Plastic | Plastic | Square - 40mm L x 40mm H x 20mm W | 14 ~ 158°F (-10 ~ 70°C) | - | - | - | - | - | - | - | - | - | - | - | - | - | P9994 | Locked Rotor Sensor | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
