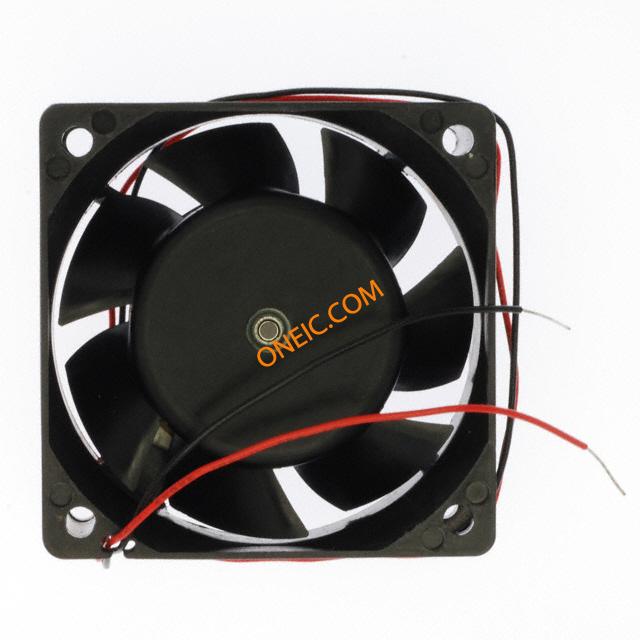

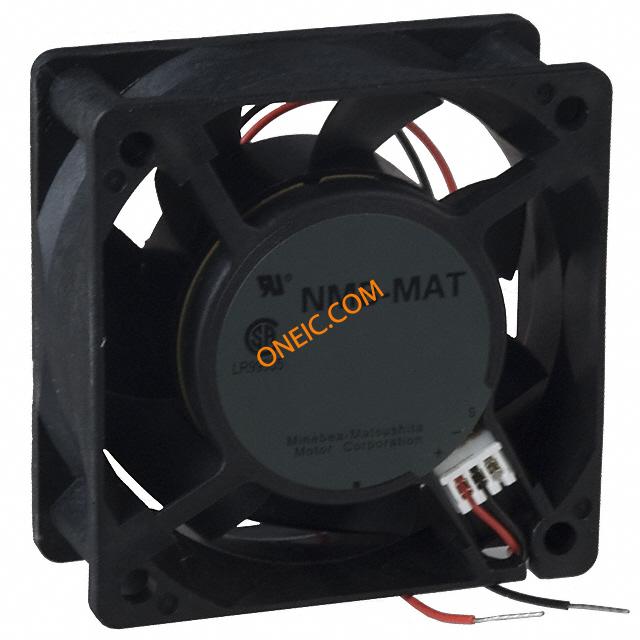

FBA06A fba 系列
MinebeaMitsumi Inc.紧凑型60mm直流风扇，采用水波轴承，实现高效散热
MinebeaMitsumi的FBA06A系列是一款紧凑型60mm直流风扇，专为高效的冷却应用设计。这些风扇采用水波轴承，提供了出色的耐用性和平稳运行性能。如果您正在开发小型机箱设备，例如工业控制面板、路由器或游戏PC，由于其尺寸和性能，这些风扇非常适合。
值得注意的是，水波轴承能够处理更高的转速而不会产生过多的噪音或振动。这使得它们特别适用于需要安静运行但又需要高气流的环境。工程师通常会选择这种风扇，因为它们提供了一个可靠且占用空间小的冷却解决方案。此外，水波轴承减少了维护需求，因为它比传统的球轴承拥有更少的易磨损部件。总体而言，FBA06A系列在性能和效率之间达到了平衡，使其成为广泛冷却应用的理想选择。
系列图片（8 张）
文档与媒体
常见问答
FBA06A fba - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 噪声 | 额定电压 | 端接方式 | 轴承类型 | 工作温度 | 标准包装数量 | RoHS | 功率（瓦） | 电压范围 | 最大额定电流 | RPM | 重量 | 风量 | 风扇类型 | 静压 | 尺寸/外形 | 额定寿命 | 欧盟RoHS | 转速 | 额定功率 | 输出电流 | 深度 | 高度 | 安装类型 | 总长度 | 交货时间 | 子类别 | 输入范围 | 最大压力 | 产品特性 | 行业别名 | 其他名称 | 适用产品/相关产品 | 壳体材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DC Fan Hydro Wave Bearing 24V 0.06A 1.44W 3200RPM 14.1CFM 24dB Flange Mount NMB Technologies Corporation | 0 | - | 24 | 24 | Lead Wire | Hydro Wave | 70 | - | - | - | - | - | - | - | - | - | - | - | - | Compliant | Counter Clockwise | 1.44 | 0.06 | 60 | 25.5 | Flange Mount | 60 | - | - | 14 to 27.6 | 0.12inH2O | - | - | - | - | - | |
 DC Fan Hydro Wave Bearing 12V 0.13A 1.56W 3700RPM 16.6CFM 28dB Flange Mount FAN 12VDC 1.44W 60MM FAB HYDRO NMB Technologies Corporation | 0 | - | 28 dB | 12VDC | Lead Wire | Hydro Wave | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 1.44W | 7 ~ 13.8VDC | 0.120A | 3700 RPM | 0.198 lb (89.81g) | 16.6 CFM (0.470m³/min) | Tubeaxial | 0.155 in H2O (38.6 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | Compliant | Clockwise | 1.56 | 0.13 | 60 | 25.5 | Flange Mount | 60 | 365 Days | Blowers and Fans | 7 to 13.8 | 3.95inH2O | - | - | - | - | - | |
 DC Fan Hydro Wave Bearing 12V 0.1A 1.2W 3200RPM 14.1CFM 24dB Flange Mount FAN 12VDC W 60MM HYDROWAVE NMB Technologies Corporation | 0 | - | 24 dB | 12VDC | Lead Wire | Hydro Wave | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 1.20W | 7 ~ 13.8VDC | 0.100A | 3200 RPM | 0.198 lb (89.81g) | 14.1 CFM (0.399m³/min) | Tubeaxial | 0.122 in H2O (30.4 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | Compliant | Counter Clockwise | 1.2 | 0.1 | 60 | 25.5 | Flange Mount | 60 | 365 Days | Blowers and Fans | 7 to 13.8 | 0.12inH2O | Speed Sensor (Tach) | FBA06A 12L1BX | P11034 | 2410SB-04W-B29-B50 | - | |
 DC Fan Hydro Wave Bearing 12V 0.155A 1.86W 4200RPM 19.1CFM 32dB Flange Mount FAN 12VDC 1.86W 60MM FAB HYDRO NMB Technologies Corporation | 59 | 6: ¥95.20 | - | 32 dB | 12VDC | Lead Wire | Hydro Wave | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 1.86W | 7 ~ 13.8VDC | 0.155A | 4200 RPM | 0.198 lb (89.81g) | 19.1 CFM (0.541m³/min) | Tubeaxial | 0.204 in H2O (51.0 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | Compliant | Clockwise | 1.86 | 0.155 | 60 | 25.5 | Flange Mount | 60 | 365 Days | Blowers and Fans | - | - | - | - | - | - | Polybutylene Terephthalate |
 DC Fan Hydro Wave Bearing 24V 85A 2.04W 4200RPM 19.1CFM 32dB Flange Mount FAN 24VDC 2.04W 60MM FAB HYDRO NMB Technologies Corporation | 44 | 1: ¥40.868 | - | 32 dB | 24VDC | 2 Wire Leads | Hydro Wave | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 2.04W | 14 ~ 27.6VDC | 0.085A | 4200 RPM | 0.198 lb (89.81g) | 19.1 CFM (0.541m³/min) | Tubeaxial | 0.204 in H2O (51.0 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | Compliant | Clockwise | 2.04 | 85 | 60 | 25.4 | Flange Mount | 60 | 365 Days | Blowers and Fans | 14 to 27.6 | 51Pa | - | FBA06A 24H1A | - | - | - |
DC Fan Hydro Wave Bearing 24V 0.105A 2.16W 3700RPM 16.6CFM 28dB Flange Mount FAN 24VDC 1.68W 60MM FAB HYDRO NMB Technologies Corporation | 0 | - | 28 dB | 24VDC | Lead Wire | Hydro Wave | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 1.68W | 14 ~ 27.6VDC | 0.070A | 3700 RPM | 0.198 lb (89.81g) | 16.6 CFM (0.470m³/min) | Tubeaxial | 0.155 in H2O (38.6 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | Compliant | Clockwise | 2.16 | 0.105 | 60 | 25.5 | Flange Mount | 60 | 365 Days | Blowers and Fans | 14 to 27.6 | 3.95inH2O | - | - | - | - | - | |
 DC Fan Hydro Wave Bearing 12V 0.21A 2.52W 4550RPM 19.1CFM 37dB Flange Mount FAN 12VDC 2.52W 60MM FAB HYDRO NMB Technologies Corporation | 0 | - | 58 dB | 12VDC | Lead Wire | Hydro Wave | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 2.52W | 7 ~ 13.8VDC | 0.210A | 4550 RPM | 0.198 lb (89.81g) | 20.5 CFM (0.580m³/min) | Tubeaxial | 0.233 in H2O (58.0 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | Compliant | Clockwise | 2.52 | 0.21 | 60 | 25.5 | Flange Mount | 60 | 365 Days | Blowers and Fans | 7 to 13.8 | 6inH2O | - | - | - | - | - | |
 | 0 | - | 58 dB | 12VDC | 3 Wire Leads | Hydro-wave (HWB) | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 2.52W | 7 ~ 13.8VDC | 0.210A | 4550 RPM | 0.198 lb (89.81g) | 20.5 CFM (0.580m³/min) | Tubeaxial | 0.233 in H2O (58.0 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | - | - | - | - | - | - | - | - | 365 Days | Not Specified | - | - | Locked Rotor Sensor | - | P9995 | - | - | |
 DC Fan Hydro Wave Bearing 24V 0.07A 1.68W 3200RPM 14.1CFM 24dB Flange Mount FAN 24VDC 1.44W 60MM FAB HYDRO NMB Technologies Corporation | 10 | 1: ¥40.868 | - | 24 dB | 24VDC | Lead Wire | Hydro Wave | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 1.44W | 14 ~ 27.6VDC | 0.060A | 3200 RPM | 0.198 lb (89.81g) | 14.1 CFM (0.399m³/min) | Tubeaxial | 0.122 in H2O (30.4 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | Compliant | Clockwise | 1.68 | 0.07 | 60 | 25.4 | Flange Mount | 60 | - | - | 14 to 27.6 | 30.4Pa | - | - | - | - | - |
DC Fan Hydro Wave Bearing 12V 0.11A 1.32W 3200RPM 14.1CFM 24dB Flange Mount FAN 12VDC 1.2W 60MM FAB HYDRO NMB Technologies Corporation | 0 | - | 24 dB | 12VDC | Lead Wire | Hydro Wave | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 1.20W | 7 ~ 13.8VDC | 0.100A | 3200 RPM | 0.198 lb (89.81g) | 14.1 CFM (0.399m³/min) | Tubeaxial | 0.122 in H2O (30.4 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | Compliant | Clockwise | 1.32 | 0.11 | 60 | 25.5 | Flange Mount | 60 | 365 Days | Blowers and Fans | 7 to 13.8 | 3.1inH2O | - | - | - | - | - | |
| 18 | 11: ¥48.3276 | - | 32 dB | 12VDC | 3 Wire Leads | Hydro-wave (HWB) | 14 ~ 158°F (-10 ~ 70°C) | 100 | Lead free / RoHS Compliant | 1.86W | 7 ~ 13.8VDC | 0.155A | 4200 RPM | 0.198 lb (89.81g) | 19.1 CFM (0.541m³/min) | Tubeaxial | 0.204 in H2O (51.0 Pa) | Square - 60mm L x 60mm H x 25.5mm W | 50000 hrs @ 40°C | - | - | - | - | - | - | - | - | 365 Days | Blowers and Fans | - | - | Speed Sensor (Tach) | FBA06A 12H1BX | - | - | - |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
