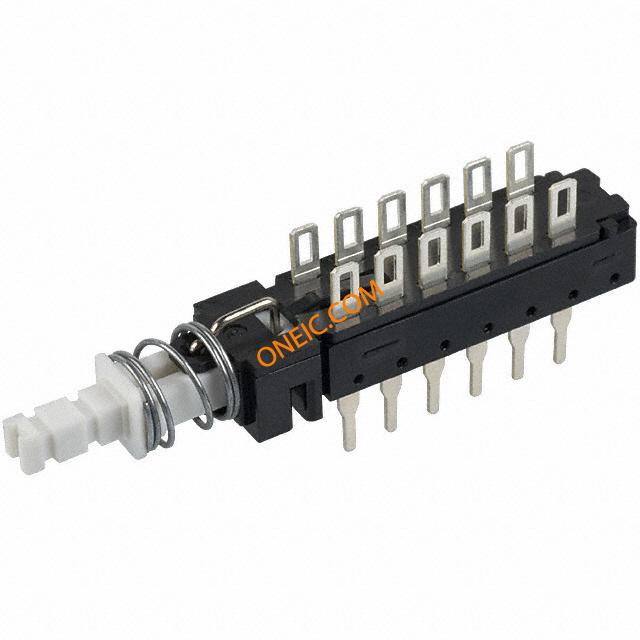

F4UEE switche 系列
C&K Components, Inc.4PDT pushbutton switches with alternate contacts for panel mounting
系列图片（3 张）
文档与媒体
常见问答
F4UEE switche - 型号列表
共 10 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 额定功率 | 额定电压 | 最大额定电流 | 安装类型 | 接触镀层 | 电气寿命 | 工作温度 | RoHS | 电路 | 开关功能 | 包装方式 | 致动器类型 | 端接样式 | 按钮/帽颜色 | 类型 | 产品特性 | 机械寿命 | 最小起订量 | 单位包装 | 欧盟RoHS | 最小输入电压 | 深度 | 高度 | 端子类型 | 触头材料 | 总长度 | 执行器材料 | 按钮样式/尺寸 | 开关驱动电平 | 外壳与棱镜材料 | 功能 | 系列 | 重量（g） | 触点形式 | 安装样式 | 工厂包装数量 | 材料阻燃等级 | 密封等级 | 零件号别名 | 额定交流电压 | 直流击穿电压（标称） | 壳体材料 | 照明类型及颜色 | 结工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

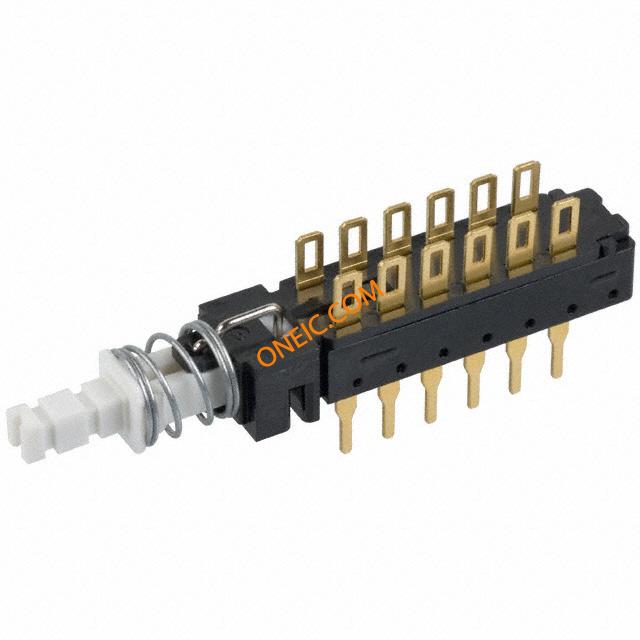

 F4UEEAU Switch Push Button 4PDT Plunger 0.04A 50VAC 50VDC 1VA Alternate Contact Solder Lug/PC Pins Panel Mount/Through Hole Pushbutton c&k components | 1345 | ¥31.75 | - | Bulk | 1 VA | 50 V | 0.04 A | Panel Mount/Through Hole | Gold/Nickel | 100000 | -40 to 70 °C | - | - | - | - | - | - | - | - | - | - | 100 | 1 | Compliant | 50 | 9.8 | 14.5 | Solder Lug/PC Pins | Bimetal Brass | 42.4 | Polyester | Plunger | 4PDT | N/A/(Polycarbonate|Polyester) | Alternate Contact | - | - | - | - | - | - | - | - | - | - | - | - | - |
F4UEETBAU Pushbutton Switches Pushbutton Switch Push Button 4PDT Plunger 0.04A 50VAC 50VDC 1VA Alternate Contact Solder Lug/PC Pins Pushbutton SWITCH PUSH 4PDT 0.04A 50V C&K Components | 23 | ¥29.95 | - | 1 | 1 VA | 50V | 40mA (AC), 10mA (DC) | Right Angle | Gold/Nickel | 100,000 Cycles | -40°C ~ 70°C | Lead free / RoHS Compliant | 4PDT | On-On | Bulk | Plunger for Cap | PC Pin | White | Standard | RTV Adhesive Sealant on Terminals | 100,000 Cycles | 100 | 1 | Compliant | 50 | 54.4 | 14.5 | Solder Lug/PC Pins | Bimetal Brass | 9.8 | Polyester | Plunger | 4PDT | N/A/(Polycarbonate|Polyester) | Alternate Contact | F | - | - | - | 1 | - | - | - | - | - | - | - | - |
 | 135 | ¥21.17 | - | 1 | 50 VA | 125V | 500mA (AC/DC) | Through Hole, Right Angle | Silver | 100,000 Cycles | -40°C ~ 70°C | RoHS Compliant | 4PDT | On-On | Bulk | Plunger for Cap | PC Pin | White | Standard | RTV Adhesive Sealant on Terminals | 100,000 Cycles | - | - | - | - | - | - | - | - | - | - | - | - | - | - | F | - | 4PDT | Through Hole | - | - | - | 120051 | - | - | - | - | - |
 F4UEE Pushbutton Switches PB SWITCH Switch Push Button 4PDT Plunger 0.5A 125VAC 125VDC 50VA Alternate Contact Solder Lug/PC Pins Pushbutton SWITCH PUSH 4PDT 0.5A 125V C&K Components | 1250 | ¥13.97 | Pushbutton Switches | 1 | 50 VA | 125V | 500mA (AC/DC) | Right Angle | Silver | 100,000 Cycles | -40°C ~ 70°C | Lead free / RoHS Compliant | 4PDT | On-On | Bulk | Plunger for Cap | PC Pin | White | Standard | Button/cap ordered separately | 100,000 Cycles | 1200 | 1 | Compliant | 125 | 54.4 mm | 14.5 mm | Solder Lug/PC Pins | Bimetal Brass | 9.8 mm | Polyester | Plunger | 4PDT | N/A/(Polycarbonate|Polyester) | Alternate Contact | F | 4.40000 | 4PDT | Through Hole | 1 | UL 94 V-0 | Unsealed | - | 125V VAC | 125V VDC | Polycarbonate | Not Required | 70C |

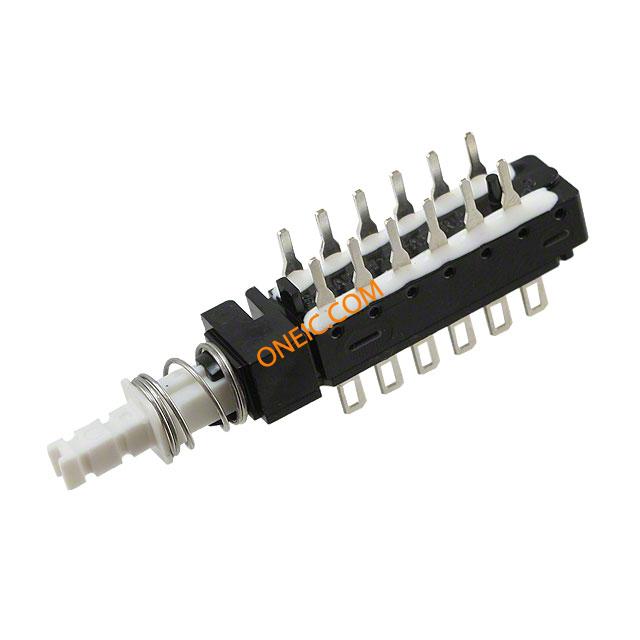

F4UEETB Switch Push Button 4PDT Plunger 0.5A 125VAC 125VDC 50VA Alternate Contact Solder Lug/PC Pins Pushbutton SWITCH PUSH 4PDT 0.5A 125V C&K Components | 225 | ¥12.89 | - | 1 | 50 | 125V | 500mA (AC/DC) | Right Angle | Silver | 100,000 Cycles | -40°C ~ 70°C | Lead free / RoHS Compliant | 4PDT | On-On | Bulk | Plunger for Cap | PC Pin | White | Standard | RTV Adhesive Sealant on Terminals | 100,000 Cycles | 100 | 1 | Compliant | 125 | 54.4 | 14.5 | Solder Lug/PC Pins | Bimetal Brass | 9.8 | Polyester | Plunger | 4PDT | N/A/(Polycarbonate|Polyester) | Alternate Contact | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 49 | ¥42.76 | Pushbutton Switches | 1 | 1 VA | 50V | 40mA (AC), 10mA (DC) | Through Hole, Right Angle | Gold | 100,000 Cycles | -40°C ~ 70°C | RoHS Compliant | 4PDT | On-On | Bulk | Plunger for Cap | PC Pin | White | Standard | Button/cap ordered separately | 100,000 Cycles | - | - | - | - | - | - | - | - | - | - | - | - | - | - | F | - | 4PDT | Through Hole | - | UL 94 V-0 | Unsealed | - | - | - | - | - | - |
F4UEEAGF0201C01 C&K Components (Schadow) | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 6.80000 | - | - | - | - | - | - | - | - | - | - | - | |
F4UEEAGF0202C01 C&K Components (Schadow) | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 6.90000 | - | - | - | - | - | - | - | - | - | - | - | |
F4UEEAGF0204C01 C&K Components (Schadow) | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 6.83400 | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
