cigen-EVFL170EN

EVFL170EN resistor 系列

Ohmite Manufacturing Company

Ohmite Manufacturing Company

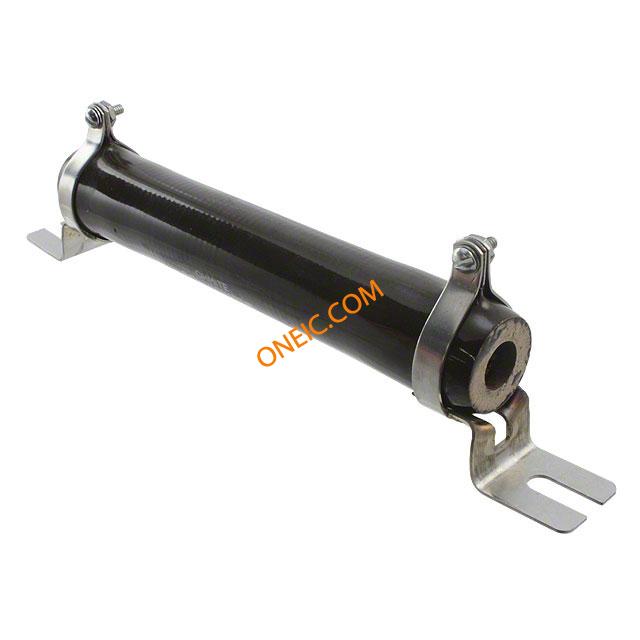

High-power chassis mount and lug resistors for diverse applications

系列图片（1 张）

文档与媒体

EVF%20Series.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

EVFL170EN resistor - 型号列表

共 8 个型号

制造商零件编号	库存	价格	产品类别	标准包装数量	容差	功率（瓦）	电阻值（欧姆）	包装方式	引脚样式	封装形式	安装特性	尺寸/外形	涂层、外壳类型	产品特性	成分	温度系数	标准包装规格
EVFL170EN47RJE RES 47 OHM 160W 5% WW LUG RES CHAS MNT 47 OHM 5% 160W Ohmite	17	¥274.54	-	1	±5%	160W	47	Bulk	Solder Lugs	Radial, Tubular	Brackets, Termination	1.102" Dia x 6.614" L (28.00mm x 168.00mm)	Vitreous Enamel Coated	Flame Retardant Coating	Wirewound	±260ppm/°C	-
EVFL170EN100JE RES 100 OHM 160W 5% WW LUG RES CHAS MNT 100 OHM 5% 160W Resistor Other Mount Ohmite	10	¥241.70	-	1	±5%	160W	100	Bulk	Solder Lugs	Radial, Tubular	Brackets, Termination	1.102" Dia x 6.614" L (28.00mm x 168.00mm)	Vitreous Enamel Coated	Flame Retardant Coating	Wirewound	±260ppm/°C	1
EVFL170EN470JE RES 470 OHM 160W 5% WW LUG RES CHAS MNT 470 OHM 5% 160W Ohmite	25	¥332.86	-	1	±5%	160W	470	Bulk	Solder Lugs	Radial, Tubular	Brackets, Termination	1.102" Dia x 6.614" L (28.00mm x 168.00mm)	Vitreous Enamel Coated	Flame Retardant Coating	Wirewound	±260ppm/°C	-
EVFL170EN4K7E RES 4.7K OHM 160W 5% WW LUG Ohmite	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EVFL170EN4R7JE RES 4.7 OHM 160W 5% WW LUG RES CHAS MNT 4.7 OHM 5% 160W Resistor Other Mount Ohmite	10	¥293.11	-	1	±5%	160W	4.7	Bulk	Solder Lugs	Radial, Tubular	Brackets, Termination	1.102" Dia x 6.614" L (28.00mm x 168.00mm)	Vitreous Enamel Coated	Flame Retardant Coating	Wirewound	±400ppm/°C	1
EVFL170EN1K0JE RES 1K OHM 160W 5% WW LUG RES CHAS MNT 1K OHM 5% 160W Resistor Other Mount Ohmite	23	¥332.86	-	1	±5%	160W	1k	Bulk	Solder Lugs	Radial, Tubular	Brackets, Termination	1.102" Dia x 6.614" L (28.00mm x 168.00mm)	Vitreous Enamel Coated	Flame Retardant Coating	Wirewound	±260ppm/°C	1
EVFL170EN4K7JE RES 4.7K OHM 160W 5% WW LUG RES CHAS MNT 4.7K OHM 5% 160W Resistor Other Mount Ohmite	15	¥293.11	-	1	±5%	160W	4.7k	Bulk	Solder Lugs	Radial, Tubular	Brackets, Termination	1.102" Dia x 6.614" L (28.00mm x 168.00mm)	Vitreous Enamel Coated	Flame Retardant Coating	Wirewound	±260ppm/°C	1
EVFL170EN10RJE RES 10 OHM 160W 5% WW LUG RES CHAS MNT 10 OHM 5% 160W Resistor Other Mount Ohmite	10	¥297.36	-	1	±5%	160W	10	Bulk	Solder Lugs	Radial, Tubular	Brackets, Termination	1.102" Dia x 6.614" L (28.00mm x 168.00mm)	Vitreous Enamel Coated	Flame Retardant Coating	Wirewound	±400ppm/°C	1
