ESDLC5V0 esd suppressors / tvs diode 系列
Micro Commercial Components Corp.5V ESD抑制器和TVS二极管，用于电路保护
Micro Commercial Components Corp. 的ESDLC5V0系列包括专门用于保护电路免受电压瞬变和静电放电事件的ESD（静电放电）抑制器和TVS（瞬态电压抑制）二极管。这些组件在广泛的各种电子设备中至关重要，特别是在需要对瞬态电压和静电放电进行稳健保护的应用中。
如果你正在开发消费电子产品、工业控制系统或其他可能暴露于静电放电或电压尖峰等环境因素的设备，这些ESDLC5V0组件很可能会成为你设计的一部分。它们特别适用于保护微控制器、IC和其他敏感组件免受突然电压尖峰或静电放电造成的损坏。
值得注意的是，它们具有紧凑的尺寸和低箝位电压，使其非常适合空间受限的应用。当工程师们需要可靠的保护而又不希望增加太多体积时，往往会选用这些组件。此外，它们快速的响应时间确保可以在瞬态电压造成损害之前迅速箝位。
系列图片（13 张）
文档与媒体
常见问答
ESDLC5V0 esd suppressors / tvs diode - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | RoHS | 供电电压 | 击穿电压 | 包装方式 | 封装形式 | 端接样式 | 工作温度 | 其他名称 | 标准包装数量 | 工厂包装数量 | 通道数量 | 钳位电压 | 电容 @ Vr, F | 电源线保护 | 电容 @ 频率 | 安装类型 | 供应商器件封装 | 类型 | 系列 | 极性 | 应用 | 制造商全称 | ESD保护 | 峰值脉冲功率 | 平均正向功率 | 峰值脉冲电流（8/20µs） | 峰值脉冲电流（10/1000µs） | 单向通道数 | 通道数 | 电容 | 双向通道数 | 总长度 | 位数 | 配置 | 端口方向 | 最大功耗 | 工作电压 | 重量 | 欧盟RoHS | 额定电压 | 元件数量 | 反向漏电流 @ Vr | 宽度 | 包装数量 | 外壳尺寸-插件 | 印刷电路板数量 | 最大额定电流 | 最小供电电压 | 机械寿命 | 抗辐射加固 | 漏电流 | 深度 | 高度 | 安装样式 | 锁定特性 | 结工作温度 | 标准封装名称 | 断态电压 | 引脚样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

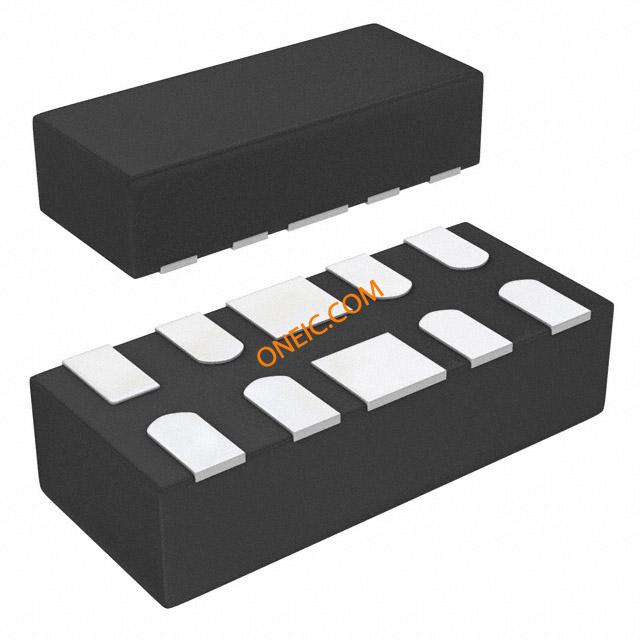

 ESD Suppressors 5V, 1.0uA TVS DIODE 5VWM 28VC DFN10 ESD Suppressors / TVS Diodes 5V, 1.0uA Micro Commercial Components (MCC) | 10 | 3000: ¥2.3038 | - | RoHS Compliant | 5V (Max) | 6 V | Reel | DFN-10 | SMD/SMT | - 55 C to + 150 C | ESDLC5V0DFN10-TPMSCT | 3,000 | 3000 | 4 Channel | 28V | 0.5 pF | Yes | 0.5pF @ 1MHz | Surface Mount | 10-DFN (2.5x1) | Zener | ESDLC5 | Bidirectional | General Purpose | Micro Commercial Components (MCC) | 15 kV | 150W | 150 W | 5 A | 5A (8/20µs) | - | 2 Channels | 0.5 pF | 4 | - | - | - | - | 150 W | - | - | - | - | - | - | - | - | - | - | 1 uA | 5 V | New At Mouser | - | - | - | - | - | - | - | - | - | - |
 ESD Suppressors Sgle 5.0V TVS DIODE 5VWM 32VC SOD323 ESD Suppressor TVS ?15KV 2-Pin SOD-323 T/R ESD Suppressors / TVS Diodes Sgle 5.0V Micro Commercial Components (MCC) | 1831 | 1: ¥4.896 | - | RoHS Compliant | 5V | 6 V | Reel | SOD-323 | SMD/SMT | - 55 C to + 150 C | ESDLC5V0D3-TPMSCT | 3,000 | - | - | 32V | - | No | 5pF @ 1MHz | Surface Mount | SOD-323 | Zener | ESDLC5 | - | General Purpose | - | - | 350W | - | - | 21A (8/20µs) | 1 | 1 Channel | 5 pF | - | 1.8 mm | 2 | Single | Uni-Directional | - | 5V | 0.000141 oz | - | - | - | - | - | - | - | - | - | - | - | No | 5uA | 1.35 mm | 1 mm | Surface Mount | TVS | 150C | - | - | - |
ESD Suppressors Dual 5.0V TVS DIODE 5VWM 32VC SOD323 ESD Suppressors / TVS Diodes Dual 5.0V Micro Commercial Components (MCC) | 2735 | 1: ¥4.896 | - | RoHS Compliant | 5V | 6 V | Reel | SOD-323 | SMD/SMT | - 55 C to + 150 C | ESDLC5V0D3B-TPMSCT | 3,000 | 3000 | 2 Channel | 32V | 5 pF | No | 5pF @ 1MHz | Surface Mount | SOD-323 | Zener | ESDLC5 | Unidirectional | General Purpose | Micro Commercial Components (MCC) | 40 kV | 350W | 350 W | 21 A | 21A (8/20µs) | - | 2 Channels | 5 pF | 1 | - | - | - | - | - | 5 V | 0.000141 oz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

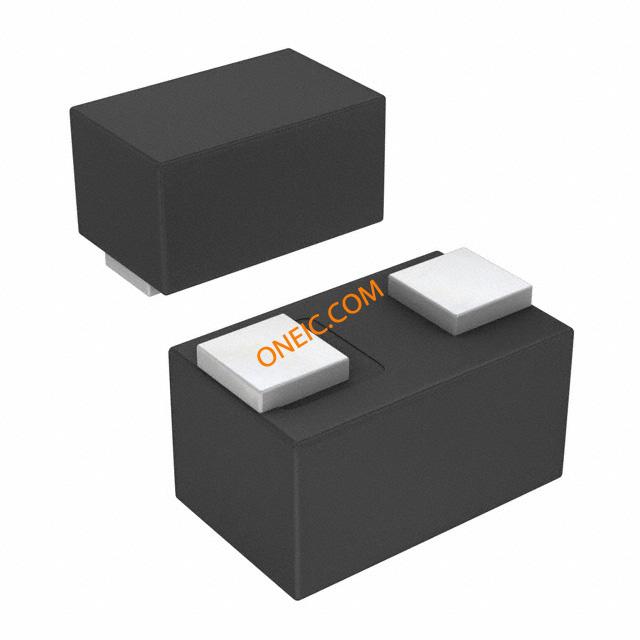

 ESD Suppressors Dual 5.0V ESD Suppressor TVS ±25KV 2-Pin SOD-882 T/R TVS DIODE 5VWM 12.5VC SOD882 ESD Suppressors / TVS Diodes Dual 5.0V Micro Commercial Components (MCC) | 12355 | 1: ¥3.332 | - | RoHS Compliant | 5V (Max) | 8 V | Reel | SOD-882 | SMD/SMT | - 55 C to + 150 C | ESDLC5V0LPB-TPMSCT | 10,000 | 5000 | 1 Channel | 12.5V | 12 pF | No | 12pF @ 1MHz | Surface Mount | SOD-882 | TVS | ESDLC5 | Bidirectional | General Purpose | Micro Commercial Components (MCC) | ±25@Air Gap/±25@Contact Disc | - | 100 mW | 5 A | - | - | 2 Channels | 12 pF | 1 | 1.05(Max) | 2 | Single | Bi-Directional | 100 mW | - | - | Compliant | 5 | 1 | 0.1 | 0.65(Max) | SOD-882 | 0.48(Max) | 2 | - | - | - | - | - | - | - | - | - | - | SOD-882 | 5V (Max) | No Lead |
 ESD Suppressor TVS ±15KV 3-Pin SOT-723 T/R TVS DIODE 5VWM 20VC SOT23 ESD Suppressors TVS DIODE 5V 110W 2CH UNI SOT23 ESD Suppressors / TVS Diodes TVS DIODE 5V 110W 2CH UNI SOT23 Micro Commercial Components | 10 | 1: ¥0.8813 | - | Lead free / RoHS Compliant | 5V (Max) | 5.6V | Tape and Reel | SOT-723 | SMD/SMT | -55°C ~ 150°C | ESDLC5V0T7-TPMSCT | 10,000 | 10000 | 2 Channel | 20V | 1.4 pF | No | 2.8pF @ 1MHz | Surface Mount | SOT-723 | TVS | ESDLC5 | Unidirectional | General Purpose | Micro Commercial Components (MCC) | ±15@Air Gap/±8@Contact Disc | 110W | 110 W | 5 A | 5A (8/20µs) | 2 | - | - | - | 1.3(Max) | 3 | Dual Common Anode | Uni-Directional | - | - | - | Compliant | 5 | 2 | 1 | 0.85(Max) | SOT-723 | 0.43(Max) | 3 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 TVS DIODE 5V 80W 1CH BI SOD923 TVS DIODE 5VWM SOD923 ESD Suppressors 10mA, 5V ESD Suppressors / TVS Diodes 10mA, 5V Micro Commercial Co | 3833 | 1: ¥4.08 | - | Lead free / RoHS Compliant | 5V (Max) | 5.6V | Tape & Reel (TR) | SOD-923 | SMD/SMT | -55°C ~ 150°C | ESDLC5V0D9B-TPMSCT | 8,000 | 8000 | 1 Channel | - | 2.1 pF | No | 2.1pF @ 1MHz | Surface Mount | SOD-923 | Zener | ESDLC5 | Bidirectional | General Purpose | Micro Commercial Components (MCC) | 15 kV | 80W | 80 W | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
TVS DIODE 5V 100W 1CH UNI SOD923 TVS DIODE 5VWM 9.8VC SOD923 ESD Suppressors 10mA, 5V ESD Suppressors / TVS Diodes 10mA, 5V Micro Commercial Co | 154 | 140: ¥0.3705 | - | Lead free / RoHS Compliant | 5V (Max) | 5.4V | Tape & Reel (TR) | SOD-923 | SMD/SMT | -55°C ~ 150°C | ESDLC5V0D9-TPMSCT | 8,000 | 5000 | 1 Channel | 9.8V | 0.5 pF | No | 0.5pF @ 1MHz | Surface Mount | SOD-923 | Zener | ESDLC5 | Unidirectional | General Purpose | Micro Commercial Components (MCC) | 8 kV | 100W | 100 W | 1 A | 1A (8/20µs) | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 TVS DIODE 5V 125W 2CH UNI SOT523 TVS DIODE 5VWM 20VC SOT523 ESD Suppressors 500W, 5V ESD Suppressors / TVS Diodes 500W, 5V Micro Commercial Co | 5219 | 1: ¥4.284 | - | Lead free / RoHS Compliant | 5V (Max) | 5.6V | Tape & Reel (TR) | SOT-523 | SMD/SMT | -55°C ~ 150°C | ESDLC5V0T5-TPMSCT | 3,000 | 3000 | 2 Channel | 20V | 1.4 pF | No | 1.4pF @ 1MHz | Surface Mount | SOT-523 | Zener | ESDLC5 | Unidirectional | General Purpose | Micro Commercial Components (MCC) | 8 kV | 125W | 125 W | 5 A | 5A (8/20µs) | 2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 TVS DIODE 5V 500W 2CH UNI SOT23 TVS DIODE 5VWM 10VC SOT23 ESD Suppressors 500W, 5V ESD Suppressors / TVS Diodes 500W, 5V Micro Commercial Co | 10 | 2100: ¥1.7748 | - | Lead free / RoHS Compliant | 5V (Max) | 6.2V | Tape & Reel (TR) | TO-236-3, SC-59, SOT-23-3 | SMD/SMT | -55°C ~ 125°C | ESDLC5V0T2-TPMSCT | 3,000 | 3000 | 1 Channel | 10V | 3 pF | No | 3pF @ 1MHz | Surface Mount | SOT-23 | Zener | ESDLC5 | Unidirectional | General Purpose | Micro Commercial Components (MCC) | 8 kV | 500W | 500 W | 5 A | 5A (8/20µs) | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

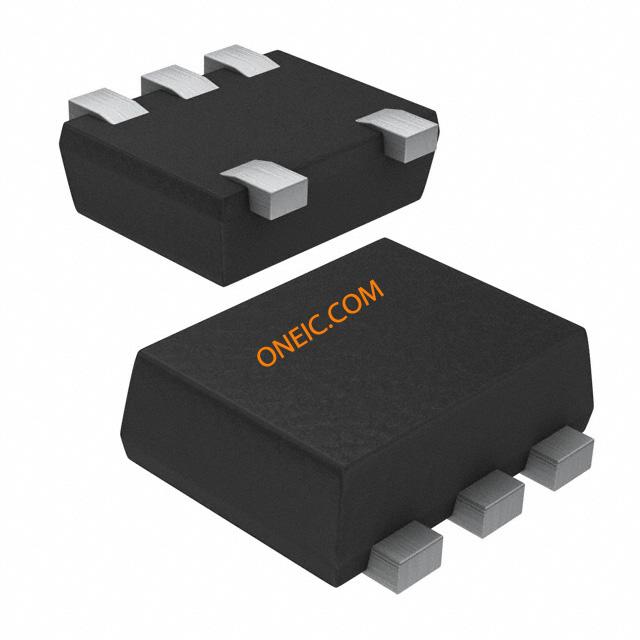

 DIODE ESD PROTECT 5V SOT-553 TVS DIODE 5VWM 11VC SOT553 ESD Suppressors 5 Volts Low Capac ESD ProtectionDevice ESD Suppressors / TVS Diodes 5 Volts Low Capac ESD ProtectionDevice Micro Commercial Co | 10 | 1: ¥3.332 | - | Lead free / RoHS Compliant | 5V | 6V | Tape & Reel (TR) | SOT-553 | SMD/SMT | -55°C ~ 150°C | ESDLC5V0L4-TPMSCT | 3,000 | 3000 | 4 Channel | 11V | 11.5 pF | No | 14pF @ 1MHz | Surface Mount | SOT-553 | Zener | ESDLC5 | Unidirectional | General Purpose | Micro Commercial Components (MCC) | - | 20W | 150 mW | 1.6 A | - | 4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 TVS DIODE 5VWM 20VC DFN3810-9 ESD Suppressors / TVS Diodes 5V, 0.4pf ESD Protec ion Device, MCC (Micro Commercial Components) | 3000 | 1: ¥4.488 | - | RoHS Compliant | 5 V | 6 V | Reel | DFN3810-9 | SMD/SMT | - 55 C | - | - | 3000 | 9 Channel | 20 V | 0.29 pF | - | - | - | - | - | - | Unidirectional | - | Micro Commercial Components (MCC) | 8 kV | - | - | 5 A | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 3414 | 1: ¥4.624 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
