EAW0J-B24 passive component 系列
Bourns, Inc.具有绝对定位和支架安装的机械旋转编码器

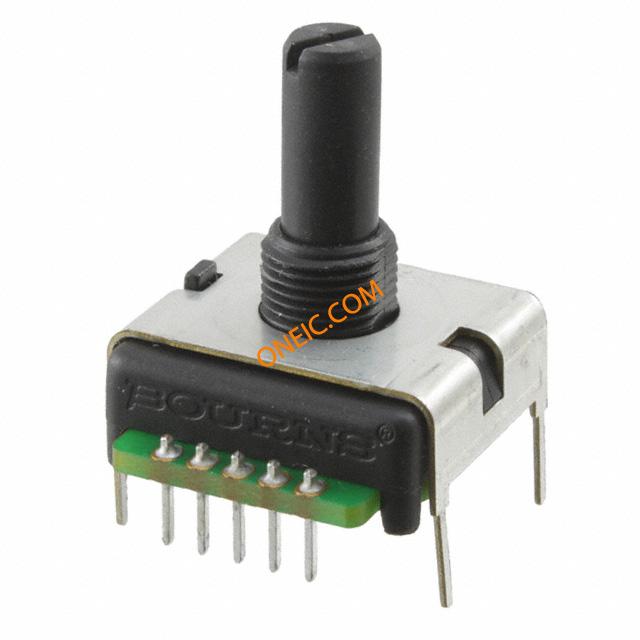

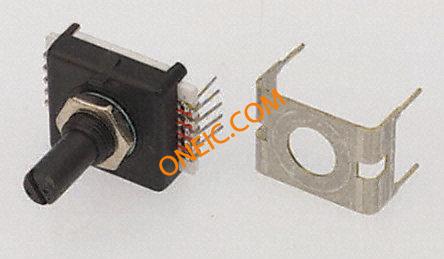

Bourns, Inc. 的 EAW0J-B24 系列机械旋转编码器专为需要精确角度位置检测并具备绝对定位能力的应用设计。这些编码器具有坚固的支架安装选项，使其非常适合工业控制面板、医疗设备和汽车系统等空间有限且对安装灵活性要求高的场合。
如果您正在从事需要可靠、非接触式高分辨率和重复性位置测量的项目，这些编码器是一个不错的选择。它们提供绝对位置输出，这意味着即使在断电后也能保留其位置数据，这是相对于增量编码器的一个显著优势。值得一提的是，紧凑的设计和支架安装使它们易于集成到现有系统中，无需进行大量修改。当工程师们需要在对精度和耐用性要求极高的环境中实现可靠的角度位置检测时，往往会选择这种编码器。
系列图片（9 张）
文档与媒体
常见问答
EAW0J-B24 passive component - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 工厂包装数量 | RoHS | 输出端 | 分辨率 | 通道数量 | 轴细节 | 衬套螺纹 | 安装样式 | 轴直径 | 尺寸/外形 | 端接样式 | 位数 | 衬套/护套类型 | 绝缘材料 - 材质 | 轴和轴承长度 | 类型 | 系列 | 技术 | 其他规格 | 工作温度 | 其他名称 | 标准包装数量 | 输出类型 | 方向 | 致动器类型 | 安装类型 | 旋转寿命（最小循环次数） | 制动位 | 编码器类型 | 内置振荡器 | 每转脉冲数 | 欧盟RoHS | 海关税号 | 转速 | 额定电压 | 输出电流 | 分辨率（位） | 重量 | 包装方式 | 端子类型 | 驱动力 | 最大瞬时扭矩（oz-in / mNm） | 分度停止 | 可编程性 | 模块/板类型 | 密封等级 | 机械寿命 | 抗冲击能力 | SVHC | 抗辐射加固 | 介电强度 | 触点额定电流 | 供电电压 (Vcc/Vdd) | 深度 | 高度 | 总长度 | 安装孔直径 | 已删除 | 每层位数 | 有铅工艺兼容 | 结工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FUSE,7A,.018 OHM,.18V,1.57W,HAZMAT,7'T/R Mechanical Encoder Rotary Absolute Plain with Slot 2.5oz.in Straight Quadrature Digital 128PPR Bracket Mount PC Pins ENCODER MECH ABSOL Encoders Digital Output Bushing Mount ABSOLUTE/MECHANICAL ENCODER ENCODER-ABSOLUTECONTACTING bourns | 270 | 1: ¥93.976 | Encoders | Mechanical Encoders | 45 | Lead free / RoHS Compliant | 8 bit Code | 128 PPR | 8 Channel | Plain with Slot | M9 x 0.75 | Panel | 1/4 in | 28 mm x 22 mm | PC Pin | 0 | 9mm x 1/4" | Plastic | 3/4 in | Contacting Encoder | EAW | Rotary | No Switch | - 40 C to + 85 C | EAW0JB24CE0128L | 45 | Binary (Absolute) | Vertical | 1/4" Dia Slotted End | Bracket Mount | 50K | No | Quadrature | No | 128 | Compliant | 90292038 | 120r/min | 10VDC | :10mA | :128CPR | 0.009 | Tray | PC Pins | Rotary | 2.5oz.in | Not Indexed | No | No | IP40 | 50000 | 50G | - | - | - | - | - | - | - | - | - | - | - | - | - |
 ABSOLUTE CONTACTING ENCODER,9:00 POS,TRAY,HAZMAT Mechanical Encoder Rotary Absolute Plain with Slot 2.5oz.in Straight Quadrature Digital 128PPR Bracket Mount PC Pins ENCODER MECH ABSOL 8BIT Bourns 128 Pulse Absolute Mechanical Rotary Encoder with a 6.35mm Plain with Slot Shaft (Not Indexed), Bracket Mount Encoders Digital Output Bushing Mount Mechanical Encoder Rotary Absolute Plain with Slot 2.5oz-in Straight Gray Digital 128PPR Bracket Mount PC Pins ENCODER, ROTARY, 128POS, 8 BIT ABSOLUTE/MECHANICAL ENCODER ENCODER,ABSOLUTE,CONTACTING Bourns 128位置 绝对 机械式旋转编码器, 6.35 mm直径 平带插槽轴 (没有索引), 支架安装 bourns | 75 | 5: ¥83.4401 | Encoders | Mechanical Encoders | 45 | Lead free / RoHS Compliant | 8 bit Code | 128 PPR | 8 Channel | Plain with Slot | M9 x 0.75 | Panel | 6.35 mm | 28 mm x 22 mm | PC Pin | 0 | 9mm x 1/4" | Plastic | 3/4 in | Contacting Encoder | EAW | Rotary | No Switch | - 40 C to + 85 C | EAW0JB24AE0128L | 45 | Binary (Absolute) | Vertical | 1/4" Dia Slotted End | Bracket Mount | 50K | No | Quadrature | No | 128 | Compliant | 85334010 | 120r/min | 10VDC | :10mA | :128CPR | 0.014 | Tray | PC Pins | Rotary | 2.5oz.in | Not Indexed | No | No | IP40 | 50000 | 50G | :No SVHC (20-Jun-2013) | No | :1000V | :10mA | :10V | 27.94 | 27.56 | 23.88 | 9mm | Compliant | Not Indexed | :Yes | 85C |
 | 135 | 1: ¥93.976 | Encoders | Mechanical Encoders | 45 | In Transition | 8 bit Code | 128 PPR | 8 Channel | Flatted | M9 x 0.75 | Panel | 1/4 in | 28 mm x 22 mm | PC Pin | 0 | 9mm x 1/4" | Plastic | 3/4 in | Absolute | EAW | Rotary | No Switch | - 40 C to + 85 C | EAW0JB24BE0128L | 5 | Binary (Absolute) | Vertical | 1/4" Dia Slotted End | Panel, PCB Through Hole | 50K | No | Mechanical | No | 128 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 10 | 205: ¥55.624 | Encoders | Mechanical Encoders | 45 | No | 8 bit Code | 128 PPR | 8 Channel | Flatted | M9 x 0.75 | Panel | 1/4 in | 28 mm x 22 mm | Through Hole | 0 | 9mm x 1/4" | Plastic | 3/4 in | Absolute | EAW | Rotary | No Switch | - 40 C to + 85 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
