DPS120083U Transformer 系列

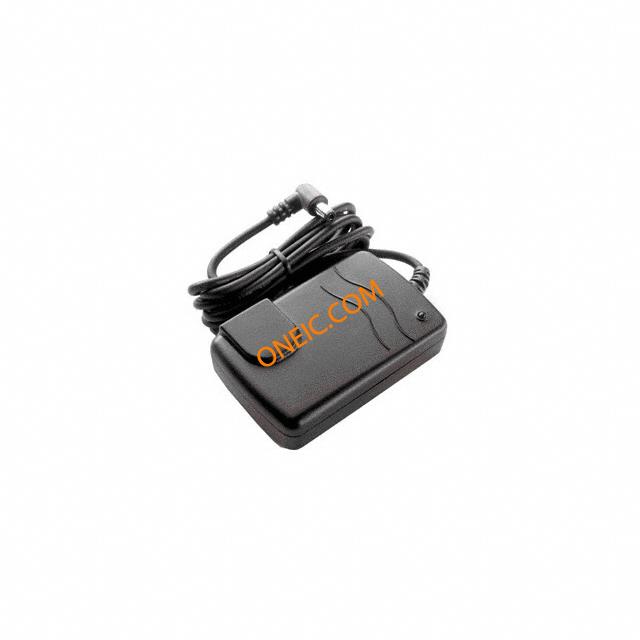

CUI Inc.12V 830mA transformers with various polarity and connection options
系列图片（1 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
DPS120083U Transformer - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 功率（瓦） | 输出电流 | 供电类型 | 最小输入电压 | 极化 | 输出连接器 | 外形 | 应用 | 适用地区 | 效率 | 电源调整率 | 负载调整率 | 线缆长度 | 产品特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 0 | - | 100 | 9.96W | 830mA | Switching | 12V | Positive Center | 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female | Wall Mount (2 Prong) | Commercial | North America | - | - | - | - | - | - | |
 | 0 | - | 1 | 9.96W | 830mA | Switching | 12V | Negative Center | 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female | Wall Mount (2 Prong) | Commercial | North America | 70% | ±2% | ±3% | 47" (1.2m) | OCP, OVP, SCP | 0°C ~ 40°C | |
| 0 | - | 1 | 9.96W | 830mA | Switching | 12V | Negative Center | 2.5mm I.D. x 5.5mm O.D. x 12mm Female | Wall Mount (2 Prong) | Commercial | North America | 70% | ±2% | ±3% | 47" (1.2m) | OCP, OVP, SCP | 0°C ~ 40°C | |
| 0 | - | 1 | 9.96W | 830mA | Switching | 12V | Positive Center | 2.5mm I.D. x 5.5mm O.D. x 12mm Female | Wall Mount (2 Prong) | Commercial | North America | 70% | ±2% | ±3% | 47" (1.2m) | OCP, OVP, SCP | 0°C ~ 40°C | |
| 0 | - | 1 | 9.96W | 830mA | Switching | 12V | Negative Center | 1.3mm I.D. x 3.5mm O.D. x 8.5mm Female | Wall Mount (2 Prong) | Commercial | North America | 70% | ±2% | ±3% | 47" (1.2m) | OCP, OVP, SCP | 0°C ~ 40°C |
第 1 / 1 页
1
