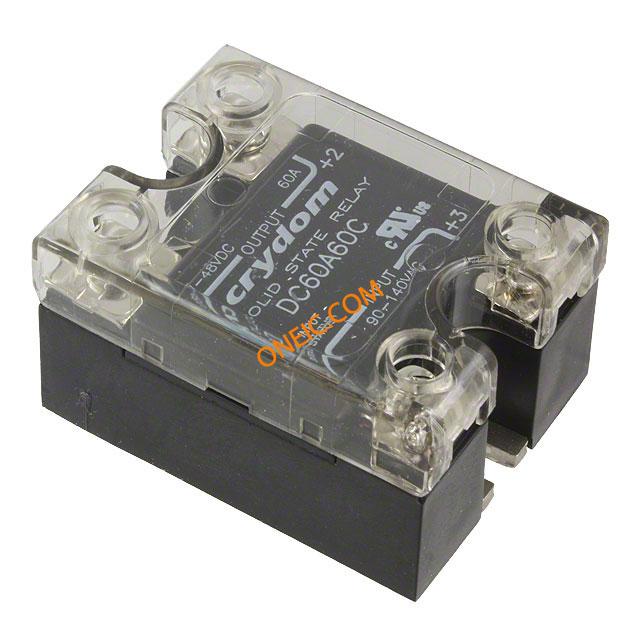

DC60A relays & solenoid 系列
Custom Sensors & Technologies (CST)工业用高电流直流输出固态继电器
Custom Sensors & Technologies (CST) 的 DC60A 继电器系列专为需要高电流直流输出的工业应用设计。这些固态继电器适用于需要精确控制大功率电路的系统，例如电机驱动器、电池管理系统和充电站。如果您正在处理涉及高压直流切换的项目，这些继电器提供了一个可靠的选择，具有最小的接触反弹和快速的切换时间，这对于保持系统的效率和可靠性至关重要。
值得注意的是，它们能够处理冲击电流而不受损，因此适合负载波动的环境。工程师在需要能够在恶劣条件下长期稳定运行而无需频繁维护的坚固继电器时，往往会选择这种继电器。另一个实用的特点是其紧凑的尺寸，这使得它们更容易集成到空间受限的设计中。总体而言，DC60A 系列为希望在其工业应用中实现高电流直流切换的人提供了可靠的选择。
系列图片（13 张）
文档与媒体
常见问答
DC60A relays & solenoid - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 输出端 | 电路 | 输出类型 | 负载电流 | 负载电压 | 供电电压 | 最大额定电流 | 最小输入电压 | 最小供电电压 | 导通电阻（最大） | 包装方式 | 安装类型 | 安装样式 | 封装形式 | 端接样式 | 继电器类型 | 产品子类型 | 工作温度 | 系列 | 其他名称 | 标准 | 海关税号 | 开启时间 | 额定电压 | 电池组电压 | 关态电流（最大） | 静态电流（最大） | 额定交流电压（相间） | 驱动电压（最大Rds On，最小Rds On） | 深度 | 高度 | 长度 | 重量 | 端接方式 | 触点形式 | 端子类型 | 引脚数 | 典型触点布局 | 产品特性 | 功能 | CAD图纸 | 开关类型 | 制造商全称 | 其他规格 | 开关模式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Solid State Relays - Industrial Mount SSR DC OUTPUT 48VDC/60A 90-140VAC RELAY SSR 60VDC/60A 90-140VAC SSR, High Current,60A,90-140Vac,IP20 SSR PANEL MOUNT, 90 TO 140VAC, 60A, 7 TO 48VDC RELAY;PMIP20SSR60VDC/60A,90-140VAC Crydom | 21 | 1: ¥1,221.96 | - | 20 | Compliant | MOSFET | SPST-NO (1 Form A) | DC | 60A | 1 ~ 48 V | 90 VAC to 140 VAC | 60 A | 90 ~ 140VAC | 90 V ac | 10.4 Ohm | Bulk | Chassis Mount or Panel Mount | Panel | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - 30 C | PowerPlus | CC1873 | UL,CE | 85364900 | 10 ms | 60VDC | 1 V dc | 0.1 mA | 2.5 mA | :48VDC | 90-140VAC | 44.5mm | 32.9mm | 58.2mm | 0 | Screw | SPST-NO | Screw | 4 | SPST-NO | IP20Cover | DCSwitching | 3D CAD Model | Instantaneous Switching | PowerPlusDCSeries | :140VAC | - |
 Solid State Relays - Industrial Mount IP00 SSR 60VDC/60A 90-140VAC RELAY SSR DC OUT 60A 90-140VAC RELAY;PMIP00SSR60VDC/60A,90-140VAC Crydom | 10 | 7: ¥816.748 | - | 20 | RoHS Compliant | SSR | SPST-NO (1 Form A) | DC | 60A | 1 ~ 48 V | 90 VAC to 140 VAC | 60 A | 90 ~ 140VAC | 7 VDC to 48 VDC | 10.4 Ohm | Bulk | Chassis Mount or Panel Mount | Panel | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - 30 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Solid State Relays - Industrial Mount SSR DC OUTPUT 48VDC/40A 90-140VAC RELAY SSR DC OUT 40A 90-140VAC RELAY;PMIP20SSR60VDC/40A,90-140VAC Crydom | 10 | 7: ¥729.30 | - | 20 | RoHS Compliant | MOSFET | SPST-NO (1 Form A) | DC | 40A | 1 ~ 48 V | 90 VAC to 140 VAC | 40 A | 90 ~ 140VAC | 1 VDC to 48 VDC | 15.6 Ohm | Bulk | Chassis Mount or Panel Mount | Panel | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - 30 C | PowerPlus | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Solid State Relays - Industrial Mount SSR DC OUTPUT 48VDC/20A 90-140VAC RELAY SSR DC OUT 20A 90-140VAC RELAY;PMIP00SSR60VDC/20A,90-140VAC Crydom | 10 | 1: ¥618.392 | - | 20 | RoHS Compliant | MOSFET | SPST-NO (1 Form A) | DC | 20A | 1 ~ 48 V | 90 VAC to 140 VAC | 20 A | 90 ~ 140VAC | 1 VDC to 48 VDC | 17.6 Ohm | Bulk | Chassis Mount or Panel Mount | Panel | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - 30 C | PowerPlus | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Solid State Relays - Industrial Mount SSR DC OUTPUT 48VDC/10A 90-140VAC RELAY SSR DC OUT 10A 90-140VAC RELAY;PMIP00SSR60VDC/10A,90-140VAC Crydom | 10 | 1: ¥852.176 | - | 20 | RoHS Compliant | MOSFET | SPST-NO (1 Form A) | DC | 10A | 1 ~ 48 V | 90 VAC to 140 VAC | 10 A | 90 ~ 140VAC | 1 VDC to 48 VDC | 33.4 Ohm | Bulk | Chassis Mount or Panel Mount | Panel | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - 30 C | PowerPlus | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 ソリッドステートリレー：工業用マウント SSR DC OUTPUT 48VDC/20A 90-140VAC RELAY SSR 60VDC/20A 90-140VAC SSR, High Current,20A,90-140Vac,IP20 Solid State Relays - Industrial Mount SSR DC OUTPUT 48VDC/20A 90-140VAC SSR PANEL MOUNT, 90 TO 140VAC, 20A, 7 TO 48VDC RELAY;PMIP20SSR60VDC/20A,90-140VAC Crydom | 125 | 1: ¥466.7724 | - | 20 | Compliant | MOSFET | SPST-NO (1 Form A) | DC | 20A | 1 ~ 48 V | 90 VAC to 140 VAC | 20 A | 90 ~ 140VAC | 90 V ac | 17.6 Ohm | Bulk | Chassis Mount or Panel Mount | Panel | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - 30 C | PowerPlus | CC1872 | UL,CE | 85364900 | 10 ms | 60VDC | 1 V dc | 0.1 mA | 2.5 mA | :48VDC | 90-140VAC | 44.5mm | 32.9mm | 58.2mm | 0 | Screw | SPST-NO | Screw | 4 | SPST-NO | IP20Cover | DCSwitching | 3D CAD Model | Instantaneous Switching | PowerPlusDCSeries | :140VAC | :DC Switch |
Solid State Relays - Industrial Mount SSR DC OUTPUT 48VDC/40A 90-140VAC RELAY SSR DC OUT 40A 90-140VAC RELAY;PMIP00SSR60VDC/40A,90-140VAC Crydom | 10 | 7: ¥706.044 | - | 20 | RoHS Compliant | MOSFET | SPST-NO (1 Form A) | DC | 40A | 1 ~ 48 V | 90 VAC to 140 VAC | 40 A | 90 ~ 140VAC | 1 VDC to 48 VDC | 15.6 Ohm | Bulk | Chassis Mount or Panel Mount | Panel | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - 30 C | PowerPlus | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Solid State Relays - Industrial Mount SSR DC OUTPUT 48VDC/10A 90-140VAC RELAY SSR DC OUT 10A 90-140VAC RELAY;PMIP20SSR60VDC/10A,90-140VAC Crydom | 12 | 1: ¥609.076 | - | 20 | RoHS Compliant | MOSFET | SPST-NO (1 Form A) | DC | 10A | 1 ~ 48 V | 90 VAC to 140 VAC | 10 A | 90 ~ 140VAC | 1 VDC to 48 VDC | 33.4 Ohm | Bulk | Chassis Mount or Panel Mount | Panel | Hockey Puck | Screw Terminal | Relay | Industrial Mount | - 30 C | PowerPlus | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
