DC1370A semiconductors - tool 系列
Analog Devices, Inc.高速ADC应用的评估和演示板
Analog Devices 的 DC1370A 系列是一套专门针对高速模数转换器(ADC)应用的评估和演示板。这些板子是工程师测试和展示各种系统中高速ADC性能的重要工具。如果您正在从事涉及超高速信号处理的项目，这些板子可以帮助您快速评估ADC的能力，而无需从头构建完整的系统。
值得注意的是，这些板子配备了运行高速信号所需的全部必要组件，使其非常适合评估噪声性能、动态范围及其他关键参数。它们还包含调试接口，在排查复杂系统时可以起到救命的作用。当工程师需要在投入生产之前验证设计选择时，往往会选用这种板子。
另一个实用的好处是，这些板子通常包括参考设计和软件示例，这可以显著加快开发时间。这对于从事医学成像、雷达系统或任何需要精确快速数据转换的应用来说尤其有用。能够快速原型制作并迭代设计是当今快节奏科技环境中保持竞争力的关键。
系列图片（9 张）
常见问答
DC1370A semiconductors - tool - 型号列表
共 14 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 海关税号 | 输入范围 | 数据接口 | 位数 | 元件数量 | 典型功耗（条件） | 采样率（每秒） | 重量 | 内容 | 套件类型 | 套件内容 | 使用的IC/零件 | 芯片组制造商 | 应用细节 | RoHS | A/D转换器数量 | 其他名称 | ADC/DAC 数量 | 工作温度 | 产品特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BOARD DEMO 65MSPS LTC2258-14 14BIT ADC Eval Brd, Rq. DC890, LVDS_XFMR & DC1075 Analog Devices, Inc. | 10 | 1: ¥1,886.796 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 14 | :LTC2258-14 | 160.9mW @ 65MSPS | 65M | 0 | Board | :Data Converter | :Board, Guide | LTC2258-14 | :Linear Technology | :ADC | - | - | DC1370AD | 1 | 0°C ~ 70°C | - |

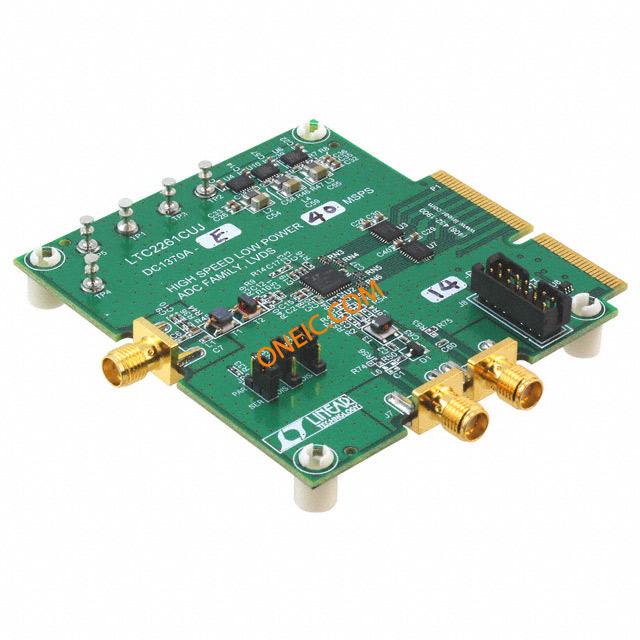

 BOARD DEMO 40MSPS LTC2257-14 14BIT ADC Eval Brd, Rq. DC890, LVDS_XFMR & DC1075 Analog Devices, Inc. | 10 | 1: ¥13.4001 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 14 | :LTC2257-14 | 129.4mW @ 40MSPS | 40M | 0 | Board | :Data Converter | :Board, Guide | LTC2257-14 | :Linear Technology | :ADC | - | - | DC1370AE | 1 | 0°C ~ 70°C | - |

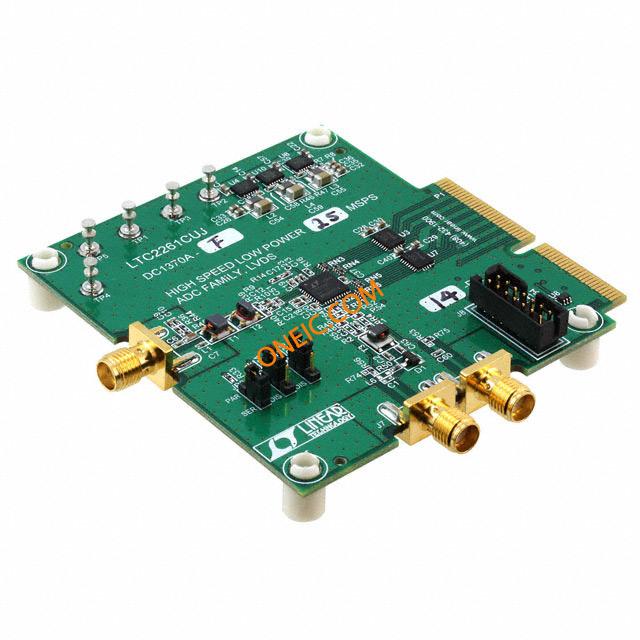

 BOARD DEMO 25MSPS LTC2256-14 14BIT ADC Eval Brd, Rq. DC890, LVDS_XFMR & DC1075 Analog Devices, Inc. | 10 | 1: ¥12.9696 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 14 | :LTC2256-14 | 115.2mW @ 25MSPS | 25M | 0 | Board | :Data Converter | :Board, Guide | LTC2256-14 | :Linear Technology | :ADC | - | - | DC1370AF | 1 | 0°C ~ 70°C | - |

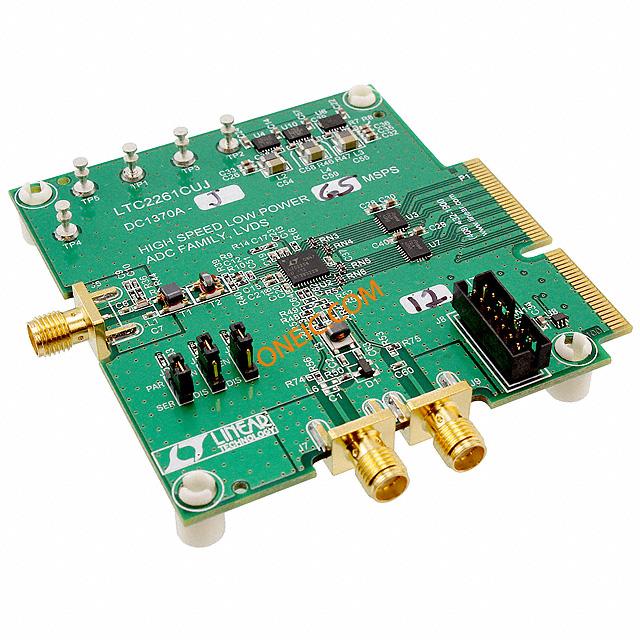

 | 10 | 1: ¥12.2828 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 12 | :LTC2258-12 | 152.6mW @ 65MSPS | 65M | 0 | Board | :Data Converter | :Board, Guide | LTC2258-12 | :Linear Technology | :ADC | - | - | DC1370AJ | 1 | 0°C ~ 70°C | - |

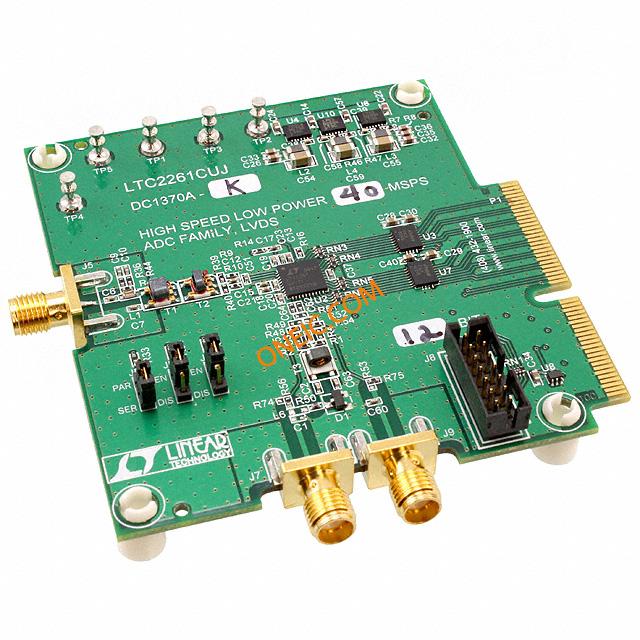

 | 10 | 1: ¥13.4001 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 12 | :LTC2257-12 | 121.1mW @ 40MSPS | 40M | 0 | Board | :Data Converter | :Board, Guide | LTC2257-12 | :Linear Technology | :ADC | - | - | DC1370AK | 1 | 0°C ~ 70°C | - |

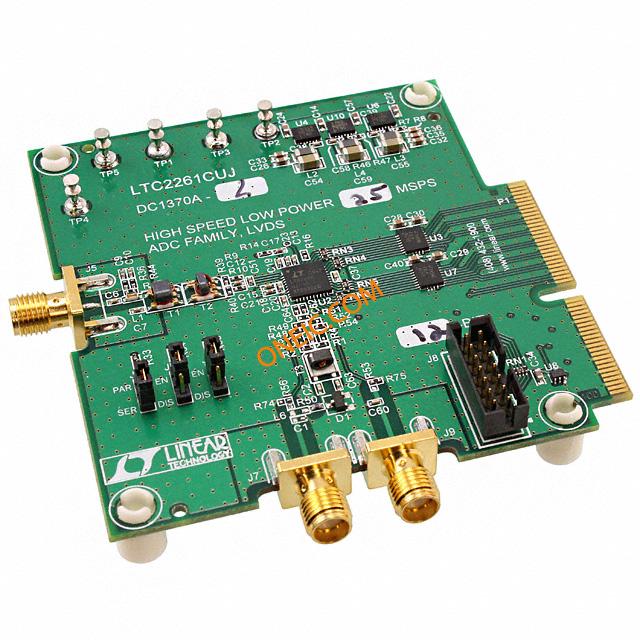

 | 10 | 1: ¥2,273.92 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 12 | :LTC2256-12 | 106.9mW @ 25MSPS | 25M | 0 | Board | :Data Converter | :Board, Guide | LTC2256-12 | :Linear Technology | :ADC | - | - | DC1370AL | 1 | 0°C ~ 70°C | - |
 14BIT ADC Eval Brd, Rq. DC890, LVDS_XFMR & DC1075 BOARD EVAL LTC2260-14 Analog Devices, Inc. | 10 | 1: ¥12.2828 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 14 | :LTC2260-14 | 187mW @ 105MSPS | 105M | 0 | Board | :Data Converter | :Board, Guide | LTC2260-14 | :Linear Technology | :ADC | Lead free / RoHS Compliant | 1 | - | - | - | - |
14BIT ADC Eval Brd, Rq. DC890, LVDS_XFMR & DC1075 BOARD EVAL LTC2261-14 Analog Devices, Inc. | 10 | 1: ¥12.0768 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 14 | :LTC2261-14 | 209mW @ 125MSPS | 125M | 0 | Board | :Data Converter | :Board, Guide | LTC2261-14 | :Linear Technology | :ADC | Lead free / RoHS Compliant | 1 | - | - | - | - |
14BIT ADC Eval Brd, Rq. DC890, LVDS_XFMR & DC1075 BOARD EVAL LTC2259-14 Analog Devices, Inc. | 10 | 1: ¥12.2828 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 14 | :LTC2259-14 | 170mW @ 80MSPS | 80M | 0 | Board | :Data Converter | :Board, Guide | LTC2259-14 | :Linear Technology | :ADC | Lead free / RoHS Compliant | 1 | - | - | - | - |
| 10 | 1: ¥12.2828 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 12 | :LTC2260-12 | 177mW @ 105MSPS | 105M | 0 | Board | :Data Converter | :Board, Guide | LTC2260-12 | :Linear Technology | :ADC | Lead free / RoHS Compliant | 1 | - | - | - | - |
| 10 | 1: ¥2,058.36 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 12 | :LTC2259-12 | 161mW @ 80MSPS | 80M | 0 | Board | :Data Converter | :Board, Guide | LTC2259-12 | :Linear Technology | :ADC | Lead free / RoHS Compliant | 1 | - | - | - | - |
| 10 | 1: ¥12.0768 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 12 | :LTC2261-12 | 199mW @ 125MSPS | 125M | 0 | Board | :Data Converter | :Board, Guide | LTC2261-12 | :Linear Technology | :ADC | Lead free / RoHS Compliant | 1 | - | - | - | - |
 | 10 | 1: ¥12.0768 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 12 | :LTC2262-12 | 221mW @ 150MSPS | 150M | 0 | Board | :Data Converter | :Board, Guide | LTC2262-12 | :Linear Technology | :ADC | Lead free / RoHS Compliant | 1 | - | - | - | :Also works with requred DC718 |
 | 10 | 1: ¥12.0768 | - | 1 | 85423990 | 1 ~ 2 Vpp | Parallel, Serial, SPI | 14 | :LTC2262-14 | 231mW @ 150MSPS | 150M | 0 | Board | :Data Converter | :Board, Guide | LTC2262-14 | :Linear Technology | :ADC | Lead free / RoHS Compliant | 1 | - | - | - | :Also works with requred DC718 |
