DC12.3102 power entry - module 系列

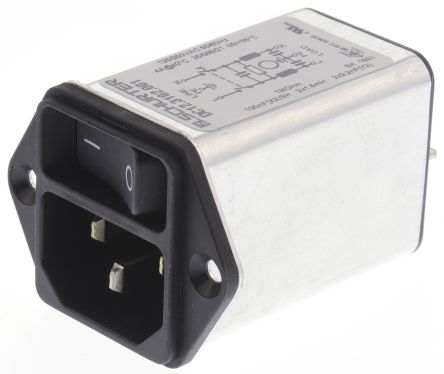

Schurter Holding AG4A，250V AC电源入口模块，带有IEC C14滤波器
Schurter 的 DC12.3102 系列是一款额定电流为 4A、耐压 250V AC 的坚固型电源入口模块，内置 IEC C14 滤波器。这些模块专为需要可靠电源入口的应用设计，同时能够滤除常见的电气噪声和尖峰。如果您正在开发需要干净电源输入并能防止瞬态电压的设备，这些模块是一个不错的选择。
值得一提的是，它们具有紧凑的设计，非常适合空间受限的环境。工程师通常会选用这种模块，以便在不牺牲质量和安全性的前提下，简单地将电源供应集成到其设备中。滤波器的加入确保进入设备的电源是干净的，这可以延长内部组件的使用寿命，并提高整个系统的可靠性。
另一个实际应用场景是在工业自动化系统中，保持稳定的电源水平对于确保设备平稳运行至关重要。DC12.3102 系列模块可以帮助缓解由于电源波动引起的问题，确保您的机械设备高效且可靠地运行。此外，这些模块还符合相关安全标准，提供安心感并满足法规要求。
系列图片（13 张）
文档与媒体
常见问答
DC12.3102 power entry - module - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 标准包装数量 | 工厂包装数量 | RoHS | 电流 | 电压 | 滤波器类型 | 开关功能 | 最小输入电压 | 重量 | 安装类型 | 连接器类型 | 保险丝座类型 | 端接样式 | 触点数 | 类型 | 带保险丝 | 系列 | 产品特性 | SVHC | 海关税号 | 材料阻燃等级 | 电感量 | 电阻 | 电容 | 额定电压 | 极数 | 漏电流 | 介电强度 | 最大额定电流 | 端接方式 | 安装样式 | 面板厚度 | 壳体材料 | 连接器性别 | 固件版本 | 工作温度 | 漏电流（IS(off)）（最大） | 面板开孔形状 | 连接器阻抗 | 接触件端接 | 第一连接器安装类型 | 插头类型 | 认证机构 | 深度 | 宽度 | 高度 | 长度 | 连接器 - 电缆 | 连接器颜色 | 位数 | 面板开孔尺寸（外形） | 外壳与棱镜材料 | 附带电池数量 | 最小起订量 | 单位包装 | 连接器类型 - 电压输入 | 包装数量 | 安装面板厚度 | SPG | 单元数量 | 触点配置 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Power Entry Module Filtered M 3 POS 250VAC 4A Switch ST 1 Port MOD PWR 4A STD FILTER 1PL QC PNL AC Power Entry Modules Screw-on 1-pole 4A Standard INLET FILTER, IEC, SCREW, 1POLE, 4A Module,PowerEntry;125/250VAC,50/60Hz;10A;1;DC12PEMType schurter | 440 | 1: ¥199.32 | AC Power Entry Modules | Inlets | Bulk | 10 | Lead free / RoHS Compliant | 4A | 125/250VAC | General Purpose | Switched | 250 Vac | 2.257534 oz | Flange Mount | IEC/EN 60320-1/C14 | Fuse Not Required | Quick Connect | 3 | Filtered | No | DC12 | Shielded, Switch On/Off, Non-Illuminated | :No SVHC (20-Jun-2013) | 85363010 | UL 94 V-0 | 2×1.5mH | 1Megohms | 100nF | 250 V | 1 | <0.5mA | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) | 4 A | QuickConnect | Screw | 8mm | Thermoplastic | :Plug | Standard | - 25 C to + 85 C | :0.5mA | 29×33mm | Quick-Connect6.3x0.8mm | :Quick Connect | :Panel | :IEC 60320 C14 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Power Entry Module Filtered M 3 POS 250VAC 4A Switch ST 1 Port DC12 G-STECKER-KOMBI 4A MOD PWR 4A STD FILTER 2PL QC PNL Male C14 IEC Filter Panel Mount,Rated At 4A,250V ac AC Power Entry Modules Screw-on 2-pole 4A Standard FILTER, INLET, 2 POLE SWITCHED, 4A PWRENTRYMODSCREW-ON2-POLE4ASTANDARD Connector: IEC 60320,AC mains; C14 (E); socket; male; 4A; 250VAC Power inlet with filter 4 A 250 VAC, DC12.3102.001, Schurter Schurter C14 面板安装 插头 IEC 滤波器, 额定4A, 250 V 交流 schurter | 12 | 1: ¥201.076 | AC Power Entry Modules | Inlets | Bulk | 10 | Lead free / RoHS Compliant | 4A | 125/250VAC | General Purpose | Switched | 250 Vac | 2.257534 oz | Flange Mount | IEC/EN 60320-1/C14 | Fuse Not Required | Quick Connect | 3 | Filtered | No | DC12 | Shielded, Switch On/Off, Non-Illuminated | :No SVHC (20-Jun-2013) | 85366990 | UL 94 V-0 | 1.5mH | 1MΩ | 2.2nF | 250 V ac | 2 | :191µA | >1.7(L-N)/>2.7(L/N-PE)kVDC | 4A | QuickConnect | Screw | :8mm | Thermoplastic | Male | Standard | - 25 C to + 85 C | :191µA | - | - | - | - | - | :CSA, IEC, UL | 60.5mm | 44.3mm | 34.4mm | :34.4mm | C14 | :Black | :Single | :33mm | :Thermoplastic | :2 | 10 | 10 | C14 (E) | 10 | :36mm | 10 | 1 | DPST |
 Power Entry Module Filtered M 3 POS 250VAC 4A Switch ST 1 Port POWER ENTRY MODULE 4A AC Power Entry Modules DC12 PWR ENTRY MODUL 4A DC12POWERENTRYMODUL4A schurter | 10 | 10: ¥185.30 | - | Inlets | Bulk | 10 | Lead free / RoHS Compliant | 4A | 125/250VAC | General Purpose | Switched | 250 Vac | 2.257534 oz | Snap-In | IEC/EN 60320-1/C14 | Fuse Not Required | Quick Connect | 3 | Filtered | No | DC12 | Shielded, Switch On/Off, Non-Illuminated | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Power Entry Module Filtered M 3 POS 250VAC 4A Switch ST 1 Port POWER ENTRY MODULE 4A AC Power Entry Modules DC12 PWR ENTRY MODUL 4A PowerEntryModule;4A;250VAC schurter | 10 | 10: ¥193.664 | - | Inlets | Bulk | 10 | Lead free / RoHS Compliant | 4A | 125/250VAC | General Purpose | Switched | 250 Vac | 2.257534 oz | Flange Mount | IEC/EN 60320-1/C14 | Fuse Not Required | Quick Connect | 3 | Filtered | No | DC12 | Shielded, Switch On/Off, Non-Illuminated | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Power Entry Module Filtered M 3 POS 250VAC 4A Switch ST 1 Port POWER ENTRY MODULE 4A Male C14 IEC Filter Snap-In,Rated At 4A,250V ac AC Power Entry Modules Snap-in 2-pole 4A Standard FILTER, INLET, 2 POLE SWITCHED, 4A Module,PowerEntry;125/250VAC,50/60Hz;10A;2;DC12PEMType Schurter C14 嵌入式 插头 IEC 滤波器, 额定4A, 250 V 交流 schurter | 10 | 1: ¥212.98 | AC Power Entry Modules | Inlets | Bulk | 10 | Lead free / RoHS Compliant | 4A | 125/250VAC | General Purpose | Switched | 250 Vac | 2.257534 oz | Snap-In | IEC/EN 60320-1/C14 | Fuse Not Required | Quick Connect | 3 | Filtered | No | DC12 | Shielded, Switch On/Off, Non-Illuminated | :No SVHC (20-Jun-2013) | 85366990 | UL 94 V-0 | 2×1.5mH | 1Megohms | 100nF | 250 V ac | 2 | :0.3mA | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) | 4A | QuickConnect | Snap In | :3mm | Thermoplastic | Male | Standard | - 25 C to + 85 C | :0.3mA | 29.35×33mm | Quick-Connect6.3x0.8mm | - | - | - | :CSA, IEC, UL | 60.5mm | 32.5mm | 36.5mm | :34.4mm | C14 | :Black | :Single | :33mm | :Thermoplastic | :2 | - | - | - | - | - | - | - | - |
 Power Entry Module Filtered M 3 POS 250VAC 4A Switch ST 1 Port DC12 POWER ENTRY MODUL 4A AC Power Entry Modules Metal flange 4 A INLET FILTER, IEC, SCREW, 2POLE, 4A POWERENTRYMODULE4A schurter | 10 | 1: ¥113.288 | AC Power Entry Modules | Inlets | Bulk | 10 | Lead free / RoHS Compliant | 4A | 125/250VAC | General Purpose | Switched | 250 Vac | 2.257534 oz | Flange Mount | IEC/EN 60320-1/C14 | Fuse Not Required | Quick Connect | 3 | Filtered | No | DC12 | Shielded, Switch On/Off, Non-Illuminated | :No SVHC (20-Jun-2013) | 85363010 | UL 94 V-0 | 2×1.5mH | 1Megohms | 100nF | 250 V | 2 | <0.5mA | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) | 4 A | QuickConnect | Screw | 8mm | Thermoplastic | :Plug | Standard | - 25 C to + 85 C | - | 30.3×34.3mm | - | :Quick Connect | :Panel | :IEC 60320 C14 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
