DBT72410 signal relays, up to 2 amp 系列

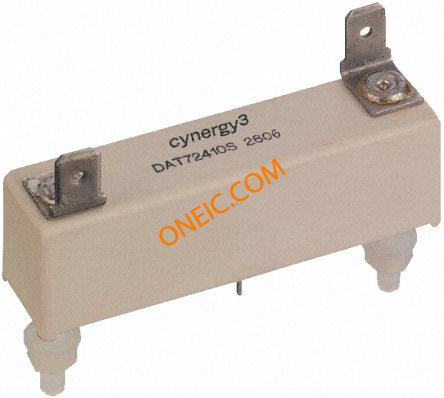

Sensata Technologies Holding N.V.高压reed继电器，具有PCB或面板安装的SPST-NC触点
Sensata Technologies 的 DBT72410 系列是一款用于单极单投常闭（SPST-NC）配置的高压reed继电器系列产品。这些继电器额定值可达2安培，并适用于PCB和面板安装，因此在各种工业和汽车应用中具有很高的灵活性。
如果您正在处理需要可靠切换的高压电路项目，这些继电器是一个很好的选择。它们为电机控制、电池管理系统以及各种需要高压隔离和切换的关键汽车电子产品提供了坚固的解决方案。当工程师们需要一种简单而有效的方式来切换高压信号而不损坏敏感电路时，往往会选用这种类型的继电器。
值得一提的是，其紧凑的设计使其易于集成到空间受限的环境中。此外，PCB和面板安装选项可以根据您的具体安装需求提供灵活性。另一个实用的好处是，它们能够处理高压同时保持低接触电阻，即使在苛刻条件下也能确保高效可靠的运行。
总体而言，DBT72410 系列继电器是工程师在设计中实现稳健高压切换解决方案的理想选择。
系列图片（20 张）
文档与媒体
常见问答
DBT72410 signal relays, up to 2 amp - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 供电电压 | 开关电流 | 安装类型 | 典型触点布局 | 开关电压 | 类型 | 卡标准 | 隔离 | 标准包装数量 | RoHS | 线圈类型 | 线圈电流 | 释放时间 | 线圈电阻 | 接触电阻 | Vgs(th)（最大）@ Id | 集电极-发射极饱和电压（最大）@ Vge, Ic | 触点额定电流 | 包装方式 | 触点形式 | 触头材料 | 端接样式 | 继电器类型 | 动作时间 | 工作温度 | 触头类型 | 电阻 | 最大开关负载 | 绝缘电阻 | 通态电流（It (RMS)）（最大） | 接触件端接 | 释放值 | 必须动作（继电器术语，指必须吸合） | 最大功率 | 隔离类型 | 直流开关电压 | 深度 | 高度 | 长度 | 端子类型 | 机械寿命 | 材料（通用） | 总线连接 | 海关税号 | 重量 | 高度（最大） | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RELAY REED SPST 2A 24V SPST-NC Reed Relay, 2A, 24V dc Reed Relays SPST-NC 2A 24VDC 925Ohm Thru-Hole DRY REED RELAY, SPST-NC, 24VDC, 2A, THD RELAY;REED;HIGHVOLTAGE;SPNC;10KV;24VCOIL;PCB Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: PC Board Switching Current: 2 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V. | 0 | - | 24VDC | :2A | Through Hole | SPST-NC | 7000VAC, 7000VDC - Max | - | - | - | 20 | Compliant | Non Latching | 25.9mA | 3ms | 925 Ohms | 250 mΩ | 4 VDC | 20 VDC | 2A | Tray | SPST-NC (1 Form B) | Tungsten (W) | PC Pin | Reed | 2ms | -20°C ~ 70°C | - | - | - | - | - | - | - | - | 50 W | 17kV ac/dc | 7000V dc | 15.8mm | 18.5mm | 60mm | Through Hole | 1000000 (Electrical) cycles | - | - | 85364110 | 0.027 | :18.5mm | - | |
 RELAY REED SPST 2A 24V Reed Relays SPST-NC 2A 24VDC 925Ohm Panel Mount RELAY;10KV24VSPNCTUNGSTEN-PCBMOUNT1/4SPADEHVCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Base Mount Switching Current: 2 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V. | 0 | - | 24VDC | 2 Amps | Chassis Mount | 1B SPST-NC | 7000VAC, 7000VDC - Max | Relays | Reed Relay | 10 kv | 20 | RoHS Compliant Part | Non Latching | 25.9mA | 3ms | 925 Ohms | 250 ohms (100 ohms) | 4 VDC | 20 VDC | 2A | Tray | SPST-NC (1 Form B) | Tungsten (W) | Solder Turret | Reed | 2ms | -20°C ~ 70°C | Tungsten | 780 ohm | 10^9 operations | 10^10 ohms (10^13 ohns) | 3 A | 17 kv | 4 V | 20 V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 RELAY REED SPST 2A 24V SP-NC Reed Relay, 2A, 24V dc Reed Relays SPST-NC 2A 24VDC 925Ohm Panel Mount RELAY;10KV24VSPNCTUNGSTEN-PANELMOUNTSTUDSSOLDERTURRETCOIL/HVCONTACT Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Base Mount Switching Current: 2 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V. | 0 | - | 24VDC | 2 A | Chassis Mount | SP-NC | 7000VAC, 7000VDC - Max | Relays | Reed Relay | 10 kv | 20 | Compliant | Non Latching | 25.9mA | 3ms | 925 Ohms | 250 mΩ | 4 VDC | 20 VDC | 2A | Tray | SPST-NC (1 Form B) | Tungsten (W) | Quick Connect - 0.250" (6.3mm) | Reed | 2ms | -20°C ~ 70°C | Tungsten | 780 ohm | 10^9 operations | 10^10 ohms (10^13 ohns) | 3 A | 17 kv | 4 V | 20 V | 50 W | 10kV ac/dc | 7000V dc | 15.8mm | 18.5mm | 60mm | Tab | 1000000 (Electrical) cycles | - | - | - | - | - | 725-1057 | |
 RELAY REED SPST 2A 24V Reed Relays SPST-NC 2A 24VDC 925Ohm RELAY;10KV24VSPNCTUNGSTEN-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Flying Leads Switching Current: 2 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V. | 0 | - | 24VDC | 2 Amps | Through Hole | 1B SPST-NC | 7000VAC, 7000VDC - Max | Relays | Reed Relay | 10 kv | 20 | RoHS Compliant Part | Non Latching | 25.9mA | 3ms | 925 Ohms | 250 ohms (100 ohms) | 4 VDC | 20 VDC | 2A | Tray | SPST-NC (1 Form B) | Tungsten (W) | PC Pin, Wire Leads | Reed | 2ms | -20°C ~ 70°C | Tungsten | 780 ohm | 10^9 operations | 10^10 ohms (10^13 ohns) | 3 A | 17 kv | 4 V | 20 V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 RELAY REED HV 10KV N/C 24VDC PCB RELAY;3KV5V,SPNORHODIUM-PCBMOUNT Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: Base Mount Switching Current: 2 Amps Switching Voltage: - Sensata Technologies Holding N.V. | 0 | - | 24 VDC | 2 Amps | Base Mount | 1B SPST-NC | - | Relays | Reed Relay | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Tungsten | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 10KV 24V SPNC Tungsten - Flying Lead HVcontact connections - HR Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V. | 0 | - | 24 VDC | 3 Amps | PC Board | 1B SPST-NC | 7000 Volts | Relays | Reed Relay | 10kV | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Tungsten | Flying Leads | - | - | - | - | |
 10KV 24V SPNC Tungsten - PCB mount - HR Relays Reed Relays Contact Configuration: 1B SPST-NC Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V. | 0 | - | 24 VDC | 3 Amps | PC Board | 1B SPST-NC | 7000 Volts | Relays | Reed Relay | 10kV | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Tungsten | PC Board | - | - | - | - | |
 Reed Relay, Tungsten, SPST-NC, 24 VDC, DA Series, Through Hole, 925 ohm, 2 A Sensata Technologies Holding N.V. | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Reed Relay, Tungsten, SPST-NC, 24 VDC, DA Series, Through Hole, 925 ohm, 2 A Sensata Technologies Holding N.V. | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
