cigen-DAT70510

DAT70510 signal relays, up to 2 amp 系列

Sensata Technologies Holding N.V.

Sensata Technologies Holding N.V.

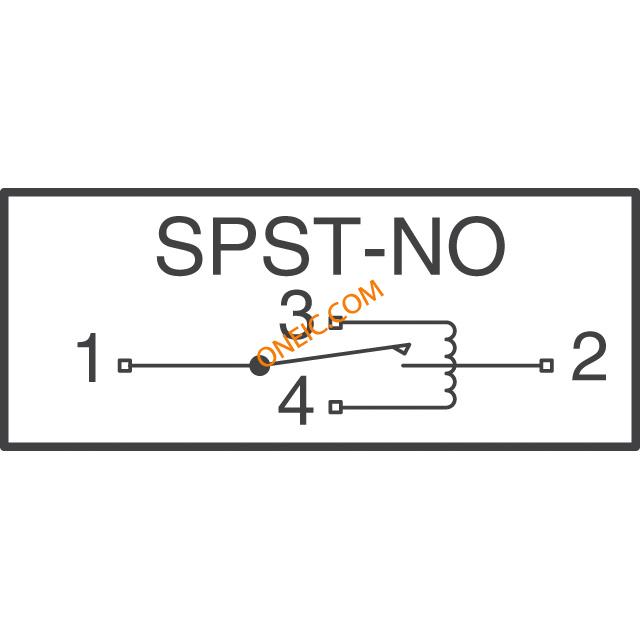

具有SPST-NO配置的高电压reed继电器，适用于多种安装选项

系列图片（21 张）

文档与媒体

PDF 文档

PDF 文档

D_Series_DS.pdf

在线文档

productdetail.aspx?id=47

PDF 文档

D-HRseries2014.pdf

PDF 文档

D_series_2012.pdf

PDF 文档

PDF 文档

d20series202013.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

DAT70510 signal relays, up to 2 amp - 型号列表

共 12 个型号

制造商零件编号	库存	价格	产品类别	供电电压	开关电流	安装类型	典型触点布局	开关电压	类型	卡标准	隔离	标准包装数量	RoHS	线圈类型	线圈电流	释放时间	线圈电阻	接触电阻	Vgs(th)（最大）@ Id	集电极-发射极饱和电压（最大）@ Vge, Ic	触点额定电流	包装方式	触点形式	触头类型	触头材料	端接样式	继电器类型	动作时间	工作温度	电阻	最大开关负载	绝缘电阻	通态电流（It (RMS)）（最大）	接触件端接	释放值	必须动作（继电器术语，指必须吸合）	其他名称	材料（通用）	总线连接	海关税号	最大功率	隔离类型	直流开关电压	深度	高度	长度	重量	高度（最大）	端子类型	系列	机械寿命
2 DAT70510P RELAY REED SPST 2A 5V Reed Relays SPST-NO 2A 5VDC 28Ohm Panel Mount RELAY;10KV05VSPNOTUNGSTEN-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 2 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V.	0		-	5VDC	2 Amps	Chassis Mount	1A SPST-NO	7000VAC, 7000VDC - Max	Relays	Reed Relay	10 kv	20	RoHS Compliant Part	Non Latching	178.57mA	2ms	28 Ohms	250 ohms (100 ohms)	0.5 VDC	3.7 VDC	2A	Tray	SPST-NO (1 Form A)	Tungsten	Tungsten (W)	Solder Turret	Reed	3ms	-20°C ~ 70°C	38 ohm	10^9 operations	10^10 ohms (10^13 ohns)	3 A	17 kv	0.5 V	3.7 V	DAT70510P-ND	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 DAT70510S RELAY REED SPST 2A 5V Reed Relays SPST-NO 2A 5VDC 28Ohm Thru-Hole RELAY;10KV05VSPNOTUNGSTEN-PCBMOUNT1/4SPADEHVCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 2 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V.	0		-	5VDC	2 Amps	Chassis Mount	1A SPST-NO	7000VAC, 7000VDC - Max	Relays	Reed Relay	10 kv	20	RoHS Compliant Part	Non Latching	178.57mA	2ms	28 Ohms	250 ohms (100 ohms)	0.5 VDC	3.7 VDC	2A	Bulk	SPST-NO (1 Form A)	Tungsten	Tungsten (W)	Quick Connect - 0.250" (6.3mm)	Reed	3ms	-20°C ~ 70°C	38 ohm	10^9 operations	10^10 ohms (10^13 ohns)	3 A	17 kv	0.5 V	3.7 V	DAT70510S-ND	-	-	-	-	-	-	-	-	-	-	-	-	-	-
9 DAT70510 RELAY REED SPST 2A 5V SPST-NO Reed Relay, 2A, 5V dc Reed Relays SPST-NO 2A 5VDC 28Ohm Thru-Hole DRY REED RELAY, SPST-NO, 5VDC, 2A, THD RELAY;REED;HIGHVOLTAGE;SPNO;10KV;5VCOIL;PCB Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 2 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V.	10	2: ¥357.884	-	5VDC	:2A	Through Hole	SPST-NO	7000VAC, 7000VDC - Max	-	-	-	20	Compliant	Non Latching	178.57mA	2ms	28 Ohms	250 mΩ	0.5 VDC	3.7 VDC	2A	Tray	SPST-NO (1 Form A)	-	Tungsten (W)	PC Pin	Reed	3ms	-20°C ~ 70°C	-	-	-	-	-	-	-	-	-	-	85364110	50 W	17kV ac/dc	7000V dc	15.8mm	18.5mm	60mm	0.027	:18.5mm	Through Hole	:D	1000000 (Electrical) cycles
6 DAT70510F RELAY REED SPST 2A 5V Reed Relays SPST-NO 2A 5VDC 28Ohm RELAY;10KV05VSPNOTUNGSTEN-FLYINGLEADHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Flying Leads Switching Current: 2 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V.	0		-	5VDC	2 Amps	Through Hole	1A SPST-NO	7000VAC, 7000VDC - Max	Relays	Reed Relay	10 kv	20	RoHS Compliant Part	Non Latching	178.57mA	2ms	28 Ohms	250 ohms (100 ohms)	0.5 VDC	3.7 VDC	2A	Tray	SPST-NO (1 Form A)	Tungsten	Tungsten (W)	PC Pin, Wire Leads	Reed	3ms	-20°C ~ 70°C	38 ohm	10^9 operations	10^10 ohms (10^13 ohns)	3 A	17 kv	0.5 V	3.7 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DAT70510T RELAY REED HV 10KV N/O 5VDC PCB RELAY;10KV05VSPNOTUNGSTEN-PANELMOUNTSTUDSSOLDERTURRETCOIL/HVCONTACT Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 2 Amps Switching Voltage: - Sensata Technologies Holding N.V.	0		-	5 VDC	2 Amps	Base Mount	1A SPST-NO	-	Relays	Reed Relay	-	-	-	-	-	-	-	-	-	-	-	-	-	Tungsten	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DAT70510F-HR 10KV 05V SPNO Tungsten - Flying Lead HVcontact connections - HR Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V.	0		-	5 VDC	3 Amps	PC Board	1A SPST-NO	7000 Volts	Relays	Reed Relay	10kV	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Tungsten	Flying Leads	-	-	-	-	-	-	-	-	-	-	-	-
DAT70510-HR 10KV 05V SPNO Tungsten - PCB mount - HR Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 7000 Volts Sensata Technologies Holding N.V.	0		-	5 VDC	3 Amps	PC Board	1A SPST-NO	7000 Volts	Relays	Reed Relay	10kV	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Tungsten	PC Board	-	-	-	-	-	-	-	-	-	-	-	-
DAT70510U Reed Relay, Tungsten, SPST-NO, 5 VDC, DA Series, Through Hole, 28 ohm, 2 A Sensata Technologies Holding N.V.	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DAT70510FU Reed Relay, Tungsten, SPST-NO, 5 VDC, DA Series, Through Hole, 28 ohm, 2 A Sensata Technologies Holding N.V.	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DAT70510PU RELAY REED SPST-NO 2A 5V Sensata Technologies Holding N.V.	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DAT70510SU RELAY REED SPST-NO 2A 5V Sensata Technologies Holding N.V.	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DAT70510TU RELAY REED SPST-NO 2A 5V Sensata Technologies Holding N.V.	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
