DAR71210 sensors,switches&relay 系列

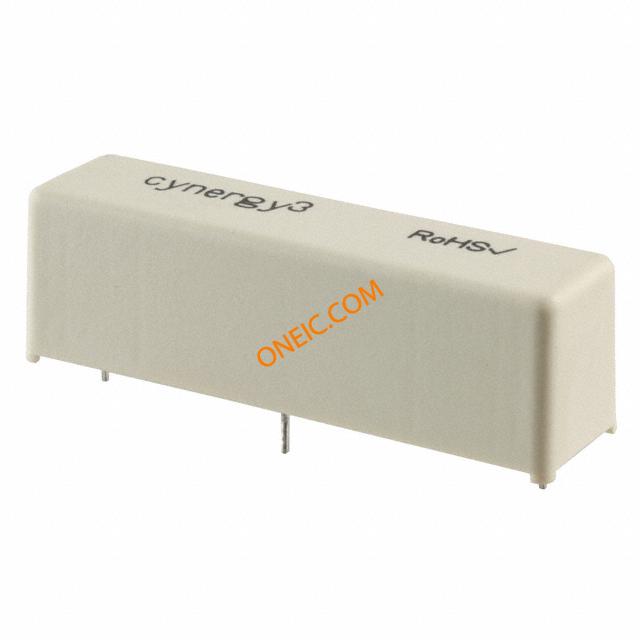

Sensata Technologies Holding N.V.具有SPST-NO配置的高电压reed继电器，适用于多种安装选项
系列图片（15 张）
文档与媒体
常见问答
DAR71210 sensors,switches&relay - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 供电电压 | 开关电流 | 安装类型 | 典型触点布局 | 类型 | 卡标准 | 隔离 | 开关电压 | 触头类型 | 标准包装数量 | RoHS | 线圈类型 | 电阻 | 线圈电流 | 释放时间 | 线圈电阻 | 接触电阻 | Vgs(th)（最大）@ Id | 最大开关负载 | 绝缘电阻 | 集电极-发射极饱和电压（最大）@ Vge, Ic | 触点额定电流 | 通态电流（It (RMS)）（最大） | 包装方式 | 触点形式 | 触头材料 | 端接样式 | 接触件端接 | 继电器类型 | 释放值 | 必须动作（继电器术语，指必须吸合） | 动作时间 | 工作温度 | 其他名称 | 材料（通用） | 总线连接 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RELAY REED SPST 3A 12V Reed Relays SPST-NO 3A 12VDC 150Ohm Thru-Hole RELAY;10KV12VSPNORHODIUM-PCBMOUNT Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | 0 | - | 12VDC | 3 Amps | Through Hole | 1A SPST-NO | Relays | Reed Relay | 10 kv | 1000VAC, 1000VDC - Max | Rhodium | 20 | RoHS Compliant Part | Non Latching | 240 ohm | 80mA | 2ms | 150 Ohms | 50 ohms (15 ohms) | 1.25 VDC | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium (Rh) | PC Pin | 17 kv | Reed | 1.25 V | 9 V | 3ms | -20°C ~ 70°C | - | - | - | |
 RELAY REED SPST 3A 12V Reed Relays SPST-NO 3A 12VDC 150Ohm RELAY;10KV12VSPNORHODIUM-FLYINGLEADHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Flying Leads Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | 0 | - | 12VDC | 3 Amps | Through Hole | 1A SPST-NO | Relays | Reed Relay | 10 kv | 1000VAC, 1000VDC - Max | Rhodium | 20 | RoHS Compliant Part | Non Latching | 240 ohm | 80mA | 2ms | 150 Ohms | 50 ohms (15 ohms) | 1.25 VDC | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium (Rh) | PC Pin, Wire Leads | 17 kv | Reed | 1.25 V | 9 V | 3ms | -20°C ~ 70°C | DAR71210F-ND | - | - | |
 RELAY REED SPST 3A 12V Reed Relays SPST-NO 3A 12VDC 150Ohm Panel Mount RELAY;10KV12VSPNORHODIUM-SOLDERTURRETHVCONTACTCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | 0 | - | 12VDC | 3 Amps | Chassis Mount | 1A SPST-NO | Relays | Reed Relay | 10 kv | 1000VAC, 1000VDC - Max | Rhodium | 20 | RoHS Compliant Part | Non Latching | 240 ohm | 80mA | 2ms | 150 Ohms | 50 ohms (15 ohms) | 1.25 VDC | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Tray | SPST-NO (1 Form A) | Rhodium (Rh) | Solder Turret | 17 kv | Reed | 1.25 V | 9 V | 3ms | -20°C ~ 70°C | DAR71210P-ND | - | - | |
 RELAY REED SPST 3A 12V Reed Relays SPST-NO 3A 12VDC 150Ohm Thru-Hole RELAY;10KV12VSPNORHODIUM-PCBMOUNT1/4SPADEHVCONNECTIONS Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | 0 | - | 12VDC | 3 Amps | Chassis Mount | 1A SPST-NO | Relays | Reed Relay | 10 kv | 1000VAC, 1000VDC - Max | Rhodium | 20 | RoHS Compliant Part | Non Latching | 240 ohm | 80mA | 2ms | 150 Ohms | 50 ohms (15 ohms) | 1.25 VDC | 10^9 operations | 10^10 ohms (10^13 ohns) | 9 VDC | 3A | 4 A | Bulk | SPST-NO (1 Form A) | Rhodium (Rh) | Quick Connect - 0.250" (6.3mm) | 17 kv | Reed | 1.25 V | 9 V | 3ms | -20°C ~ 70°C | DAR71210S-ND | - | - | |
 RELAY REED HV 10KV N/O 12VDC PCB RELAY;10KV12VSPNORHODIUM-PANELMOUNTSTUDSSOLDERTURRETCOIL/HVCONTACT Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: Base Mount Switching Current: 3 Amps Switching Voltage: - Sensata Technologies Holding N.V. | 0 | - | 12 VDC | 3 Amps | Base Mount | 1A SPST-NO | Relays | Reed Relay | - | - | Rhodium | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 10KV 12V SPNO Rhodium - PCB mount - HR Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 2 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | 0 | - | 12 VDC | 2 Amps | PC Board | 1A SPST-NO | Relays | Reed Relay | 10kV | 1000 Volts | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Rhodium | PC Board | |
 10KV 12V SPNO Rhodium - Flying Lead HV contact connections - HR Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 2 Amps Switching Voltage: 1000 Volts Sensata Technologies Holding N.V. | 0 | - | 12 VDC | 2 Amps | PC Board | 1A SPST-NO | Relays | Reed Relay | 10kV | 1000 Volts | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Rhodium | Flying Leads | |
 Reed Relay, Rhodium, SPST-NO, 12 VDC, DA Series, Through Hole, 150 ohm, 3 A Sensata Technologies Holding N.V. | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Reed Relay, Rhodium, SPST-NO, 12 VDC, DA Series, Through Hole, 150 ohm, 3 A Sensata Technologies Holding N.V. | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
