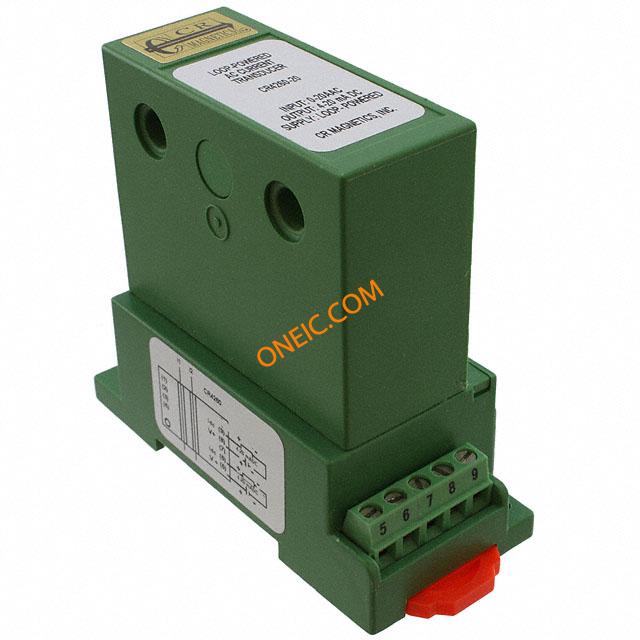

CR4260 sensors, transducer 系列
CR Magnetics Inc.AC current transmitters and sensors for various amperage ranges
系列图片（2 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
CR4260 sensors, transducer - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 输出端 | 精度 | 频率 | 传感器类型 | 响应时间 | 供电电压 | 感应电流 | 包装方式 | 极化 | 安装类型 | 封装形式 | 工作温度 | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | ¥782.71 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 30A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | Q3045255 |
 | 10 | ¥782.71 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 15A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | - |
 | 10 | ¥782.71 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 20A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | - |
| 10 | ¥782.71 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 5A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | - |
| 10 | ¥782.71 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 25A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | - |
| 10 | ¥782.71 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 0.5A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | - |
| 10 | ¥782.71 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 10A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | - |
| 0 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 50A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | - | |
| 0 | - | 1 | 4 ~ 20mA DC | ±0.5% | 20Hz ~ 4kHz | Current Sensor | 250ms | 24V | 40A | Bulk | Unidirectional | DIN Rail, Panel | Module | 0°C ~ 50°C | - |
