CJ40-FP 系列
Pepperl+Fuchs SE40mm capacitive proximity sensors for AC/DC power, IP65 rated
系列图片（4 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
CJ40-FP - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 输出端 | 输出类型 | 负载电流 | 最大频率 | 供电电压 | 开关电流 | 开关频率 | 最小供电电压 | 保护电压（VP）（2416） | 尺寸 | 深度 | 宽度 | 长度 | 端子类型 | 连接器类型 | 壳体材料 | 面板安装类型 | 尺寸/外形 | 供应商器件封装 | 外形 | 样式 | 连接方式 | 密封等级 | 工作范围 | 开关次数 | 防护等级 | 检测能力 | 工作温度 | 保护特性 | 额定电压 | 过载保护 | 反极性保护 | 直流击穿电压（标称） | 短路电流额定值（SCCR） | 最大交流电压 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

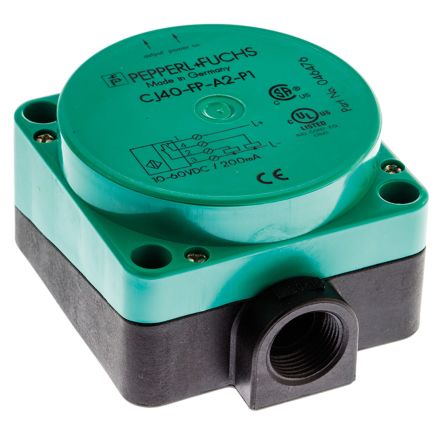

 CJ40-FP-A2-P1 40mm Capacitive Proximity Sensor, PNP, 200mA, IP65 40MMFLATPACKDCPOWERED Capacitive sensor 40 mm 10...60 VDC NC/NO, CJ40-FP-A2-P1, Pepperl+Fuchs Pepperl + Fuchs 电容式传感器 40 mm length 80mm PNP supply voltage 10 → 60 V 直流 IP65 Pepperl + Fuchs | 10 | ¥1962.33 | - | NC/NO | PNP | 200 mA | 10 Hz | 10 → 60 V dc | 200 mA | 0 → 10 Hz | 10...60 VDC | IP 65 | 80 x 52.5 x 80 mm | 52.5mm | 80mm | 80mm | Screw | 螺钉 | PBT, POM | not flush | 80 x 80 x 52.5 mm | Block | square | 块状 | Screw Terminal | IP65 | 40 mm | 40 mm | IP65 | 40 mm | +70°C | Yes | 60V | 是 | 是 | 60V | Yes | - |

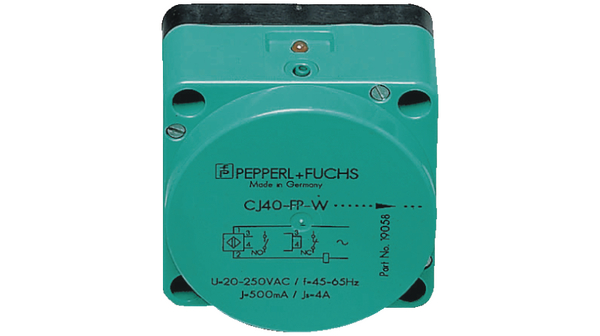

CJ40-FP-W-P1 40mm Capacitive Proximity Sensor, 500mA, IP65 40MMFLATPACKACPOWERED Capacitive sensor 40 mm 20...253 VAC NC/NO, CJ40-FP-W-P1, Pepperl+Fuchs Pepperl + Fuchs 电容式传感器 40 mm length 80mm PNP supply voltage 20 → 253 V 交流 IP65 Pepperl + Fuchs | 10 | ¥4290.35 | - | NC/NO | PNP | 500 mA | 10 Hz | 20 → 253 V ac | 500 mA | 0 → 10 Hz | 20...253 VAC | IP 65 | 80 x 52.5 x 80 mm | 52.5mm | 80mm | 80mm | Screw | 螺钉 | PBT, POM | not flush | 80 x 80 x 52.5 mm | Block | square | 块状 | Screw Terminal | IP65 | 40 mm | 40 mm | IP65 | 40 mm | +70°C | - | - | - | - | - | - | 253V |
 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
CJ40-FP-A0-P1 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
CJ40-FP-A2 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
CJ40-FP-A2-P4-V1 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
CJ40-FP-W-P2 Pepperl + Fuchs | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 1 页
1
