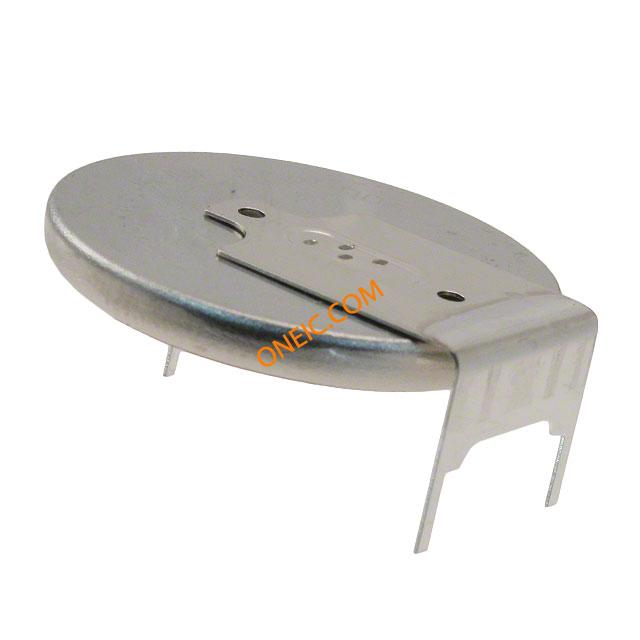

BR-2330A battery product 系列
Panasonic CorporationLithium coin 3V 255mAh batteries
系列图片（12 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
BR-2330A battery product - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 容量（如电池容量、线径容量等） | 额定电压 | 尺寸/外形 | 端接样式 | 电池规格 | 电池化学类型 | 放电率 | 运输信息 | 电池节数 | 重量 | 存储器 | 形状 | 外径 | 位数 | 外壳尺寸-插件 | 印刷电路板数量 | 电压 | 电池类型与功能 | 工作温度 | 欧盟RoHS | 最小起订量 | 单位包装 | 汽车级 | 无铅定义 | 认证机构 | 尺寸 | 包装方式 | 触头类型 | 外形 | 技术 | 温度 | 其他名称 | 零件号别名 | 类型 | 电池系列 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 0 | - | 360 | Lead free / RoHS compliant by exemption | 255mAh | 3V | 0.91" Dia x 0.12" H (23.0mm x 3.0mm) | PC Pin (Horizontal Mount) | Coin, 23.0mm | Lithium | 30µA | Due to possible restrictions, a change in ship method may be required. | 1 | - | No | Coin | 23 | 2 | 2.95 | 2 | - | - | - | RoHS Not Applicable | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 BR-2330A/GAN BR-2330A/GAN LITHIUM BATT LITH COIN 3V HITEMP PC PINS LITH 3V 255MAH 3PINH leadfree Panasonic Corporation | 0 | - | 200 | Lead free / RoHS compliant by exemption | 255mAh | 3V | 0.91" Dia x 0.12" H (23.0mm x 3.0mm) | PC Pin (Horizontal Mount) | Coin, 23.0mm | Lithium | 30µA | Due to possible restrictions, a change in ship method may be required. | 1 | 0.07 g | - | - | - | - | - | - | 3 V | - | - | - | 1200 | 400 | NO | Leadfree | UN 38.3 | 2330 | TRAY | 3PINH | COIN | LITH | -40 TO 125 °C | - | - | - | - | |
 | 0 | - | 200 | Lead free / RoHS compliant by exemption | 255mAh | 3V | 0.91" Dia x 0.12" H (23.0mm x 3.0mm) | SMD (SMT) Tab | Coin, 23.0mm | Primary | 30µA | Due to possible restrictions, a change in ship method may be required. | 1 | 3.2 | No | Coin | 23.1 | 2 | 2.95 | 2 | 3 | Non-Rechargeable | 80 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 4439 | ¥8.04 | - | 200 | Lead free / RoHS compliant by exemption | 255mAh | 3V | 0.91" Dia x 0.12" H (23.0mm x 3.0mm) | PC Pin (Vertical Mount) | Coin, 23.0mm | Lithium | 30µA | Due to possible restrictions, a change in ship method may be required. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 10 | ¥7.70 | Coin Cell Battery | 360 | Not Applicable | 255 mAh | 3 V | 0.90" Dia x 0.11" H (23.0mm x 3.0mm) | Tabs | Coin, 23.0mm | Lithium | - | - | - | 0.11 oz (3.13g) | - | - | - | - | - | - | - | Non-Rechargeable | - 30 C to + 80 C | - | - | - | - | - | - | - | - | - | - | - | - | BR-2330A/HBE | BR-2300A/HB BR-2330A/HBN | Coin Cell Battery | BR2330A |
BR-2330A/GAK Panasonic Semiconductor | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 1 页
