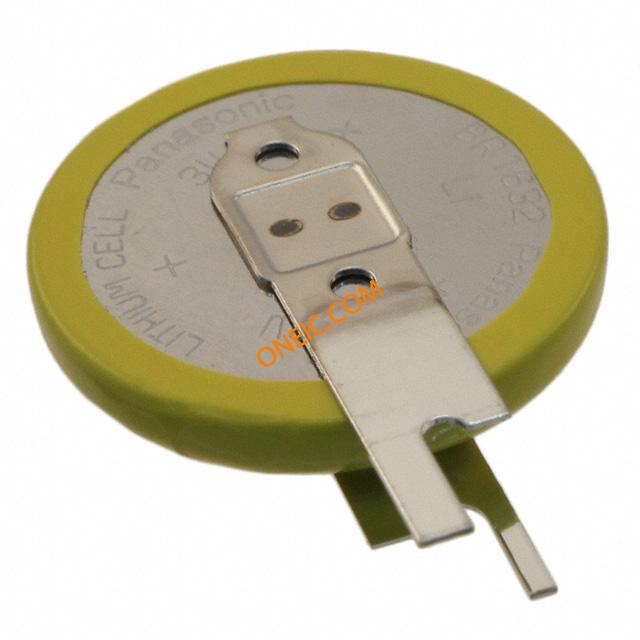

BR-1632 br1632 系列
Panasonic Corporation各种特性的锂纽扣电池
松下的BR-1632系列是一种锂纽扣电池，适用于各种小型电子设备。这些电池具有不同的容量和化学成分，使其适合需要紧凑电源的应用。如果你正在开发计算器、手表、遥控器或医疗设备等小工具，这些电池可能非常适合。值得注意的是，它们具有较高的能量密度，能够在非常小的体积内提供大量的电力。当工程师需要在有限的空间内提供可靠且持久的电力而不影响性能时，往往会选用这种类型的电池。另一个实用的特点是它们较低的自放电率，这意味着即使在不使用的情况下，它们也能长时间保持电量。这使得它们非常适合那些很少通电但需要随时可用的设备。总体而言，BR-1632系列为那些对尺寸和性能有严格要求的项目提供了可靠的解决方案。
系列图片（20 张）
文档与媒体
PDF 文档
PDF 文档
PDF 文档
PDF 文档
PDF 文档
常见问答
内容由 AI 生成，仅供参考
加载中...
03
BR-1632 br1632 - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 容量（如电池容量、线径容量等） | 放电率 | 额定电压 | 尺寸/外形 | 端接样式 | 运输信息 | 电池规格 | 电池化学类型 | 汽车级 | 无铅定义 | 认证机构 | 电压 | 电池节数 | 尺寸 | 高度 | 重量 | 直径 | 包装方式 | 触头类型 | 外形 | 技术 | 电池类型与功能 | 温度 | 工作温度 | 欧盟RoHS | 存储器 | 形状 | 安装类型 | 外径 | 位数 | 外壳尺寸-插件 | 印刷电路板数量 | 零件号别名 | 工厂包装数量 | 类型 | 电池系列 | 产品特性 | 系列 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 18000 | 50: ¥8.1903 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Lithium Coin 3V 120mAh Primary BATT LITH COIN 3V HITEMP PC PINS LITH 3V 120MAH 3PINH leadfree Panasonic Corporation | 0 | - | 150 | Lead free / RoHS compliant by exemption | 0.12 Ah | 30µA | 3V | 0.63" Dia x 0.13" H (16.0mm x 3.2mm) | PC Pin (Horizontal Mount) | Due to possible restrictions, a change in ship method may be required. | Coin, 16.0mm | Lithium | NO | Leadfree | UN 38.3 | 3 V | 1 | 1632 | 3.2 mm | 1.5 g | 16 mm | TRAY | 3PINH | COIN | LITH | Non-Rechargeable | -40 TO 125 °C | -40 °C | RoHS Not Applicable | No | Coin | Through Hole | 16 | 2 | 3.2 | 2 | - | - | - | - | High Temperature | - | |
 Coin 120mAh Primary BATT LITH HITEMP 120MAH PC PINS LITH 3V 120MAH 2PINH leadfree Panasonic Corporation | 10 | 600: ¥8.0594 | - | 600 | Lead free / RoHS compliant by exemption | 120mAh | 30µA | 3V | 0.63" Dia x 0.13" H (16.0mm x 3.2mm) | PC Pin (Horizontal Mount) | Due to possible restrictions, a change in ship method may be required. | Coin, 16.0mm | Primary | NO | Leadfree | UN 38.3 | 3 V | 1 | 1632 | 3.2 mm | 1.5 g | 16 mm | TRAY | 2PINH | COIN | LITH | Non-Rechargeable | -40 TO 125 °C | - | RoHS Not Applicable | No | Coin | Through Hole | 16.1 | 2 | 3.75 | 2 | - | - | - | - | - | - |
 BATT LITH COIN 3V CELL PC PINS Coin Cell Battery 3V 120mAH 2 PIN HORIZ W/INSUL LITH 3V 120MAH 2PINH leadfree Panasonic - BSG | 10 | 1: ¥85.068 | Coin Cell Battery | 150 | Not Applicable | 120mAh | 30µA | 3V | 0.63" Dia x 0.13" H (16.0mm x 3.2mm) | PC Pin (Horizontal Mount) | Due to possible restrictions, a change in ship method may be required. | Coin, 16.0mm | Lithium | NO | Leadfree | UN 38.3 | 3 V | 1 | 1632 | 3.2 mm | 1.5 g | 16 mm | TRAY | 2PINH | COIN | LITH | Non-Rechargeable | -30 TO 80 °C | - 30 C to + 80 C | - | - | - | - | - | - | - | - | BR-1632/HFN BR1632-1HF BR1632-1HFE | 150 | Coin Cell Battery | BR1632 | - | BR1632 |
 | 2208 | 5: ¥16.32 | - | 150 | Lead free / RoHS compliant by exemption | 120mAh | 30µA | 3V | 0.63" Dia x 0.13" H (16.0mm x 3.2mm) | PC Pin (Vertical Mount) | Due to possible restrictions, a change in ship method may be required. | Coin, 16.0mm | Lithium | NO | Leadfree | UN 38.3 | 3 V | 1 | 1632 | 3.2 mm | 0.04 g | 16 mm | TRAY | 2PINV | COIN | LITH | - | -40 TO 125 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 85719 | 1: ¥13.192 | - | 240 | Lead free / RoHS compliant by exemption | 120mAh | 30µA | 3V | 0.63" Dia x 0.13" H (16.0mm x 3.2mm) | SMD (SMT) Tab | Due to possible restrictions, a change in ship method may be required. | Coin, 16.0mm | Lithium | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 4347 | 1: ¥13.328 | Coin Cell Battery | 600 | Not Applicable | 120mAh | 30µA | 3V | 0.63" Dia x 0.13" H (16.0mm x 3.2mm) | PC Pin (Vertical Mount) | Due to possible restrictions, a change in ship method may be required. | Coin, 16.0mm | Lithium | - | - | - | - | - | - | - | - | - | - | - | - | - | Non-Rechargeable | - | - 30 C to + 80 C | - | - | - | - | - | - | - | - | BR-1632/V1AN | 600 | Coin Cell Battery | BR1632 | - | - |
