BPF2012 signal conditioning 系列
Yageo CorporationBand pass filters for 2.45G and 5G signals

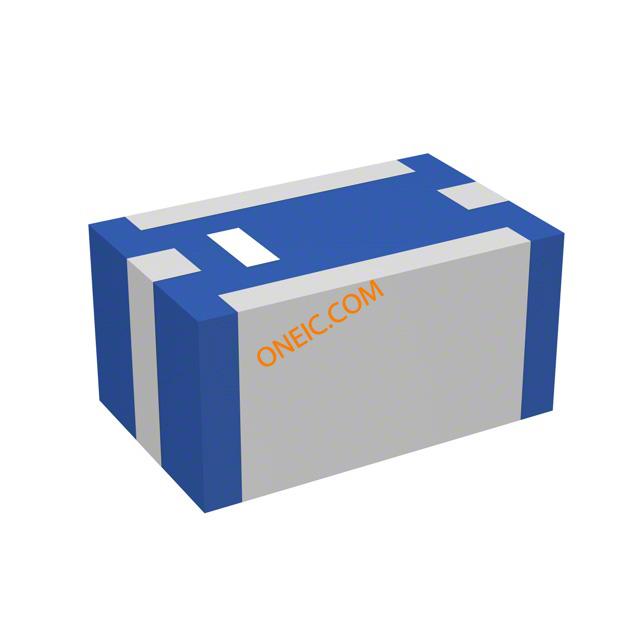

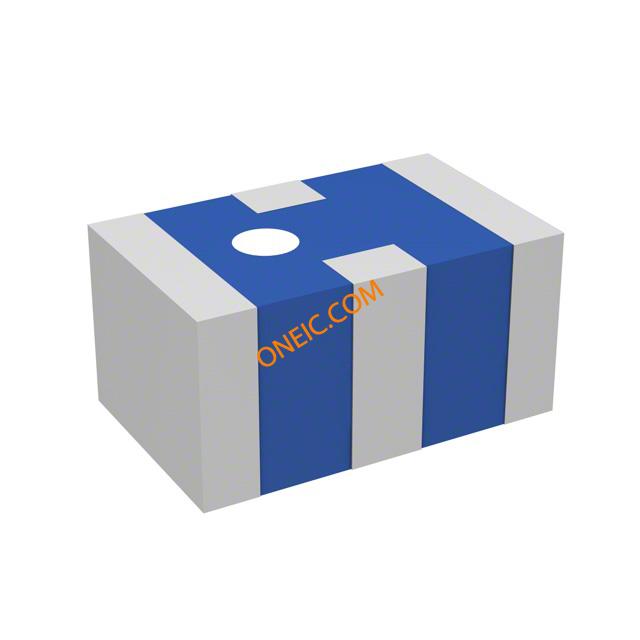

系列图片（2 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
BPF2012 signal conditioning - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | RoHS | 频率 | 插入损耗 | 频率范围 | 包装方式 | 封装形式 | 端接样式 | 类型 | 系列 | 其他名称 | 标准包装数量 | 滤波器类型 | 高度（最大） | 安装类型 | 尺寸/外形 | 工作温度 | 纹波 | 阻抗 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 4000 | ¥2.25 | Signal Conditioning | Band Pass Filters | Lead free / RoHS Compliant | 5.425GHz Center | 1.5dB | 4900 MHz to 5950 MHz | Tape & Reel (TR) | 0805 (2012 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | BPF2012 | 311-1561-1 | 4,000 | Band Pass | 0.045" (1.15mm) | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.6dB | 50 Ohms |
 | 10 | ¥0.83 | Signal Conditioning | Band Pass Filters | Lead free / RoHS Compliant | 5.5GHz Center | 1.8dB | 5150 MHz to 5850 MHz | Tape & Reel (TR) | 0805 (2012 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | BPF2012 | 311-1562-1 | 4,000 | Band Pass | 0.039" (1.00mm) | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - 40 C to + 85 C | 0.5dB | 50 Ohms |
 | 10 | ¥0.97 | Signal Conditioning | Band Pass Filters | Lead free / RoHS Compliant | 2.45GHz Center | 2.5dB | 2400 MHz to 2500 MHz | Tape & Reel (TR) | 0805 (2012 Metric) | SMD/SMT | Band Pass Filter | BPF2012 | 311-1563-1 | 4,000 | Band Pass | 0.020" (0.50mm) | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - 40 C to + 85 C | - | 50 Ohms |
| 10 | ¥0.75 | Signal Conditioning | Band Pass Filters | Lead free / RoHS Compliant | 2.45GHz Center | 2.6dB | 2400 MHz to 2500 MHz | Tape & Reel (TR) | 0805 (2012 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | BPF2012 | 311-1565-1 | 4,000 | Band Pass | 0.045" (1.15mm) | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - 25 C to + 85 C | 0.6dB | - |
| 10 | ¥0.75 | Signal Conditioning | Band Pass Filters | Lead free / RoHS Compliant | 2.45GHz Center | 1.2dB | 2400 MHz to 2500 MHz | Tape & Reel (TR) | 0805 (2012 Metric), 4 PC Pad | SMD/SMT | Band Pass Filter | BPF2012 | 311-1564-1 | 4,000 | Band Pass | 0.041" (1.05mm) | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - 40 C to + 85 C | 0.6dB | - |
| 10 | ¥0.75 | Signal Conditioning | Band Pass Filters | RoHS Compliant | 2.5 GHz | 2 dB | 2400 MHz to 2500 MHz | Reel | 2 mm x 1.25 mm x 0.75 mm | SMD/SMT | Band Pass Filter | BPF2012 | - | - | - | - | - | - | - 40 C to + 85 C | - | - |
