BG0702-B05 fans, thermal management 系列型号列表/参数/数据手册

MinebeaMitsumi Inc. 的 BG0702-B05 风扇系列是一款适用于多种热管理应用的直流24V吹风机。这些风扇适用于需要可靠气流和冷却的各种场合，例如服务器机架、工业控制面板和电子外壳。如果你的项目需要稳定气流而不愿使用复杂的交流供电系统，那么这些风扇是一个不错的选择。

值得一提的是，它们具有坚固的制造质量。能够在恶劣环境中长时间保持性能。当工程师需要在狭小空间内实现简单有效的热管理解决方案时，往往会选用这种风扇。24V 直流输入也使它们能够与各种电源兼容，在许多工业环境中这是一个很大的优势。

另一个实用的观察点是它们较低的噪音水平。虽然不是最安静的风扇，但它们仍然在噪音和气流之间提供了良好的平衡，使其适合那些可以接受中等噪音水平但对高气流有较高要求的应用场景。总体而言，如果你正在寻找一种可靠且多功能的热管理解决方案，BG0702-B05 系列绝对值得考虑。

制造商零件编号	库存	价格	产品类别	标准包装数量	噪声	功率（瓦）	电压范围	额定电压	最大额定电流	RPM	重量	风量	风扇类型	端接方式	轴承类型	静压	刀片材料	框架材料	尺寸/外形	额定寿命	工作温度	产品特性	交货时间	子类别	RoHS	系列	其他名称	SVHC	欧盟RoHS	海关税号	转速	输入范围	量程（°/s）	额定功率	输出电流	供电电压	供电类型	平均正向功率	深度	宽度	高度	材料（通用）	流量 (CFM)	流量（SCFM）	高度（最大）	安装类型	端子类型	壳体材料	总长度	最大压力	连接器颜色	引线长度	功能	结工作温度
4 BG0702-B055-000-00 DC Blower Ball Bearing 24V 0.14A 3.36W 3600RPM 9.5CFM 43dB Flange Mount BLOWER DC 24V 75X25 3600RPM LEAD FAN, BLOWER, 75MM, 24VDC NMB Technologies Corporation	174	1: ¥81.54	-	90	43 dB	3.36W	10 ~ 27.6VDC	24VDC	0.140A	3600 RPM	0.198 lb (89.81g)	9.5 CFM (0.269m³/min)	Blower	Lead Wire	Ball	0.614 in H2O (153.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	-	98 Days	Not Specified	Lead free / RoHS Compliant	:BG0702	-	:No SVHC (20-Jun-2013)	Compliant	84145920	Counter Clockwise	10 to 27.6	:3600rpm	3.36	0.14	:24VDC	:Wire Leaded	:3.36W	:25mm	:75.7mm	25	:Plastic	:0.27m³/min	:9.5cu.ft/min	:75.7mm	Flange Mount	:Flying Lead	Plastic	75.7	0.61inH2O	:Black	:200mm	:DC	:70000h
BG0702-B05-300-0 BLOWER DC 24V 75X25 3000 RPM NMB Technologies Corporation	10	450: ¥58.174	-	450	39 dB	2.40W	10 ~ 27.6VDC	24VDC	0.100A	3000 RPM	0.198 lb (89.81g)	7.8 CFM (0.221m³/min)	Blower	2 Wire Leads	Ball	0.377 in H2O (94.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B05-400-0 BLOWER DC 24V 75X25 3300 RPM NMB Technologies Corporation	10	450: ¥58.174	-	450	41 dB	2.64W	10 ~ 27.6VDC	24VDC	0.110A	3300 RPM	0.198 lb (89.81g)	8.5 CFM (0.241m³/min)	Blower	2 Wire Leads	Ball	0.497 in H2O (124.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B053-00L-00 BLOWER DC 24V 75X25 LOCK RTR NMB Technologies Corporation	10	450: ¥64.192	-	90	39 dB	2.40W	10 ~ 27.6VDC	24VDC	0.100A	3000 RPM	0.198 lb (89.81g)	7.8 CFM (0.221m³/min)	Blower	3 Wire Leads	Ball	0.377 in H2O (94.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	Locked Rotor Sensor	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B053-00S-00 BLOWER DC 24V 75X25 TAC NMB Technologies Corporation	10	450: ¥64.192	-	90	39 dB	2.40W	10 ~ 27.6VDC	24VDC	0.100A	3000 RPM	0.198 lb (89.81g)	7.8 CFM (0.221m³/min)	Blower	3 Wire Leads	Ball	0.377 in H2O (94.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	Speed Sensor (Tach)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B054-00L-00 BLOWER DC 24V 75X25 LOCK RTR NMB Technologies Corporation	10	450: ¥64.192	-	90	41 dB	2.64W	10 ~ 27.6VDC	24VDC	0.110A	3300 RPM	0.198 lb (89.81g)	8.5 CFM (0.241m³/min)	Blower	3 Wire Leads	Ball	0.497 in H2O (124.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	Locked Rotor Sensor	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B054-00S-00 BLOWER DC 24V 75X25 TAC NMB Technologies Corporation	10	450: ¥64.192	-	90	41 dB	2.64W	10 ~ 27.6VDC	24VDC	0.110A	3300 RPM	0.198 lb (89.81g)	8.5 CFM (0.241m³/min)	Blower	3 Wire Leads	Ball	0.497 in H2O (124.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	Speed Sensor (Tach)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B055-00L-00 BLOWER DC 24V 75X25 LOCK RTR NMB Technologies Corporation	10	450: ¥64.192	-	90	43 dB	3.36W	10 ~ 27.6VDC	24VDC	0.140A	3600 RPM	0.198 lb (89.81g)	9.5 CFM (0.269m³/min)	Blower	3 Wire Leads	Ball	0.614 in H2O (153.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	Locked Rotor Sensor	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B055-00S-00 BLOWER DC 24V 75X25 TAC NMB Technologies Corporation	10	450: ¥64.192	-	90	43 dB	3.36W	10 ~ 27.6VDC	24VDC	0.140A	3600 RPM	0.198 lb (89.81g)	9.5 CFM (0.269m³/min)	Blower	3 Wire Leads	Ball	0.614 in H2O (153.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	Speed Sensor (Tach)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B053-000-00 BLOWER DC 24V 75X25 3000RPM NMB Technologies	10	90: ¥70.9532	-	90	39 dB	2.40W	10 ~ 27.6VDC	24VDC	0.100A	3000 RPM	0.198 lb (89.81g)	7.8 CFM (0.221m³/min)	Blower	2 Wire Leads	Ball	0.377 in H2O (94.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	-	98 Days	Not Specified	Lead free / RoHS Compliant	*	07525GA-24L-AA-00	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BG0702-B054-000-00 BLOWER DC 24V 75X25 3300RPM NMB Technologies	10	90: ¥70.9532	-	90	41 dB	2.64W	10 ~ 27.6VDC	24VDC	0.110A	3300 RPM	0.198 lb (89.81g)	8.5 CFM (0.241m³/min)	Blower	2 Wire Leads	Ball	0.497 in H2O (124.0 Pa)	Plastic	Plastic	Square - 75.7mm L x 75.7mm H x 25mm W	70000 hrs @ 25°C	14 ~ 158°F (-10 ~ 70°C)	-	98 Days	Not Specified	Lead free / RoHS Compliant	*	07525GA-24M-AA-00	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

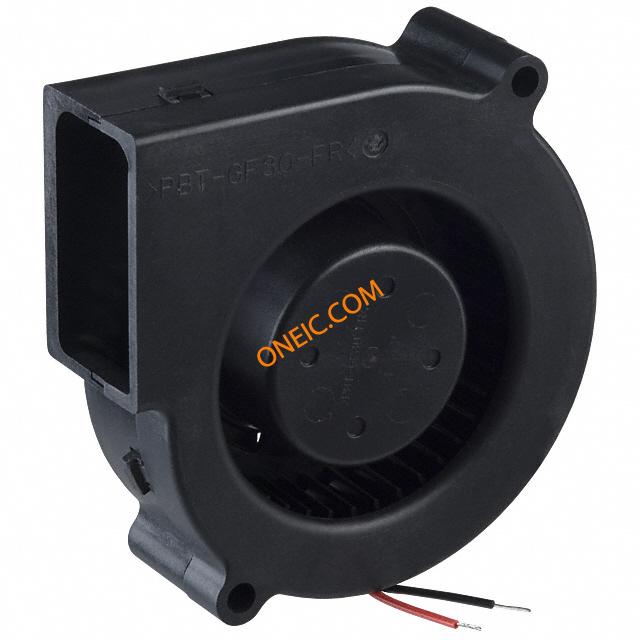

BG0702-B05-500-0 BLOWER DC 24V 75X25 3600RPM LEAD NMB Technologies Corporation	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
