BCAP1200 supercapacitors / ultracapacitor 系列

Supercapacitors with 2.7V and 1200F capacity

文档与媒体

datasheet_k2_series_1015370.pdf

1014627_boostcap_product_guide.pdf

maxwell_technologies_product_comparison_matrix.pdf

k2series_ds_10153704.pdf

DATASHEET_K2_SERIES_1015370.PDF

内容由 AI 生成，仅供参考

加载中...

共 6 个型号

制造商零件编号	库存	价格	产品类别	产品	零件号别名	RoHS	容差	电容	额定电压	ESR（等效串联电阻）	直径	封装形式	尺寸/外形	端接样式	系列	工作温度	额定功率	漏电流	最大额定电流	引脚直径	工厂包装数量	包装方式	机械寿命

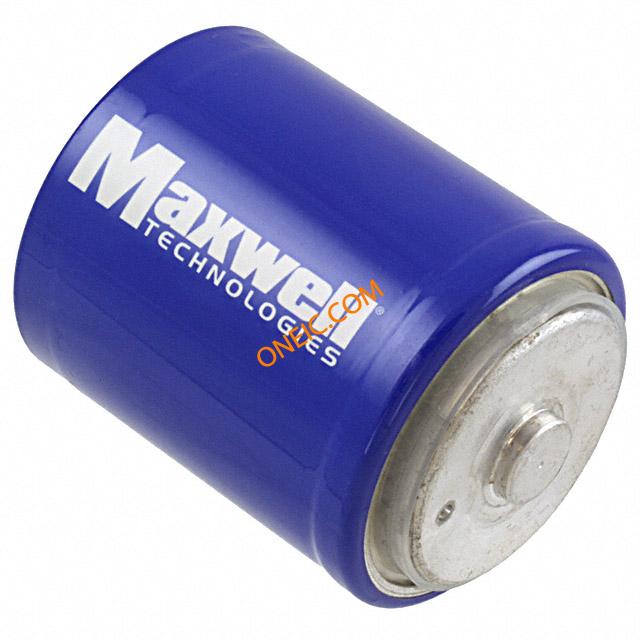

2 BCAP1200 P270 K05 Supercapacitors / Ultracapacitors 2.7V 1200F Weldable post CAP SUPER 1200F 2.7V SOLDER POST Maxwell Technologies	10	¥298.999	Supercapacitors / Ultracapacitors	Supercapacitors	108316B	RoHS Compliant	20 %	1200 Farads	2.7 V	0.58 mOhms	60.7 mm	74 mm	60.7 mm Dia. x 74 mm L	Radial	K2	- 40 C to + 65 C	5800 W / kg	2.7 mA	81 A	14 mm	-	-	-

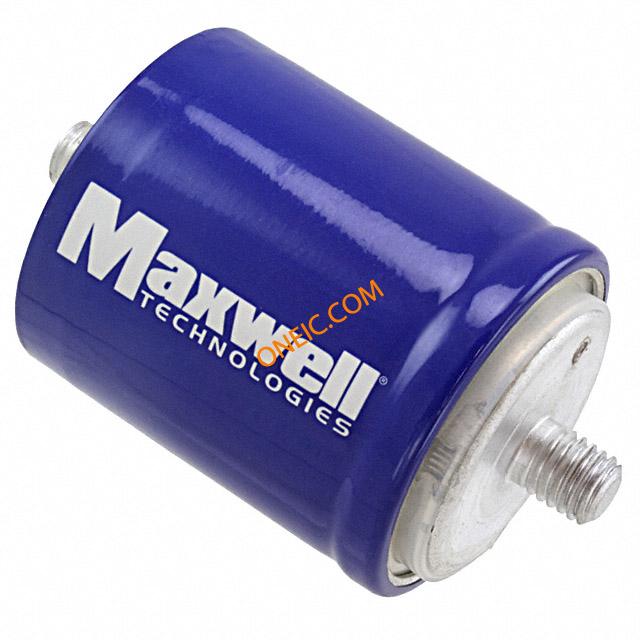

2 BCAP1200 P270 K04 Supercapacitors / Ultracapacitors 2.7V 1200F Threaded terminal CAP SUPER 1200F 2.7V SCREW Maxwell Technologies	55	¥257.40	Supercapacitors / Ultracapacitors	Supercapacitors	108384B	RoHS Compliant	20 %	1200 Farads	2.7 V	0.58 mOhms	60.7 mm	74 mm	60.7 mm Dia. x 74 mm L	Screw	K2	- 40 C to + 65 C	5800 W / kg	2.7 mA	81 A	-	-	-	-
BCAP1200 P270 T05 Supercapacitors / Ultracapacitors 2.7V 1200F Weldable Terminals Maxwell Technologies	10	¥435.196	Supercapacitors / Ultracapacitors	Supercapacitors	107538B	RoHS Compliant	20 %	1200 Farads	2.5 V	0.58 mOhms	60.4 mm	74 mm	60.4 mm Dia. x 74 mm L	Radial	BC	- 40 C to + 65 C	-	-	-	-	30	Box	NRND: Not recommended for new designs.
BCAP1200 P270 T04 BC Series Boostcaps 2.7V 1200F Screw Terminals Maxwell Technologies	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BCAP1200P270K04 Ultracapacitor Maxwell Technologies	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BCAP1200P270K05 Ultracapacitor Maxwell Technologies	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 1 页
