BAR 90 系列
Infineon Technologies AG80V 100MA PIN diodes for various uses
系列图片（4 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
BAR 90 - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 包装方式 | RoHS | 标准包装数量 | 电阻 @ If, F | 电容 @ Vr, F | 最大额定电流 | 最大功耗 | 峰值反向电压（最大） | 封装形式 | 供应商器件封装 | 二极管类型 | 其他名称 | 工厂包装数量 | 系列 | 制造商全称 | 频率范围 | 电压负载调整率 | 峰值脉冲电流（10/1000µs） | 正向电压（最大）@ If | 安装类型 | 类型 | 配置 | 额定寿命 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BAR 90-02LS E6327 Diode PIN Switch 80V 2-Pin TSSLP T/R DIODE PIN SGL 80V 100MA TSSLP-2 infineon technologies | 14000 | 1: ¥3.808 | - | Tape & Reel (TR) | Lead free / RoHS Compliant | 15,000 | 800 mOhm @ 10mA, 100MHz | 0.35@1V pF | 100mA | 150 mW | 80V | 2TSSLP | PG-TSSLP-2 | PIN - Single | BAR 90-02LS E6327CT | - | - | - | UHF | 80 V | 100 mA | 1 V | Surface Mount | Switch | Single | 0.75 us |
 BAR 90-07LRH E6327 PIN Diodes Silicon Deep Trench PIN Diodes DIODE PIN PAR 80V 100MA TSLP-4-7 Infineon Technologies | 0 | - | Tape & Reel (TR) | Lead free / RoHS Compliant | 15,000 | 800 mOhm @ 10mA, 100MHz | 0.35pF @ 1V, 1MHz | 100mA | 250mW | 80V | 4-XFDFN | PG-TSLP-4 (1.2x0.8) | PIN - 2 Independent | - | - | - | - | - | - | - | - | - | - | - | - | |
 BAR 90-02LRH E6327 PIN Diodes Silicon Deep Trench PIN Diodes DIODE PIN SGL 80V 100MA TSLP-2-7 Infineon Technologies | 10 | 1: ¥2.788 | - | Tape & Reel (TR) | Lead free / RoHS Compliant | 15,000 | 800 mOhm @ 10mA, 100MHz | 0.35pF @ 1V, 1MHz | 100mA | 250mW | 80V | SOD-882 | PG-TSLP-2 | PIN - Single | BAR 90-02LRH E6327CT | - | - | - | - | - | - | - | - | - | - | - |
BAR 90-098LRH E6327 PIN Diodes Silicon Deep Trench PIN Diodes DIODE PIN ANTI 80V 100MA TSLP4-7 Infineon Technologies | 0 | - | Tape & Reel (TR) | - | 15,000 | 800 mOhm @ 10mA, 100MHz | 0.35pF @ 1V, 1MHz | 100mA | 250mW | 80V | 4-XFDFN | PG-TSLP-4 (1.2x0.8) | PIN - 2 Independent | - | - | - | - | - | - | - | - | - | - | - | - | |
BAR 90-099LRH E6327 PIN Diodes Silicon Deep Trench PIN Diodes DIODE PIN ANTI 80V 100MA TSLP4-7 Infineon Technologies | 0 | - | Tape & Reel (TR) | Lead free / RoHS Compliant | 15,000 | 800 mOhm @ 10mA, 100MHz | 0.35pF @ 1V, 1MHz | 100mA | 250mW | 80V | 4-XFDFN | PG-TSLP-4 (1.2x0.8) | PIN - 2 Independent | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | Tape & Reel (TR) | Contains lead / RoHS non-compliant | 15,000 | 800 mOhm @ 10mA, 100MHz | 0.35pF @ 1V, 1MHz | 100mA | 250mW | 80V | 4-XFDFN | PG-TSLP-4 (1.2x0.8) | PIN - 2 Independent | - | - | - | - | - | - | - | - | - | - | - | - | |

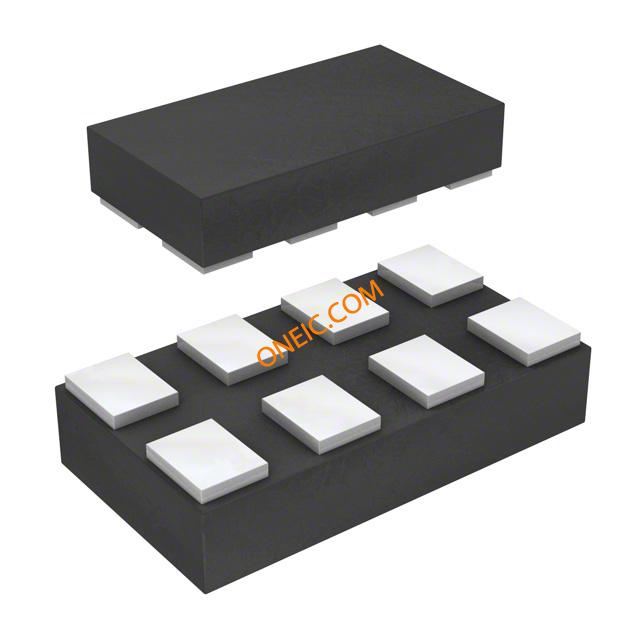

 | 0 | - | Tape & Reel (TR) | Lead free / RoHS Compliant | 15,000 | 800 mOhm @ 10mA, 100MHz | 0.35pF @ 1V, 1MHz | 100mA | 150mW | 80V | 8-XFDFN | PG-TSSLP-8 | PIN - 4 Independent | SP000435922 | - | - | - | - | - | - | - | - | - | - | - | |
 | 5210 | 1: ¥2.108 | - | Reel | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | 15000 | BAR90 | Infineon Technologies | - | - | - | - | - | - | - | - |
| 0 | - | Reel | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | 15000 | BAR90 | Infineon Technologies | - | - | - | - | - | - | - | - |
