APT2X60D semiconductor 系列
Microchip Technology Inc.Power diodes in SOT-227 form factor
系列图片（9 张）
文档与媒体
常见问答
APT2X60D semiconductor - 型号列表
共 11 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 转速 | 测试电流 | 二极管配置 | 最小输入电压 | 反向恢复时间（trr） | 直流反向电压（Vr）（最大） | 平均整流电流（每二极管） | 包装方式 | 安装类型 | 封装形式 | 供应商器件封装 | 二极管类型 | RoHS | 供电电压 | 峰值脉冲电流（8/20µs） | 平均整流电流 Io | 反向关断电压（典型） | 配置 | 工作温度 | 类型 | 制造商全称 | 标准封装名称 | 欧盟RoHS | 连续漏极电流（Id）@ 25°C | 包装数量 | 位数 | 结工作温度 | 产品 | 工厂包装数量 | 宽度 | 高度 | 长度 | 安装样式 | 抗辐射加固 | 整流器类型 | LED正向电压 | 冷却的封装 | 已删除 | 引脚样式 | 商标名 | 反向漏电流 @ Vr | 直流正向电流（If）（最大） | 栅极触发电压 Vgt (最大) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

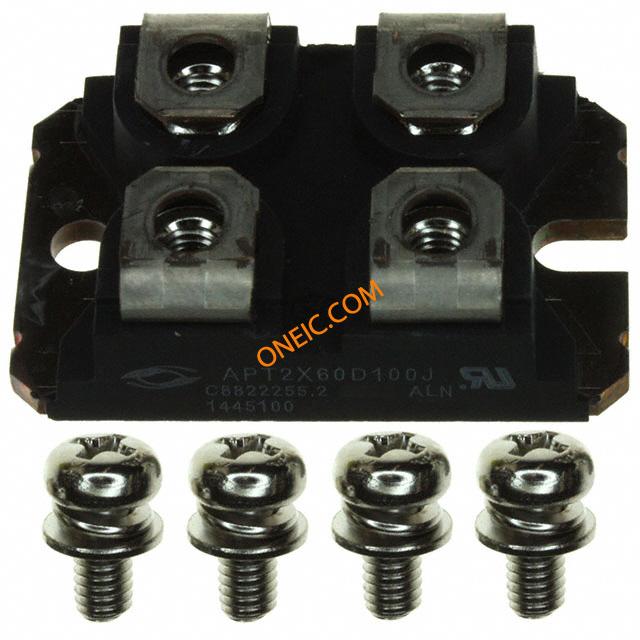

 APT2X60D100J Diode Switching 1KV 55A 4-Pin SOT-227 DIODE DUAL 55A 1000V SOT-227 Rectifiers Fast Recovery Epitaxial Diode - D Microchip Technology Inc. | 0 | - | Rail / Tube | Fast Recovery = 200mA (Io) | 250 uA | 2 Independent | 2.5V @ 60A | 280(Typ) ns | 1000V (1kV) | 55A | Tube | Screw | 4SOT-227 | ISOTOP® | Standard | Lead free / RoHS Compliant | 2.5@60A V | 540 A | 55 A | 1000 V | Dual Anti Parallel | -55 to 175 °C | Switching Diode | - | SOT-227 | Compliant | 55 | SOT-227 | 4 | -55 to 175 | - | - | - | - | - | - | No | Switching Diode | 2.5 | SOT-227 | Compliant | - | - | - | - | - | |

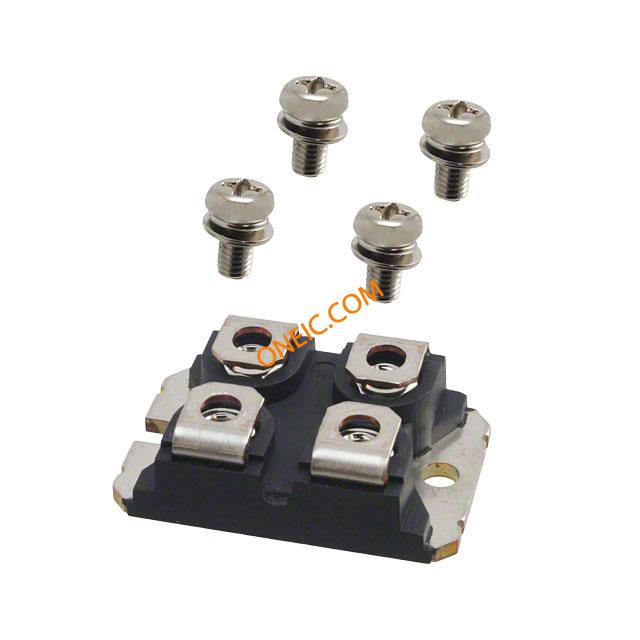

 APT2X60D120J Diode Switching 1.2KV 53A 4-Pin SOT-227 DIODE DUAL 53A 1200V SOT-227 Discrete Semiconductor Modules Fast Recovery Epitaxial Diode - D Microchip Technology Inc. | 0 | - | Rail / Tube | Fast Recovery = 200mA (Io) | 250 uA | 2 Independent | 2.5V @ 60A | 400(Typ) ns | 1200V (1.2kV) | 53A | Tube | Screw | 4SOT-227 | ISOTOP® | Standard | Lead free / RoHS Compliant | 2.5@60A V | 540 A | 53 A | 1200 V | Dual Parallel | -55 to 175 °C | Switching Diode | Microsemi | SOT-227 | Compliant | 53 | SOT-227 | 4 | -55 to 175 | - | - | - | - | - | - | - | - | - | - | - | Screw | - | - | - | - | |
 APT2X60D40J Diode Switching 400V 60A 4-Pin SOT-227 DIODE DUAL 60A 400V SOT-227 Discrete Semiconductor Modules Fast Recovery Epitaxial Diode - D Microchip Technology Inc. | 0 | - | Rail / Tube | Fast Recovery = 200mA (Io) | 250 uA | 2 Independent | 1.5V @ 60A | 37(Typ) ns | 400V | 60A | Tube | Screw | 4SOT-227 | ISOTOP® | Standard | Lead free / RoHS Compliant | 1.5 V | 600 A | 60 A | 400 V | Dual Anti Parallel | -55 to 175 °C | Switching Diode | Microsemi | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 APT2X60D60J Diode Switching 600V 60A 4-Pin SOT-227 DIODE DUAL 60A 600V SOT-227 Rectifiers Fast Recovery Epitaxial Diode - D Microchip Technology Inc. | 0 | - | Rail / Tube | Fast Recovery = 200mA (Io) | 250 uA | 2 Independent | 1.8V @ 60A | 130(Typ) ns | 600V | 60A | Tube | Screw | 4SOT-227 | ISOTOP® | Standard | Lead free / RoHS Compliant | 1.8 V | 600 A | 60 A | 600 V | Dual Anti Parallel | -55 to 175 °C | Switching Diode | Microsemi | - | - | - | - | - | - | Rectifiers | 23 | 25.4 mm | 9.6 mm | 38.2 mm | Screw | - | - | - | - | - | - | ISOTOP | 250 uA | 60 A | 600 V | |

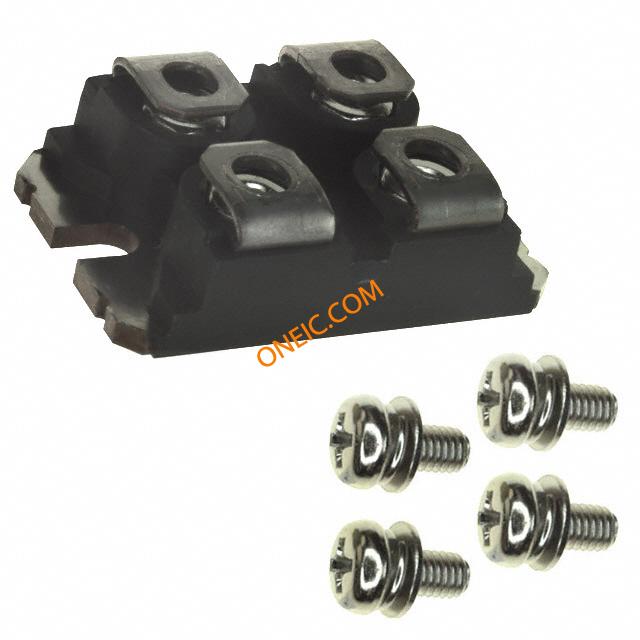

 APT2X60DQ120J Diode Switching 1.2KV 60A 4-Pin SOT-227 DIODE DUAL 60A 1200V SOT-227 Discrete Semiconductor Modules Fast Recovery Epitaxial Diode - DQ Microchip Technology Inc. | 0 | - | Rail / Tube | Fast Recovery = 200mA (Io) | 100 uA | 2 Independent | 3.1V @ 60A | 350(Typ) ns | 1200V (1.2kV) | 60A | Tube | Screw | 4SOT-227 | ISOTOP® | Standard | Lead free / RoHS Compliant | 3.1 V | 540 A | 60 A | 1200 V | Dual Parallel | -55 to 175 °C | Switching Diode | Microsemi | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 APT2X60DQ60J Diode Switching 600V 60A 4-Pin SOT-227 DIODE DUAL 60A 600V SOT-227 Discrete Semiconductor Modules Fast Recovery Epitaxial Diode - DQ Microchip Technology Inc. | 0 | - | Rail / Tube | Fast Recovery = 200mA (Io) | 25 uA | 2 Independent | 2.3V @ 60A | 70(Typ) ns | 600V | 60A | Tube | Screw | 4SOT-227 | ISOTOP® | Standard | Lead free / RoHS Compliant | 2.3 V | 600 A | 60 A | 600 V | Dual Anti Parallel | -55 to 175 °C | Switching Diode | Microsemi | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 APT2X60DQ100J Diode Switching 1KV 60A 4-Pin SOT-227 DIODE DUAL 60A 1000V SOT-227 Discrete Semiconductor Modules Fast Recovery Epitaxial Diode - DQ Microchip Technology Inc. | 0 | - | Rail / Tube | Fast Recovery = 200mA (Io) | 100 uA | 2 Independent | 2.8V @ 60A | 235(Typ) ns | 1000V (1kV) | 60A | Tube | Screw | 4SOT-227 | ISOTOP® | Standard | Lead free / RoHS Compliant | 2.8 V | 540 A | 60 A | 1000 V | Dual Anti Parallel | -55 to 175 °C | Switching Diode | Microsemi | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 APT2X60DC120J Diode 1.2KV 60A 4-Pin SOT-227 DIODE SIC SCHOTTKY 1200V SOT227 Discrete Semiconductor Modules Power Module - SiC Microchip Technology Inc. | 0 | - | Bulk | No Recovery Time > 500mA (Io) | 1200 uA | 2 Independent | 1.8V @ 60A | 0ns | 1200V (1.2kV) | 60A | Bulk | Screw | 4SOT-227 | SOT-227 | Silicon Carbide Schottky | Lead free / RoHS Compliant | 1.8 V | 750 A | 60 A | 1200 V | Dual Anti Parallel | -55 to 175 °C | - | Microsemi | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 APT2X60DC60J Diode Schottky 600V 60A 4-Pin SOT-227 MOD DIODE SIC 600V SOT227 Rectifiers Power Module - SiC Microchip Technology Inc. | 0 | - | Bulk | No Recovery Time > 500mA (Io) | 1200 uA | 2 Independent | 1.8V @ 60A | 0ns | 600V | 60A | Bulk | Screw | 4SOT-227 | SOT-227 | Silicon Carbide Schottky | Lead free / RoHS non-compliant | 1.8 V | 750 A | 60 A | 600 V | Dual Anti Parallel | -55 to 175 °C | Schottky Diode | Microsemi | - | - | - | - | - | - | Rectifiers | 50 | 25.4 mm | 12.2 mm | 38.2 mm | Flange | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 10 | Fast Recovery = 200mA (Io) | 250µA @ 200V | 2 Independent | 1.3V @ 60A | 31ns | 200V | 60A | Tube | Chassis Mount | SOT-227-4, miniBLOC | ISOTOP® | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 10 | Fast Recovery = 200mA (Io) | 250µA @ 300V | 2 Independent | 1.4V @ 60A | 38ns | 300V | 60A | Tube | Chassis Mount | SOT-227-4, miniBLOC | ISOTOP® | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
