cigen-ANT1818

ANT1818 passive component 系列

Yageo Corporation

Yageo Corporation

Antennas for GPS and other frequencies

系列图片（2 张）

文档与媒体

PDF 文档

An_GPS_Proto_18182_SMD_240A_0.pdf

PDF 文档

An_GPS-GNSS_Proto_18184_SMD_Type0B_0.pdf

PDF 文档

An_GPS-GNSS_Proto_18184_SMD_Type0D_0.pdf

PDF 文档

An_PIN_AGPS_18187.1_Type%2030_0.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

ANT1818 passive component - 型号列表

共 9 个型号

制造商零件编号	库存	价格	产品类别	频率	阻抗	天线类型	包装方式	增益	标准包装数量	RoHS	VSWR	宽度	高度	长度	端接方式	高度（最大）	安装类型	安装样式	尺寸/外形	端接样式	系列	技术	色环数	汽车级	无铅定义	供电电压	尺寸	带宽	最大频率	电缆长度

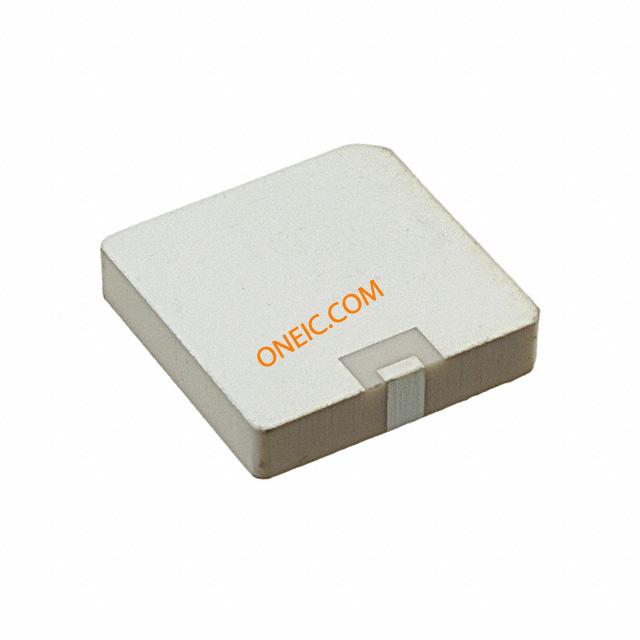

2 ANT1818B00BT1516A PATCH ANT GPS/GLO CP SMD Antennas 1575-1602MHz 50 Ohm PATCH ANTENNA,GPS Yageo	10	1: ¥42.772	Antennas	1575MHz ~ 1609MHz	50 Ohms	Ceramic Patch	Tray	1.9dBi	100	RoHS Compliant	2	18 mm	4 mm	18 mm	Surface Mount	0.157" (4mm)	Surface Mount	SMD/SMT	18 mm L x 18 mm W x 4 mm H	SMD/SMT	ANT1818	GPS/GLONASS Patch Antenna	2	-	-	-	-	-	2	-
ANT1818B00DT1516A PATCH ANT GPS/GLO CP PIN Antennas 1575-1602MHz 50 Ohm PATCH ANTENNA,GPS Yageo	98	1: ¥42.772	Antennas	1575MHz ~ 1609MHz	50 Ohms	Ceramic Patch	Tray	2.7dBi	100	RoHS Compliant	2	18 mm	6 mm	18 mm	Pin	0.18" (4.5mm)	Surface Mount, Through Hole	SMD/SMT	18 mm L x 18 mm W x 6 mm H	SMD/SMT	ANT1818	GPS/GLONASS Patch Antenna	2	-	-	-	-	-	-	-
ANT1818B00AT1575A PATCH ANT GPS CP SMD 18X18X2 MM Antennas 2.4-2.5GHz / 5.15-5.875GHz ANT Yageo	53	1: ¥26.656	Antennas	1.575GHz	50 Ohms	Ceramic Patch	Tray	2dBic	100	RoHS Compliant	2	18 mm	2 mm	18 mm	Surface Mount	0.079" (2mm)	Surface Mount	SMD/SMT	18 mm L x 18 mm W x 2 mm H	SMD/SMT	ANT1818	GPS Patch Antenna	1	-	-	-	-	6 MHz	-	-
ANT1818JB301575A ACTIVE ANT GPS USE 18X18X4 Yageo	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ANT1818JB30B1575A ACTIVE ANT GPS USE 18X18X4 Antennas 1.575GHz 50 Ohm ACTIVE ANTENNA,GPS Yageo	107	1: ¥102.544	Antennas	1575MHz	50 Ohms	Powered, Patch	Bulk	25dB	100	RoHS Compliant	2	18 mm	6 mm	18 mm	IPEX MHF (U.FL)	0.276" (7.00mm)	Surface Mount	SMD/SMT	18 mm L x 18 mm W x 6 mm H	SMD/SMT	ANT1818	GPS Antenna	1	-	-	-	-	28.4 MHz	-	100 mm
ANT1818B00AT1575S GPS Patch antenna SMD 18x18x2 YAGEO	180	1: ¥25.228	-	1575,42 M Hz	50 Ohm	PATCH	TRAY	2.0 dB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	NO	RoHS-conform	GPS	18 mm	-	-	-
ANT1818B00DT1516S GPS/Glonass patch ant.18x18 PIN YAGEO	1179	1: ¥39.236	-	1,58-1,61G Hz	50 Ohm	PATCH	TRAY	2.65 dB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	NO	RoHS-conform	GPS/GLONAS	18 mm	-	-	-
ANT1818B00BT1516S PATCH ANT GPS/GLO CP SMD GPS/Glonass patch ant.18x18 SMD Yageo	1049	1: ¥39.644	-	1,58-1,61G Hz	50 Ohm	PATCH	TRAY	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	NO	RoHS-conform	GPS/GLONAS	18 mm	-	-	-
ANT1818B00BT1575S GPS Patch ant. SMD 18x18x4 Yageo	0		-	1575,42 M Hz	50 Ohm	PATCH	TRAY	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	NO	RoHS-conform	GPS	18 mm	-	-	-
