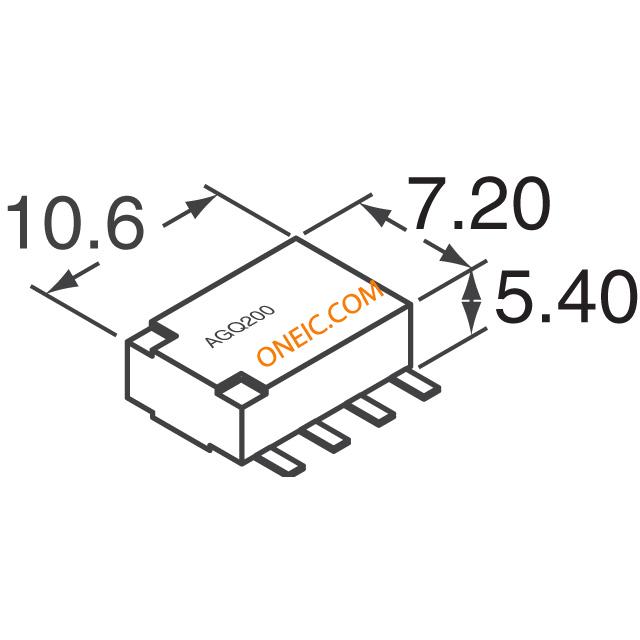

AGQ200S1 relay 系列
Panasonic CorporationLow signal relays for various applications
系列图片（11 张）
文档与媒体
常见问答
AGQ200S1 relay - 型号列表

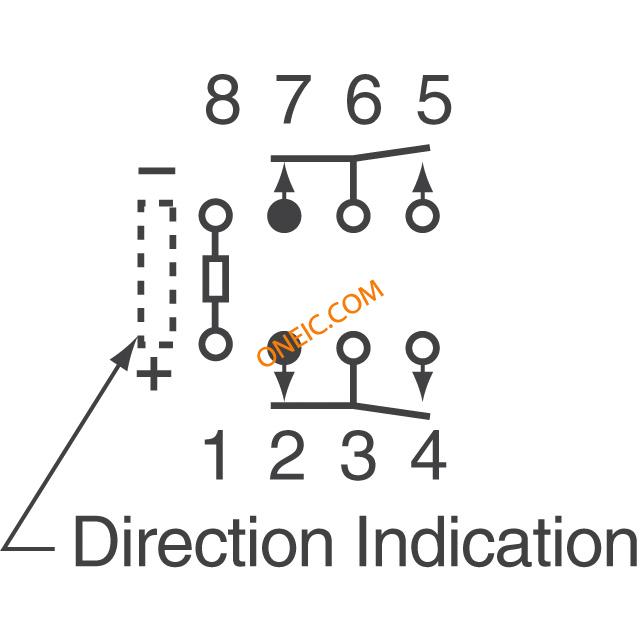

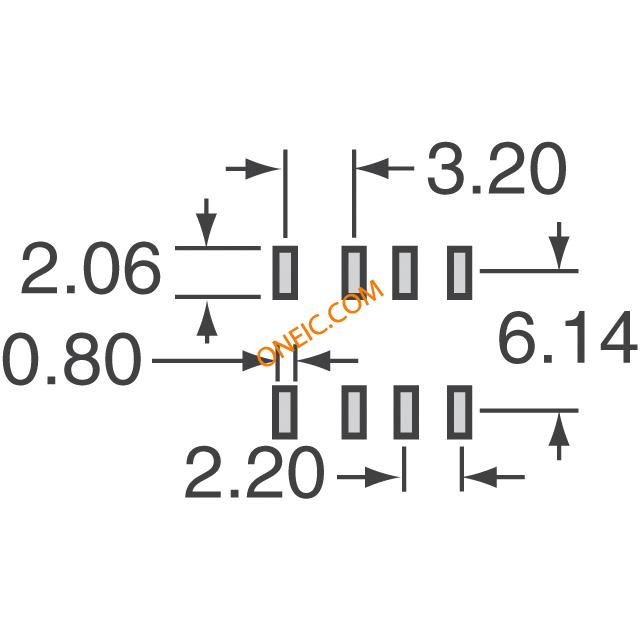

共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 线圈电流 | 线圈电阻 | 供电电压 | 触点额定电流 | 包装方式 | 触点形式 | 触头材料 | 端接样式 | 典型触点布局 | 继电器类型 | 动作时间 | 工作温度 | 其他名称 | 标准包装数量 | 工厂包装数量 | RoHS | 线圈类型 | 线圈功率 | 释放时间 | 开关电压 | Vgs(th)（最大）@ Id | 最大额定电流 | 最小输入电压 | 平均正向功率 | 集电极-发射极饱和电压（最大）@ Vge, Ic | 触点额定值 @ 电压 | 重量 | 安装类型 | 类型 | 抗辐射加固 | 线圈电压 | 额定功率 | 可见输出 | 额定交流电压 | 二极管配置 | 直流反向电压（Vr）（最大） | 高侧电压（自举）最大 | 密封 | 深度 | 高度 | 安装样式 | 总长度 | 位数 | 按下测试类型 | 电流 | 额定电压值 | 接触电阻 | 开关电流 | 击穿电压 | 触点电压（最大） | 绝缘电阻 | 最大压差 | 压敏电压（最小） | 并联额定电流 | 功能 | 卡标准 | 电气寿命 | 温度 | 机械寿命 | 抗冲击能力 | 抗振性 | 存储/冷藏温度 | 欧盟RoHS | 海关税号 | 额定电压 | 推频（MHz/V） | 钳位电压 | 最大触点电流 | 供电电压 (Vcc/Vdd) | 额定交流电压（相对地/中性线） | 触点数 | 已删除 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 AGQ200S1H Low Signal Relays - PCB 2 Form C, 1.5VDC 30VDC SMD 1.5V RELAY TELECOM DPDT 2A 1.5V Electromechanical Relay DPDT 2A 1.5VDC 16Ohm Surface Mount Signal Relay Coil Voltage: 1.5 VDC Contact Configuration: 2C DPDT Current: 1 Amp Mounting: Surface Mount Operating Function: Single Side Stable Panasonic Electric Works | 207 | ¥13.19 | Low Signal Relays - PCB | 93.8 mA | 16 Ohms | 1.5 VDC | 1 A | Tube | 2 Form C (DPDT-BM) | Silver Palladium (AgPd), Gold (Au) | Solder Pad | 2C DPDT | Telecom | 4ms | -40°C ~ 85°C | 255-1360-5 | 50 | 50 | RoHS Compliant | Single Side Stable | 140 mW | 4ms | 125VAC, 110VDC - Max | 0.15 VDC | 1 A | 1.13 VDC | 140 mW | 1.13 VDC | 1 A at 30 VDC / 300 mA at 125 VAC | Approx. 1 g .035 oz | Surface Mount | Relays | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 Amp | 2.25 VDC | 100 mohm | 10 ?A 10 mV DC | 1,000 Vrms for 1min. | 1,500 Vrms for 1min. | Min. 10,000M ohm (at 500V DC) | 0.15 VDC | 1,500 V (FCC Part 68) | 1 A 30 V DC, 0.3 A 125 V AC | Single Side Stable | Signal Relay | 1 A 30 V DC resistive - 10^5, 0.3 A 125 V AC resistive - 10^5 | Max. 50°C | 5 10^7 | Min. 750 m/s^2{75G] | 10 to 55 Hz at double amplitude of 5 mm | 5 to 85% R.H. | - | - | - | - | - | - | - | - | - | - |
 AGQ200S1HZ Low Signal Relays - PCB RELAY DPDT 1A POLAR 1.5VDC SMD RELAY TELECOM DPDT 2A 1.5V Electromechanical Relay DPDT 2A 1.5VDC 16Ohm Surface Mount Signal Relay Coil Voltage: 24 VDC Contact Configuration: 2C DPDT Current: 1 Amp Mounting: Surface Mount Operating Function: Single Side Stable Panasonic Electric Works | 2677 | ¥21.39 | - | 93.8 mA | 16 Ohms | 1.5 VDC | 1 A | Reel | 2 Form C (DPDT-BM) | Silver Palladium (AgPd), Gold (Au) | Solder Pad | 2C DPDT | Telecom | 4ms | -40°C ~ 85°C | 255-3876-1 | 900 | 900 | RoHS Compliant | Single Side Stable | 140 mW | 4ms | 125VAC, 110VDC - Max | 0.15 VDC | 1 A | 18 VDC | 140 mW | 1.13 VDC | 1 A at 30 VDC / 300 mA at 125 VAC | Approx. 1 g .035 oz | Surface Mount | Relays | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 Amp | 28.8 VDC | 100 mohm | 10 ?A 10 mV DC | 1,000 Vrms for 1min. | 1,500 Vrms for 1min. | Min. 10,000M ohm (at 500V DC) | 2.4 VDC | 1,500 V (FCC Part 68) | 1 A 30 V DC, 0.3 A 125 V AC | Single Side Stable | Signal Relay | 1 A 30 V DC resistive - 10^5, 0.3 A 125 V AC resistive - 10^5 | Max. 50°C | 5 10^7 | Min. 750 m/s^2{75G] | 10 to 55 Hz at double amplitude of 5 mm | 5 to 85% R.H. | - | - | - | - | - | - | - | - | - | - |
 AGQ200S12 Low Signal Relays - PCB 1A 12VDC DPDT NON-LATCHING SMD Electromechanical Relay DPDT 2A 12VDC 1.028KOhm Surface Mount RELAY TELECOM DPDT 2A 12V SIGNAL RELAY, DPDT, 2VDC, 1A, SMD AGQ,GQ,Relay,SMDStype, Signal Relay Coil Voltage: 9 VDC Contact Configuration: 2C DPDT Current: 1 Amp Mounting: Surface Mount Operating Function: Single Side Stable Panasonic Electric Works | 389 | ¥13.19 | Low Signal Relays - PCB | 11.7 mA | 1.03 kOhms | 12 VDC | 1 A | Tube | 2 Form C (DPDT-BM) | Silver Palladium | Solder Pad | DPDT | Non-Latching | 4ms | -40°C ~ 85°C | 255-1363-5 | 50 | 50 | RoHS Compliant By Exemption | Single Side Stable | 140 mW | 4ms | 125VAC, 110VDC - Max | 1.2 VDC | 1 A | 1.2VDC | 140 mW | 9 VDC | 1 A at 30 VDC / 300 mA at 125 VAC | 0 | Surface Mount | General Purpose Relay | No | 12V | 30W|37.5VA | No | 125V | No | 110V | 9VDC | Sealed | 7.2 mm | 5.4 mm | Surface Mount | 10.6 mm | 8 | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Compliant | 85366910 | 110 | No | 9VDC | :1A | :30V | :125V | 8 | Compliant |
 AGQ200S12Z Low Signal Relays - PCB 2 Form C, 12VDC 30VDC SMD 12V Electromechanical Relay DPDT 2A 12VDC 1.028KOhm Surface Mount RELAY TELECOM DPDT 2A 12V SIGNAL RELAY, DPDT, 2VDC, 1A, SMD AGQ,GQ,Relay,SMDStypeT&R, Signal Relay Coil Voltage: 9 VDC Contact Configuration: 2C DPDT Current: 1 Amp Mounting: Surface Mount Operating Function: Single Side Stable Panasonic Electric Works | 1327 | ¥12.04 | Low Signal Relays - PCB | 11.7 mA | 1.03 kOhms | 12 VDC | 1 A | Reel | 2 Form C (DPDT-BM) | Silver Palladium | Solder Pad | DPDT | Non-Latching | 4ms | -40°C ~ 85°C | 255-3359-1 | 900 | 900 | RoHS Compliant | Single Side Stable | 140 mW | 4ms | 125VAC, 110VDC - Max | 1.2 VDC | 1 A | 1.2VDC | 140 mW | 9 VDC | 1 A at 30 VDC / 300 mA at 125 VAC | 0 | Surface Mount | General Purpose Relay | No | 12V | 30W|37.5VA | No | 125V | No | 110V | 9VDC | Sealed | 7.2 mm | 5.4 mm | Surface Mount | 10.6 mm | 8 | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Compliant | 85364110 | 110 | No | 9VDC | :1A | :30V | :125V | 8 | - |
 AGQ200S12ZJ Electromechanical Relay DPDT 2A 12VDC 1.028KOhm Surface Mount AGQ200S12ZJ Panasonic Corporation | 0 | - | 11.7 mA | 1028 ohm | 1.2VDC | 2 A | Tape and Reel | 2 Form C | Silver Palladium | Gull Wing | DPDT | Non-Latching | 4 ms | -40C to 85C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | No | 12V | 30W/37.5VA | No | 125V | No | 110 V | 9VDC | Sealed | 7.2 mm | 5.4 mm | Surface Mount | 10.6 mm | 8 | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
