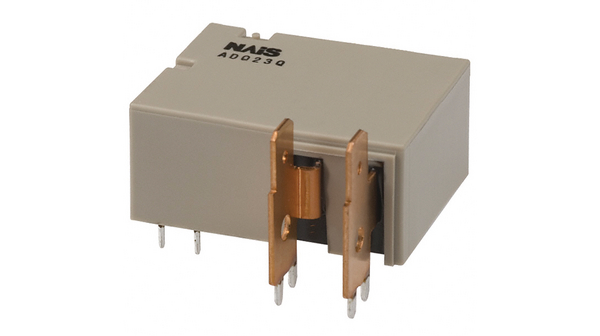

ADQ23Q relay 系列
Panasonic Corporation通用继电器，具有多种电压等级
Panasonic生产的ADQ23Q继电器系列是一款适用于多种应用的通用继电器，具有广泛的电压等级，适用于交流电路和直流电路。如果您正在开发控制系统、自动化项目或需要开关功能的应用，这些继电器都是不错的选择。
值得注意的是，它们的设计非常坚固，能够频繁切换而不会性能下降。当工程师需要能够在恶劣环境中可靠工作的开关组件时，往往会选用这种继电器。它们常见于工业机械、暖通空调系统和汽车电子设备中，这些领域对可靠的电气切换要求较高。
另一个实用的特点是其紧凑的尺寸，使其易于集成到小型或密集布置的控制面板中。它们的低功耗也有助于降低整体系统的能耗，在成本敏感的应用中尤为有益。如果您正在寻找一种可靠且高效的继电器解决方案用于下一个项目，ADQ23Q系列绝对值得考虑。

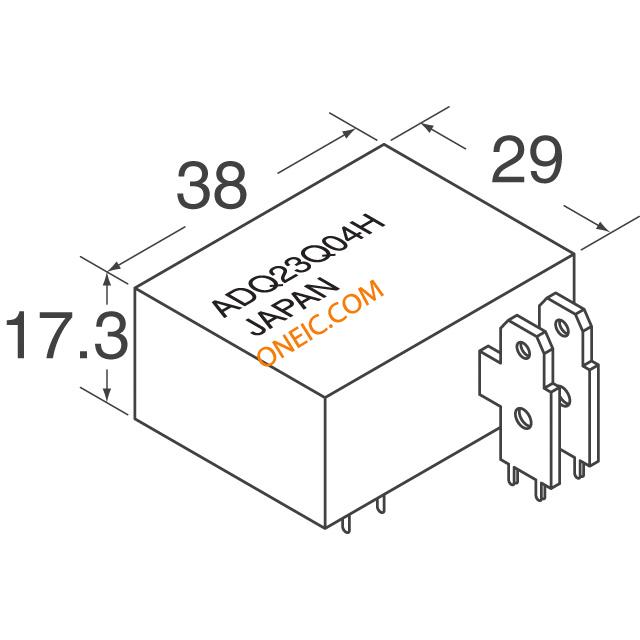

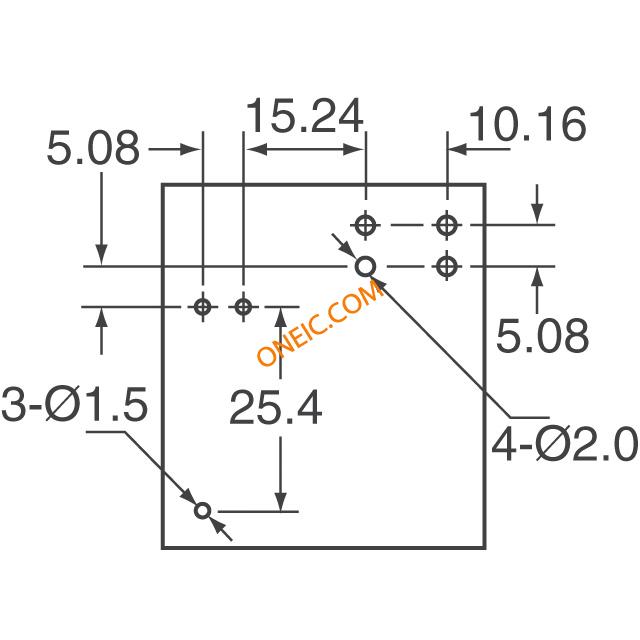

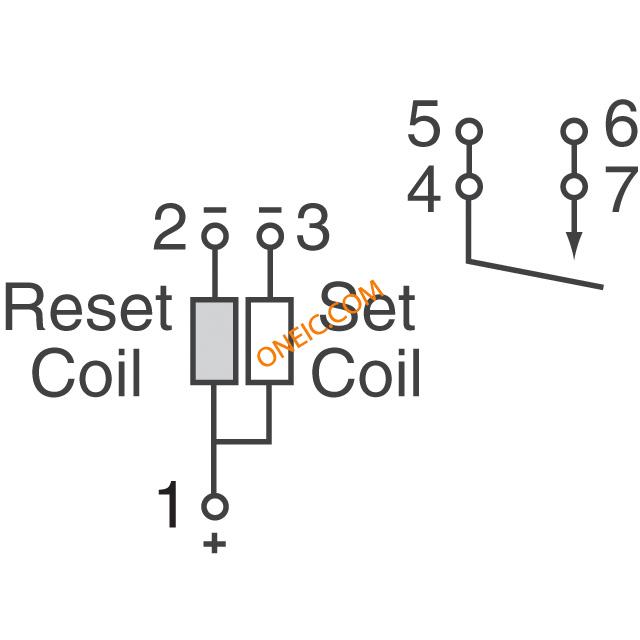

系列图片（12 张）
文档与媒体
常见问答
ADQ23Q relay - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 工厂包装数量 | RoHS | 转速 | 电流 | 线圈类型 | 频率 | 线圈功率 | 线圈电流 | 释放时间 | 最大电压 | 额定输出功率 | 线圈电阻 | 额定电压值 | 供电电压 | 开关电压 | 标称电压 | 接触电阻 | 开关电流 | 击穿电压 | 最大额定电流 | 绝缘电阻 | 额定电流 - 串联 | 平均正向功率 | 集电极-发射极饱和电压（最大）@ Vge, Ic | 触点额定电流 | 额定电流（每触点） | 保护电压（VP）（2416） | 重量 | 包装方式 | 触点形式 | 安装类型 | 安装样式 | 触头材料 | 端接样式 | 接触件端接 | 典型触点布局 | 类型 | 产品特性 | 功能 | 继电器类型 | 卡标准 | 电气寿命 | 复位操作 | 温度 | 动作时间 | 湿度范围 | 机械寿命 | 抗冲击能力 | 工作温度 | 抗振性（功能） | 抗振性（破坏） | 其他名称 | 触点数 | 欧盟RoHS | 电感量 | 额定功率 | 可见输出 | 测试电压 | 推频（MHz/V） | 开关容量 | 钳位电压 | 二极管配置 | 最小输入电压 | 密封 | 尺寸 | 深度 | 高度 | 总长度 | 释放范围（时间） | 触点额定值 @ 电压 | 触点形状 | 操作力 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 General Purpose Relays 30A 12VDC 2 COIL LATCHING Electromechanical Relay SPST-NO 30A 12VDC 144Ohm Through Hole RELAY GEN PURPOSE SPST 30A 12V Power Relay Coil Voltage: 12 VDC Contact Configuration: 1A SPST-NO Current: 30 Amps Mounting: PC Board Operating Function: 2 Coil Latching PCB power relay 12 VDC 1000 mW, ADQ23Q012, Panasonic Panasonic Electric Works | 30 | 1: ¥134.64 | General Purpose Relays | 20 | 20 | RoHS Compliant | 10 cpm | 30 Amps | Dual Coil Latching | 30 A 250V AC | 1 W | 83.3 mA | 20ms | 8.4 VDC | 7,500 V A | 144 Ohms | 15.6 VDC | 12 V | 250VAC - Max | 12 VDC | 30 mohm | 100 mA, 5 V DC | 4,000 Vrms for 1 min. | 30 A | Min. 1,000 Mohm (at 500 V DC) | 83.3 mA | 1000 mW | 8.4 VDC | 30A | 83.3 mA | Min. 10,000 V (initial) | Approx. 35 g 1.23 oz | Tube | 1 Form A (SPST-NO) | Through Hole | Through Hole | Silver Tin Oxide | Pin | Quick Connect | SPST-NO | High Capacity Power Relay | Sealed - Fully | 2 Coil Latching | Latching Double Coil | Power Relay | 10^4 | 1000 mW | 40C to +65C, 40F to +149F | 20ms | 5 to 75% R.H. | 10^6 | Min. 1,000 m/s^2{100 G} | -40°C ~ 65°C | 10 to 55Hz at double amplitude of 1.5mm | 10 to 55Hz at double amplitude of 2.0mm | 255-1443 | 7 | Compliant | 144 | 7.5kVA | No | 4 | No | 7500 VA | 8.4VDC | No | 250 | Sealed | 38 x 29 x 17.3 mm | 29 | 17.3 | 38 | - | - | - | - |
 General Purpose Relays 30A 4.5VDC 2 COIL LATCHING Electromechanical Relay SPST-NO 30A 4.5VDC 20.3Ohm Through Hole RELAY GEN PURPOSE SPST 30A 4.5V Power Relay Coil Voltage: 4.5 VDC Contact Configuration: 1A SPST-NO Current: 30 Amps Mounting: PC Board Operating Function: 2 Coil Latching ADQ Series 30 A SPST-NO 4.5 VDC Through Hole High Power Relay Panasonic Electric Works | 415 | 1: ¥150.28 | General Purpose Relays | 20 | 20 | RoHS Compliant By Exemption | 10 cpm | 30 Amps | Dual Coil Latching | 30 A 250V AC | 1 W | 221.7 mA | 20ms | 3.15 VDC | 7,500 V A | 20.3 Ohms | 5.85 VDC | 4.5 V | 250VAC - Max | 4.5 VDC | 30 mohm | 100 mA, 5 V DC | 4,000 Vrms for 1 min. | 30 A | Min. 1,000 Mohm (at 500 V DC) | 221.7 mA | 1000 mW | 3.15 VDC | 30A | 221.7 mA | Min. 10,000 V (initial) | Approx. 35 g 1.23 oz | Tube | 1 Form A (SPST-NO) | Through Hole | Through Hole | Silver Tin Oxide | Pin | Quick Connect | SPST-NO | High Capacity Power Relay | Sealed - Fully | 2 Coil Latching | Latching Double Coil | Power Relay | 10^4 | 1000 mW | 40C to +65C, 40F to +149F | 20ms | 5 to 75% R.H. | 10^6 | Min. 1,000 m/s^2{100 G} | -40°C ~ 65°C | 10 to 55Hz at double amplitude of 1.5mm | 10 to 55Hz at double amplitude of 2.0mm | 255-1442 | 7 | Compliant | - | 7.5kVA | No | - | No | - | 3.15VDC | No | 250 | Sealed | - | 29 | 17.3 | 38 | 20ms | 30A | SPST-NO (1 Form A) | 20ms |
 General Purpose Relays 1 Form A, 6VDC Sealed, 1W RELAY GEN PURPOSE SPST 30A 6V Electromechanical Relay SPST-NO 30A 6VDC 36Ohm Through Hole Power Relay Coil Voltage: 6 VDC Contact Configuration: 1A SPST-NO Current: 30 Amps Mounting: PC Board Operating Function: 2 Coil Latching Panasonic Electric Works | 91 | 1: ¥157.08 | General Purpose Relays | 20 | 20 | RoHS Compliant | 10 cpm | 30 Amps | Latching Dual Coil | 30 A 250V AC | 1 W | 166.7mA | 20ms | 4.2 VDC | 7,500 V A | 36 Ohms | 7.8 VDC | 6 V | 250VAC - Max | 6 VDC | 30 mohm | 100 mA, 5 V DC | 4,000 Vrms for 1 min. | 30 A | Min. 1,000 Mohm (at 500 V DC) | 166.7 mA | 1000 mW | 4.2 VDC | 30A | 166.7 mA | Min. 10,000 V (initial) | Approx. 35 g 1.23 oz | Tube | 1 Form A (SPST-NO) | Through Hole | Through Hole | Silver Tin Oxide | Solder Pin | Quick Connect | 1A SPST-NO | Relays | Sealed - Fully | 2 Coil Latching | General Purpose | Power Relay | 10^4 | 1000 mW | 40C to +65C, 40F to +149F | 20ms | 5 to 75% R.H. | 10^6 | Min. 1,000 m/s^2{100 G} | -40°C ~ 65°C | 10 to 55Hz at double amplitude of 1.5mm | 10 to 55Hz at double amplitude of 2.0mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 General Purpose Relays 1 Form A, 24VDC Sealed, 1W RELAY GEN PURPOSE SPST 30A 24V Electromechanical Relay SPST-NO 30A 24VDC 576Ohm Through Hole Power Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Current: 30 Amps Mounting: PC Board Operating Function: 2 Coil Latching Panasonic Electric Works | 16 | 1: ¥150.28 | General Purpose Relays | 20 | 20 | RoHS Compliant | 10 cpm | 30 Amps | Latching Dual Coil | 30 A 250V AC | 1 W | 41.7mA | 20ms | 16.8 VDC | 7,500 V A | 576 Ohms | 31.2 VDC | 24 V | 250VAC - Max | 24 VDC | 30 mohm | 100 mA, 5 V DC | 4,000 Vrms for 1 min. | 30 A | Min. 1,000 Mohm (at 500 V DC) | 41.7 mA | 1000 mW | 16.8 VDC | 30A | 41.7 mA | Min. 10,000 V (initial) | Approx. 35 g 1.23 oz | Tube | 1 Form A (SPST-NO) | Through Hole | Through Hole | Silver Tin Oxide | Solder Pin | Quick Connect | 1A SPST-NO | Relays | Sealed - Fully | 2 Coil Latching | General Purpose | Power Relay | 10^4 | 1000 mW | 40C to +65C, 40F to +149F | 20ms | 5 to 75% R.H. | 10^6 | Min. 1,000 m/s^2{100 G} | -40°C ~ 65°C | 10 to 55Hz at double amplitude of 1.5mm | 10 to 55Hz at double amplitude of 2.0mm | 255-1444 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 General Purpose Relays 1 Form A, 9VDC Sealed, 1W RELAY GEN PURPOSE SPST 30A 9V Electromechanical Relay SPST-NO 30A 9VDC 81Ohm Through Hole Power Relay Coil Voltage: 9 VDC Contact Configuration: 1A SPST-NO Current: 30 Amps Mounting: PC Board Operating Function: 2 Coil Latching PCB power relay 9 VDC 1000 mW, ADQ23Q009, Panasonic Panasonic Electric Works | 67 | 1: ¥115.532 | General Purpose Relays | 20 | 20 | RoHS Compliant | 10 cpm | 30 Amps | Latching Dual Coil | 30 A 250V AC | 1 W | 111.1mA | 20ms | 6.3 VDC | 7,500 V A | 81 Ohms | 11.7 VDC | 9 V | 250VAC - Max | 9 VDC | 30 mohm | 100 mA, 5 V DC | 4,000 Vrms for 1 min. | 30 A | Min. 1,000 Mohm (at 500 V DC) | 111.1 mA | 1000 mW | 6.3 VDC | 30A | 111.1 mA | Min. 10,000 V (initial) | Approx. 35 g 1.23 oz | Tube | 1 Form A (SPST-NO) | Through Hole | Through Hole | Silver Tin Oxide | Solder Pin | Quick Connect | 1A SPST-NO | Relays | Sealed - Fully | 2 Coil Latching | General Purpose | Power Relay | 10^4 | 1000 mW | 40C to +65C, 40F to +149F | 20ms | 5 to 75% R.H. | 10^6 | Min. 1,000 m/s^2{100 G} | -40°C ~ 65°C | 10 to 55Hz at double amplitude of 1.5mm | 10 to 55Hz at double amplitude of 2.0mm | - | 1 make contact (NO) | - | 81 | - | - | 4 | - | 7500 VA | - | - | - | - | 38 x 29 x 17.3 mm | - | - | - | - | - | - | - |
