ACML-0201 filter 系列
Abracon, LLC用于EMI滤波的应用铁氧体芯片
Abracon, LLC 的 ACML-0201 滤波器系列由设计用于有效抑制电磁干扰（EMI）的铁氧体芯片组成。这些组件常用于需要降低噪声的电源供应、电信设备和工业电子设备中。如果您正在开发需要满足严格EMI合规标准的系统，这些滤波器是理想的选择。
值得注意的是，它们体积小巧，但性能出色，能够有效地滤除不需要的高频噪声。当工程师们需要可靠的滤波效果而又不占用太多空间时，往往会选用这种滤波器。另一个实用的好处是它们易于集成到现有的PCB布局中，因此在寻找解决EMI问题的简单方案时，设计师们通常会青睐这种滤波器。

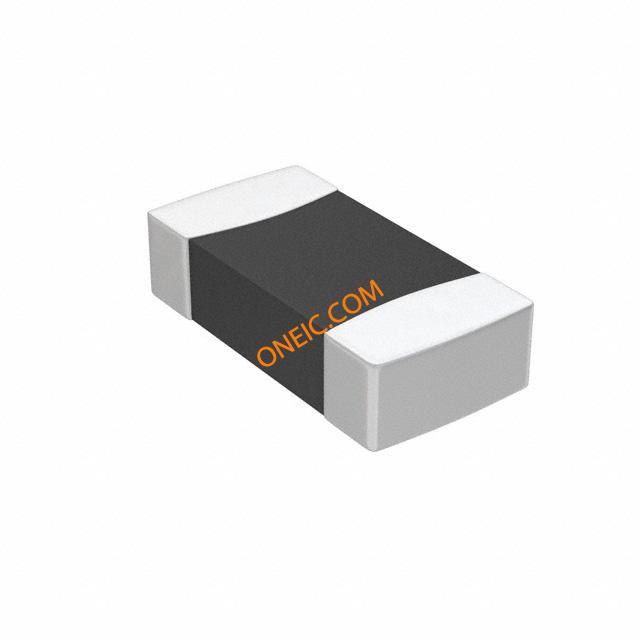

系列图片（1 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
ACML-0201 filter - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | RoHS | 最大额定电流 | 包装方式 | 封装形式 | 尺寸/外形 | 其他名称 | 标准包装数量 | 滤波器类型 | 直流电阻（DCR） | 阻抗 @ 频率 | 高度（最大） | 安装类型 | 产品 | 阻抗 | 容差 | 测试频率 | 初始电阻（最小） | 宽度 | 屏蔽 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 1: ¥0.68 | - | Lead free / RoHS Compliant | 200mA | Tape & Reel (TR) | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 535-12207-1 | 15,000 | Differential Mode - Single | 600 mOhm Max | 80 Ohm @ 100MHz | 0.014" (0.35mm) | Surface Mount | - | - | - | - | - | - | - | - | - |
| 10 | 1: ¥0.68 | - | Lead free / RoHS Compliant | 200mA | Tape & Reel (TR) | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 535-12206-1 | 15,000 | Differential Mode - Single | 400 mOhm Max | 60 Ohm @ 100MHz | 0.014" (0.35mm) | Surface Mount | - | - | - | - | - | - | - | - | - |
FERRITE CHIP 120 OHM 200MA 0201 EMI Filter Beads, Chips & Arrays 120 Ohm @ 100MHz 200mA Max. Abracon Corporation | 10 | 15000: ¥0.1224 | - | Lead free / RoHS Compliant | 200mA | Tape & Reel (TR) | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 535-12202-2 | 15,000 | Differential Mode - Single | 800 mOhm Max | 120 Ohm @ 100MHz | 0.014" (0.35mm) | Surface Mount | Ferrite Chip Beads | 120 Ohms | 25 % | 100 MHz | 800 mOhms | 0.3 mm | Shielded | SMD/SMT | - 55 C to + 125 C |
FERRITE CHIP 240 OHM 200MA 0201 EMI Filter Beads, Chips & Arrays 240 Ohm @ 100MHz 200mA Max. Abracon Corporation | 15000 | 15000: ¥0.1238 | - | Lead free / RoHS Compliant | 200mA | Tape & Reel (TR) | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 535-12203-2 | 15,000 | Differential Mode - Single | 1 Ohm Max | 240 Ohm @ 100MHz | 0.014" (0.35mm) | Surface Mount | Ferrite Chip Beads | 240 Ohms | 25 % | 100 MHz | 1 Ohms | 0.3 mm | Shielded | SMD/SMT | - 55 C to + 125 C |
FERRITE CHIP 470 OHM 200MA 0201 EMI Filter Beads, Chips & Arrays 470 Ohm @ 100MHz 200mA Max. Abracon Corporation | 10 | 1: ¥0.952 | - | Lead free / RoHS Compliant | 200mA | Tape & Reel (TR) | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 535-12204-2 | 15,000 | Differential Mode - Single | 1.4 Ohm Max | 470 Ohm @ 100MHz | 0.014" (0.35mm) | Surface Mount | Ferrite Chip Beads | 470 Ohms | 25 % | 100 MHz | 1.4 Ohms | 0.3 mm | Shielded | SMD/SMT | - 55 C to + 125 C |
FERRITE CHIP 600 OHM 200MA 0201 EMI Filter Beads, Chips & Arrays 600 Ohm @ 100MHz 200mA Max. Abracon Corporation | 10 | 1: ¥0.952 | - | Lead free / RoHS Compliant | 200mA | Tape & Reel (TR) | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 535-12205-2 | 15,000 | Differential Mode - Single | 1.7 Ohm Max | 600 Ohm @ 100MHz | 0.014" (0.35mm) | Surface Mount | Ferrite Chip Beads | 600 Ohms | 25 % | 100 MHz | 1.7 Ohms | 0.3 mm | Shielded | SMD/SMT | - 55 C to + 125 C |
 | 10 | 1: ¥1.088 | - | RoHS Compliant By Exemption | 200 mA | Reel | 0.6 mm | 0.3 mm W x 0.6 mm L x 0.3 mm H | - | - | - | - | - | - | - | Ferrite Chip Beads | 60 Ohms | 25 % | 100 MHz | 400 mOhms | 0.3 mm | Shielded | SMD/SMT | - 55 C to + 125 C |
| 10 | 1: ¥1.088 | - | RoHS Compliant By Exemption | 200 mA | Reel | 0.6 mm | 0.3 mm W x 0.6 mm L x 0.3 mm H | - | - | - | - | - | - | - | Ferrite Chip Beads | 80 Ohms | 25 % | 100 MHz | 600 mOhms | 0.3 mm | Shielded | SMD/SMT | - 55 C to + 125 C |
