cigen-ABBTM-2.4

ABBTM-2.4 系列

2.4GHz Bluetooth modules for various applications

系列图片（13 张）

文档与媒体

PDF 文档

ABBTM-2.4GHz-31-T.pdf

PDF 文档

ABBTM-2.4GHz-31-T_Dwg.PDF

PDF 文档

ABBTM-2.4GHz-33-T.pdf

PDF 文档

ABBTM-2.4GHz-33-T_Dwg.PDF

PDF 文档

ABBTM-2.4GHz-51-T.pdf

PDF 文档

ABBTM-2.4GHz-52.pdf

PDF 文档

ABBTM-2.4GHz_Eval.pdf

PDF 文档

ABBTM-2.4GHz-T.pdf

PDF 文档

ABBTM-2.4GHz-52-T.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

ABBTM-2.4 - 型号列表

共 13 个型号

制造商零件编号	库存	价格	产品类别	RoHS	供电电压	包装方式	天线连接器	工作温度	标准包装数量	频率	接口	存储器容量	数据接口	额定输出功率	频段（低/高）	安装样式	封装形式	尺寸/外形	类别	应用	调制或协议	交货时间	子类别	灵敏度	机械寿命	其他名称	产品	类型	内容	工具类型/特性	适用产品/相关产品
3 ABBTM-2.4GHZ-T . ABBTM-2.4GHZ-T - Bluetooth Bluetooth v2.0 +EDR, Class 2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount from Abracon LLC. from now! Abracon, LLC	48	1: ¥137.36	-	RoHS Compliant	3.3 V	Reel	Internal	+ 85 C	500	2.4GHz ~ 2.48GHz	UART, USB	8MB Flash	Pads for Pins	4dBm	2.4 GHz to 2.48 GHz	SMD/SMT	34-SMD Module	26.9 mm x 13 mm x 2 mm	2	General Purpose	Bluetooth v2.0+EDR, Class 2	70 Days	Bluetooth	-	New At Mouser	-	-	-	-	-	-

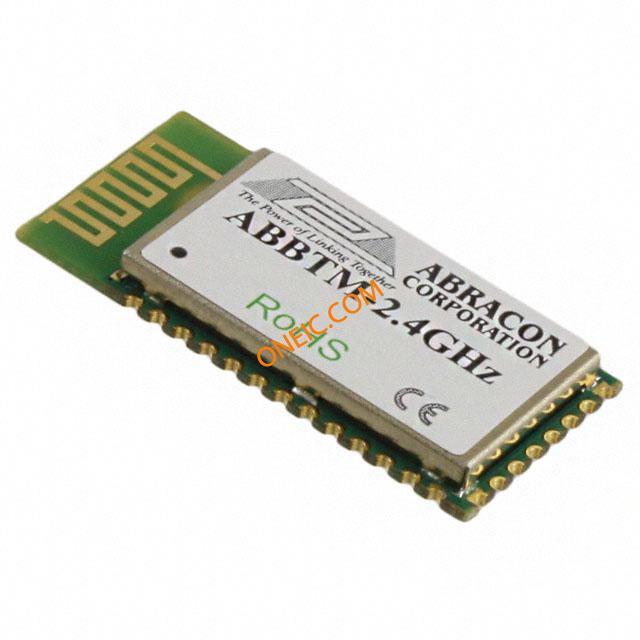

2 ABBTM-2.4GHZ-T2 . ABBTM-2.4GHZ-T2 - Bluetooth Bluetooth v2.0 +EDR, Class 2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount from Abracon LLC. from now! Abracon, LLC	61	1: ¥152.932	-	Lead free / RoHS Compliant	2.2 V ~ 4.2 V	Tape & Reel (TR)	On-Board, Trace	-40°C ~ 85°C	250	2.4GHz ~ 2.48GHz	UART, USB	8MB Flash	Pads for Pins	4dBm	2.4 GHz to 2.48 GHz	SMD/SMT	34-SMD Module	26.9 mm x 13 mm x 2 mm	2	General Purpose	Bluetooth v2.0+EDR, Class 2	-	-	-	-	535-11799-1	-	-	-	-	-
ABBTM-2.4GHZ TERNAL CORE AND 8MBIT ONBOARD Abracon	10	1: ¥231.268	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 ABBTM-2.4GHZ-31 ULTIMEDIA EXTERNAL CORE, 8MBIT MODULE BLUETOOTH WSTEREO CODEC Abracon	10	1: ¥158.372	-	Lead free / RoHS Compliant	1.8V, 3.3V	Bulk	Castellation	-40°C ~ 85°C	10	2.4GHz ~ 2.48GHz	-	8MB Flash	Pads for Pins	4dBm	-	-	54-SMD Module (47 Leads)	-	-	General Purpose	Bluetooth v1.2, Class 2	-	-	-	-	-	-	-	-	-	-
2 ABBTM-2.4GHZ-33 NTENNA, CSR BC03 MULTIMEDIA EX MODULE BLUETOOTH WSTEREO CODEC Abracon	258	1: ¥170.544	-	Lead free / RoHS Compliant	3.3V, 5V	Bulk	On-Board, Chip	-40°C ~ 85°C	10	2.4GHz ~ 2.48GHz	-	8MB Flash	Pads for Pins	4dBm	-	-	12-SMD Module	-	-	General Purpose	Bluetooth v1.2, Class 2	-	-	-	-	-	-	-	-	-	-
2 ABBTM-2.4GHZ-EVAL RF EVAL FOR ABBTM-2.4GHZ Bluetooth / 802.15.1 Development Tools 2.4GHz Blutooth Eval 3.3V 0C to 70C Abracon Corporation	25	1: ¥1,460.912	-	Lead free / RoHS Compliant	1.8 V	Bulk	Internal	- 40 C	1	2.4GHz	USB	-	-	-	-	-	-	-	-	-	-	70 Days	Development Kits and Tools	-	-	-	Evaluation Boards	Transceiver, Bluetooth 2.0+EDR	Board	ABBTM	ABBTM-2.4GHZ
ABBTM-2.4GHZ-33-T MODULE BLUETOOTH WSTEREO CODEC Bluetooth / 802.15.1 Modules 2.4GHz Int. Ant. 8MB Flash Abracon Corporation	10	193: ¥108.46	-	RoHS Compliant	3.3 V, 5 V	Tape and Reel	Internal	- 40 C	-	-	UART	-	-	-	2.4 GHz	SMD/SMT	-	29 mm x 25.5 mm x 2.8 mm	2	-	-	70 Days	Not Specified	-	-	-	-	-	-	-	-

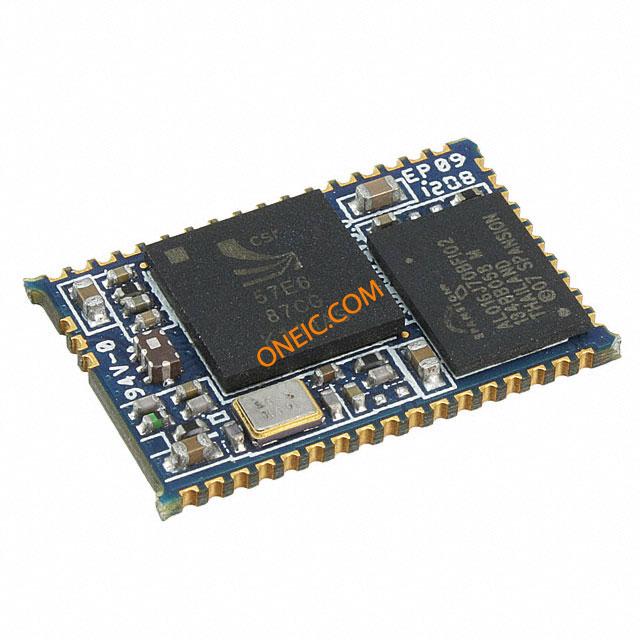

2 ABBTM-2.4GHZ-51-T . ABBTM-2.4GHZ-51-T - Bluetooth Bluetooth v2.1, Class 2 Transceiver Module 2.4GHz Antenna Not Included Surface Mount from Abracon LLC. from now! Abracon, LLC	510	1: ¥157.284	-	Lead free / RoHS Compliant	3.3V	Tape and Reel	Castellation	-40°C ~ 85°C	10	2.4GHz ~ 2.48GHz	UART/USB	16Mb Flash	Pads for Pins	4dBm	2.4 GHz	SMD/SMT	54-SMD Module (47 Leads)	20 mm x 13.4 mm x 2.2 mm	2	General Purpose	Bluetooth v2.1	70 Days	Not Specified	-93dBm	-	-	-	-	-	-	-
ABBTM-2.4GHZ-31-T MODULE BLUETOOTH WSTEREO CODEC Bluetooth / 802.15.1 Modules 2.4GHz Ext. Ant. 8MB Flash Abracon Corporation	10	1: ¥138.176	-	RoHS Compliant	1.8 V, 3.3 V	Tape and Reel	Internal	- 40 C	-	-	UART	-	-	-	2.4 GHz	SMD/SMT	-	20 mm x 13 mm x 2 mm	2	-	-	70 Days	Not Specified	-	-	-	-	-	-	-	-

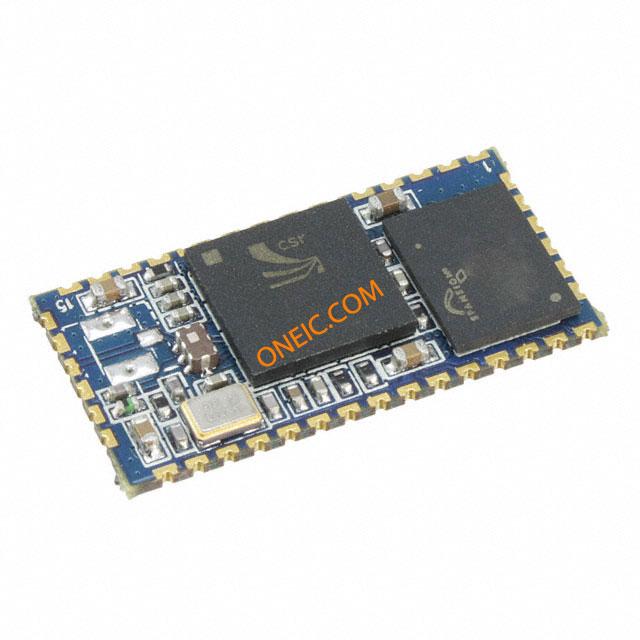

2 ABBTM-2.4GHZ-52-T . ABBTM-2.4GHZ-52-T - Bluetooth Bluetooth v2.1, Class 2 Transceiver Module 2.4GHz Antenna Not Included Surface Mount from Abracon LLC. from now! Abracon, LLC	519	1: ¥164.628	-	RoHS Compliant	3.3V	Bulk	Castellation	-40°C ~ 85°C	10	2.4GHz ~ 2.48GHz	UART/USB	16Mb Flash	Pads for Pins	4dBm	2.4 GHz	SMD/SMT	42-SMD Module	23.3 mm x 11.93 mm x 2 mm	2	General Purpose	Bluetooth v2.1	-	-	-93dBm	-	-	-	-	-	-	-
ABBTM-2.4GHZ-51 RF TXRX MODULE BLUETOOTH Abracon LLC	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABBTM-2.4GHZ-52 RF TXRX MODULE BLUETOOTH Abracon LLC	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABBTM-2.4GHZ-51-101 Bluetooth / 802.15.1 Modules 2.4GHz Ext. Ant 16MB Flash ABRACON	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
