76RSB08 switche 系列

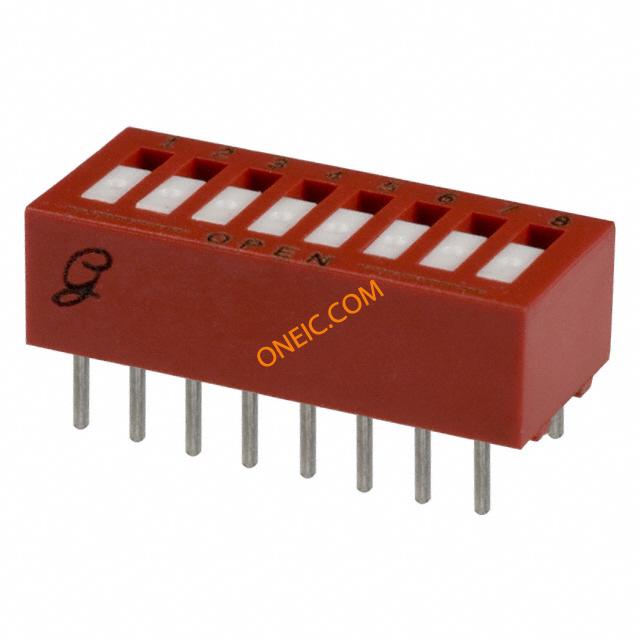

Grayhill, Inc.单刀单掷并带凹陷摇杆的DIP开关
Grayhill, Inc. 的76RSB08 开关系列是一款功能多样的DIP开关，提供了SPST（单极单投）功能和凹陷式摇杆设计。这些开关广泛应用于各种电子系统中，包括测试设备、工业控制和消费电子产品，在这些系统中需要手动选择或切换离散设置。
这些开关的一个实际应用是在设备的固件更新或配置设置中。工程师在需要一种简单可靠的更改设置方法时，经常会使用它们，而无需软件界面。例如，在设备初始化过程中设置特定配置可以很容易地通过这些开关来完成。
另一个有用的功能是其坚固的构造，使其适用于可能有灰尘或碎屑的环境。凹陷式摇杆设计有助于防止意外切换，并提供触觉反馈，从而提升用户体验。如果你正在从事需要对特定功能进行手动控制的项目，76RSB08 系列绝对值得考虑。它们为许多工程挑战提供了坚固且简便的解决方案。
系列图片（10 张）
文档与媒体
常见问答
76RSB08 switche - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 电路 | 触点额定值 @ 电压 | 方向 | 致动器类型 | 安装类型 | 执行器水平位置 | 位数 | 可清洗 | RoHS | 欧盟RoHS | 额定电压 | 最大额定电流 | 开关功能/额定值 | 密封 | 深度 | 高度 | 包装方式 | 柱间距 | 端子类型 | 接触镀层 | 触头材料 | 总长度 | 按钮样式/尺寸 | 开关驱动电平 | 电气寿命 | 机械寿命 | 工作温度 | 其他名称 | 海关税号 | 最大触点电流 | 间距 | 重量 | 典型触点布局 | 交货时间 | 子类别 | SVHC | 引脚间距 | 第一连接器安装类型 | 系列 | 开关类型 | 介电强度 | 端接方式 | 触点形式 | 安装样式 | 类型 | 电路结构 | 制造商全称 | 适用产品/相关产品 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SWITCH DIP RECESS RCKR 8POS grayhill | 10 | 12: ¥7.344 | - | Rail / Tube | SPST | 0.15A @ 30VDC | Top Actuated | Rocker | Through Hole | Recessed | 8 | No | Lead free / RoHS Compliant | Compliant | 30 V | 0.15@30VDC A | ON OFF | Base | 9.65 | 7.42 | Tube | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 22.4 | Recessed Rocker | SPST | 2000/Switch | 2000/Switch | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SWITCH DIP RECESS RCKR SLD 8POS grayhill | 49 | 1: ¥14.892 | - | Rail / Tube | SPST | 0.15A @ 30VDC | Top Actuated | Rocker | Through Hole | Recessed | 8 | Yes | Lead free / RoHS Compliant | Compliant | 30 V | 0.15@30VDC A | ON OFF | Tape(Polyester Film)/Base | 9.65 | 7.42 | Tube | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 22.4 | Recessed Rocker | SPST | 2000/Switch | 2000/Switch | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SWITCH DIP RECESS RCKR 8POS 30V DIP SWITCH SPST DIPSWITCH,SPST,8POSITION grayhill | 1430 | 1: ¥37.264 | - | Rail / Tube | SPST | 0.15A @ 30VDC | Top Actuated | Rocker | Through Hole | Recessed | 8 | Yes | Lead free / RoHS Compliant | Compliant | 30 V | 0.15@30VDC A | ON OFF | Tape(Polyester Film)/Base | 9.65 | 7.42 | Tube | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 22.4 | Recessed Rocker | SPST | 2000/Switch | 2000/Switch | -40 to 85 °C | GH7161 | 85365019 | :150mA | :2.54mm | 0.002 | :SPST | - | - | :No SVHC (20-Jun-2013) | :2.54mm | :Through Hole | :76 | :DIP | - | - | - | - | - | - | - | - |
Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SW DIP RECESS RCKR UNSL 8POS 30V SWITCH, DIP, 8POS, SPST, RECESSED ROCKER Switch,DIP;0.880in.Lx0.380in.W;8;SPST;Thru-Hole;0.1in.;0.02in. grayhill | 46 | 1: ¥10.404 | - | Rail / Tube | SPST | 0.15A @ 30VDC | Top Actuated | Rocker | Through Hole | Recessed | 8 | No | Lead free / RoHS Compliant | Compliant | 30 V | 0.15@30VDC A | ON OFF | Base | 9.65 | 7.42 | Tube | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 22.4 | Recessed Rocker | SPST | 2000/Switch | 2000/Switch | -40 to 85 °C | GH7162 | 85365005 | :150mA | :2.54mm | 0.002 | :SPST | - | - | - | - | - | - | - | 750V | PCBPins | SPSTx8 | PCB | DIP | :SPST-CO | 76Series | - |
 Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 20000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SWITCH 8POS DIP RECESS ROCK UNSL Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 20000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Grayhill | 37 | 1: ¥22.236 | - | 12 | SPST | 0.15A @ 30VDC | Top Actuated | Rocker | Through Hole | Recessed | 8 | No | Contains lead / RoHS non-compliant | Not Compliant | 30 | 0.15@30VDC | ON OFF | Base | 9.65 | 6.78 | Tube | 2.54 | PC Pins | Gold/Nickel Barrier | Copper Alloy | 22.4 | Recessed Rocker | SPST | 10000/Switch | 20000/Switch | 85 | GH1278 | - | - | - | - | - | 56 Days | Switch DIP | - | - | - | - | - | - | - | - | - | - | - | - | 76RSB08LT76RSB08T |
| 10 | 1: ¥22.916 | - | 108 | SPST | 0.15A @ 30VDC | Top Actuated | Rocker | Through Hole | Recessed | 8 | Yes | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | GH1268 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Grayhill | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 56 Days | Not Specified | - | - | - | - | - | - | - | - | - | - | - | - | - |
