762-18 power entry connectors - inlets, outlets, module 系列
Qualtek Electronics Corp.多种功能AC电源入口模块

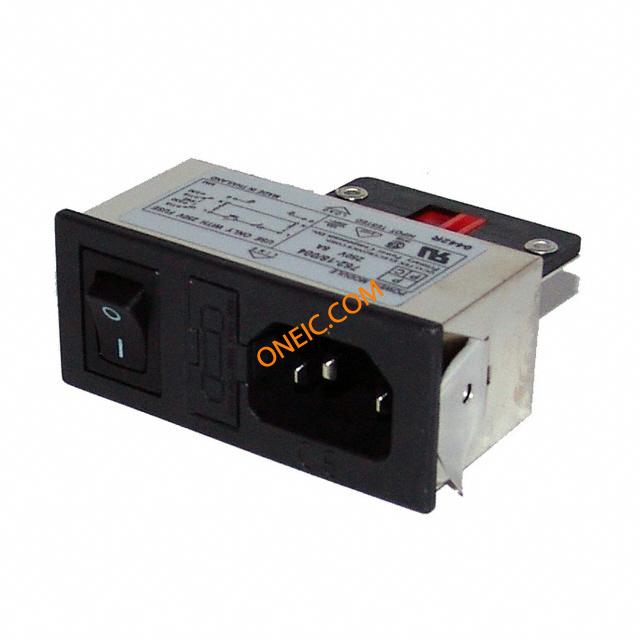

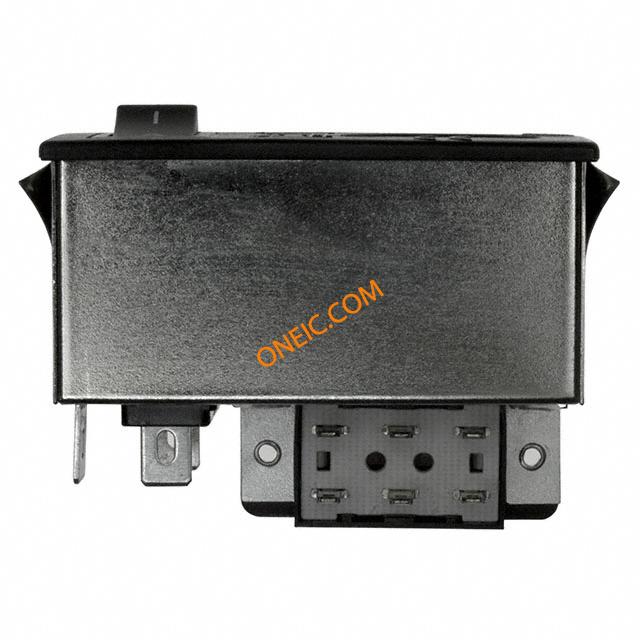

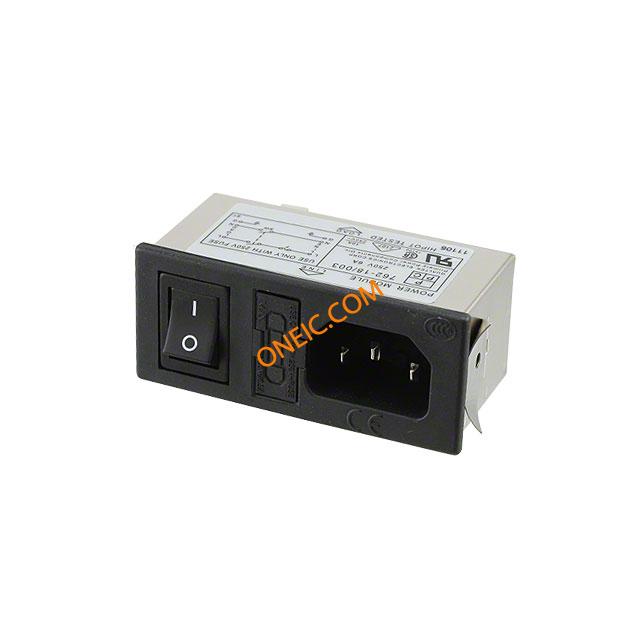

Qualtek Electronics Corp. 的762-18系列产品是多功能交流电源入口模块，适用于各种需要可靠电源分配的应用场合。这些入口和出口广泛应用于从工业机械到数据中心的各种设备中，提供了一种强大的解决方案来管理交流电源连接。
如果您正在从事涉及将电源供应集成到模块或面板中的任何项目，这些连接器是首选。它们能够处理多种电流等级，因此在不同的系统架构中使用时无需使用多种类型的连接器。值得注意的是，它们的耐用性很强，能够在频繁循环和恶劣环境中长期工作，这对于可能暴露在灰尘、湿气或机械应力下的工业环境至关重要。
当工程师们需要一个既能满足应用需求又易于安装和维护的高质量连接器时，通常会选择这种连接器。762-18系列产品在这方面表现出色，提供了良好的性价比，在更注重成本的项目中也值得使用。
系列图片（15 张）
文档与媒体
常见问答
762-18 power entry connectors - inlets, outlets, module - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 交货时间 | 子类别 | 标准包装数量 | RoHS | 电流 | 电压 | 包装方式 | 安装类型 | 连接器类型 | 连接器样式 | 保险丝座类型 | 端接样式 | 位数 | 产品 | 滤波器类型 | 额定电压 | 极数 | 开关功能 | 最大额定电流 | 端接方式 | 安装样式 | 面板厚度 | 壳体材料 | 面板开孔形状 | 类型 | 带保险丝 | 连接器性别 | 产品特性 | 标准 | 开关类型 | 海关税号 | 重量 | 接触件端接 | 第一连接器安装类型 | 系列 | 漏电流 | 密封等级 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ACパワーエントリモジュール SNAP-IN AC MODULE MODULE POWER ENTY FUSED DPST MET Module; Multifunction; 6 A/6 A @ 115 VAC/250 VAC (UL/CSA); SPST Power AC Power Entry Modules SNAP-IN AC MODULE Power Entry Module Unfiltered M 3 POS 250VAC 6A Switch/Fuse ST 1 Port CONNECTOR, POWER ENTRY, PLUG, 10A Module,Multifunction;6A/6A@115VAC/250VAC(UL/CSA);SPSTPower AC Receptacles Multi-Function Modules Single Fuseholder Modules IEC320 - C14 Max Rating: UL 6A/115VAC, CSA 4A/250VAC, VDE 10A/250VAC Description: Snap-In Mount Housing Type: Metal Terminals: .250 Q.D. Thickness 1.0 - 1.8 mm. Qualtek | 378 | 1: ¥127.636 | AC Power Entry Modules | 98 Days | Power Entry Module | 100 | Lead free / RoHS Compliant | 6A | 115V | Bag | Panel Mount, Snap-In | Receptacle, Male Pins - Module | IEC 320-C14 | Included | Quick Connect - 0.250" (6.3mm) | 3 | Outlets | No | 115 VAC / 250 VAC | 1(Fuseholder),1(LineSwitch) | Switched | 6 A | QuickDisconnect | Snap-In | 1-1.8mm | Metal | 2.6×1.063" | Fuse/Switch | Yes | :Plug | Fuse Holder, Switch On/Off Non-Illuminated | ULRecognized,CSACertified,VDEApproved | SPSTPower | 85369010 | 0.064 | :Quick Connect | :Panel | :- | - | - | - |
 MODULE POWER ENTY FUSED SPST MET Module; Multifunction; 6 A (RMS) (Max.) @ 115 VAC; 6 A (RMS) (Max.) @ 250 VAC AC Power Entry Modules Snap-In Mnt Solder Power Entry Module Unfiltered F 3 POS 115VAC/250VAC 6A Switch/Fuse ST 1 Port CONNECTOR, POWER ENTRY, PLUG, 6A Module,Multifunction;6A(RMS)(Max.)@115VAC,6A(RMS)(Max.)@250VAC AC Receptacles Multi-Function Modules Single Fuseholder Modules IEC320 - C14 Max Rating: UL 6A/115VAC, CSA 6A/250VAC, VDE 10A/250VAC Description: Snap-In Mount Housing Type: Metal Terminals: .250 Q.D. Thickness 1.0 - 1.8 mm. Qualtek | 2804 | 1: ¥77.928 | AC Power Entry Modules | 26 Days | Power Entry Module | 100 | Lead free / RoHS Compliant | 6A | 115V | Bag | Panel Mount, Snap-In | Receptacle, Male Pins - Module | IEC 320-C14 | Included | Quick Connect - 0.250" (6.3mm) | 3 | Outlets | No | 125 V / 250 V | 1(Fuseholder),1(LineSwitch) | Switched | 6 A | QuickDisconnect | Snap In | 1-1.8mm | Metal | 2.6×1.063" | Fuse/Switch | Yes | :Plug | Fuse Holder, Switch On/Off Non-Illuminated | - | - | 85366910 | 0.059 | :Quick Connect | :Panel | :- | 2,5μA | 2000VAC(LinetoGround),2000VAC(LinetoLine) | -25to+85°C |
 MODULE POWER ENTY FUSED SPST MET Module; Multifunction; 6 A/5 A @ 115 VAC/ 250 VAC (UL/CSA); SPST Power AC Power Entry Modules Snap-In Mnt .250 QD Power Entry Module Unfiltered M 3 POS 115VAC/250VAC 6A/10A Switch/Fuse ST 1 Port Module,Multifunction;6A/5A@115VAC/250VAC(UL/CSA);SPSTPower AC Receptacles Multi-Function Modules Single Fuseholder Modules IEC320 - C14 Max Rating: UL 6A/115VAC, CSA 5A/250VAC, VDE 10A/250VAC Description: Snap-In Mount Housing Type: Metal Terminals: .250 Q.D. Thickness 1.0 - 1.8 mm. Qualtek | 17 | 1: ¥93.296 | AC Power Entry Modules | 98 Days | Power Entry Module | 100 | Lead free / RoHS Compliant | 6A | 115V | Bag | Panel Mount, Snap-In | Receptacle, Male Pins - Module | IEC 320-C14 | Included | Quick Connect - 0.250" (6.3mm) | 3 | Outlets | No | 115 V / 250 V | 1(Fuseholder),1(LineSwitch) | Switched | 6 A | QuickDisconnect | Snap In | 1-1.8mm | Metal | 2.6×1.063" | Fuse/Switch | Yes | Male | Fuse Holder, Switch On/Off Non-Illuminated | ULRecognized,CSACertified,VDEApproved | SPSTPower | - | - | - | - | - | - | - | - |
 | 10 | 1: ¥130.7436 | - | 98 Days | Not Specified | 100 | Lead free / RoHS Compliant | 6A | 250V | Bag | Panel Mount, Snap-In | Receptacle, Male Pins - Module | IEC 320-C14 | Fuse Not Required | Quick Connect - 0.250" (6.3mm) | 3 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 MODULE POWER ENTY FUSED DPST MET AC Power Entry Modules SNAP-IN .250 Q.D. Module,Multifunction;6A/5A@115/250VAC(UL/CSA);115/250VAC(UL/CSA) AC Receptacles Multi-Function Modules Single Fuseholder Modules IEC320 - C14 Max Rating: UL 6A/115VAC, CSA 4A/250VAC, VDE 10A/250VAC Description: Snap-In Mount Housing Type: Metal Terminals: .250 Q.D. Thickness 1.0 - 1.8 mm. Qualtek | 71 | 1: ¥142.936 | AC Power Entry Modules | 98 Days | Power Entry Module | 100 | Lead free / RoHS Compliant | 6A | 115V | Bag | Panel Mount, Snap-In | Receptacle, Male Pins - Module | IEC 320-C14 | Included | Quick Connect - 0.250" (6.3mm) | 3 | Outlets | No | 115 V / 250 V | 1(Fuseholder),2(LineSwitch) | Switched | 6 A | QuickDisconnect | Snap In | 1-1.8mm | Metal | 2.6×1.063" | Fuse/Switch | Yes | Male | Fuse Holder, Switch On/Off Non-Illuminated | ULRecognized,CSACertified,VDEApproved | SPSTPower | - | - | - | - | - | - | - | - |
