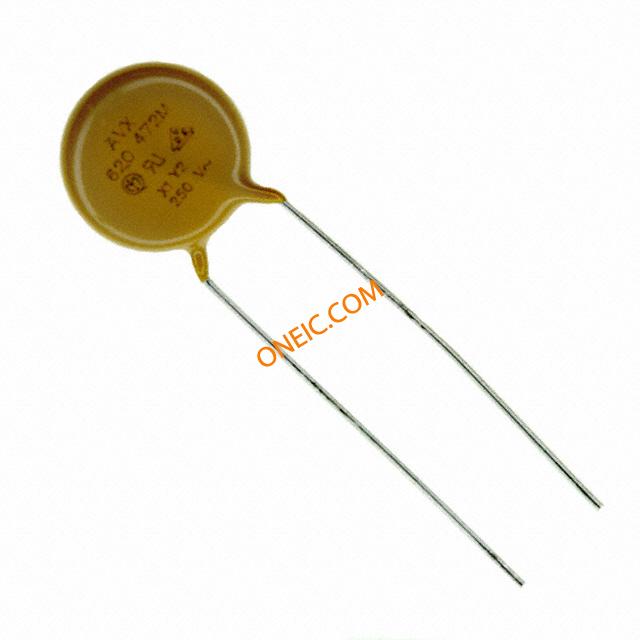

62O472 ceramic capacitor 系列
AVX Corporation250V 陶瓷电容器
AVX 62O472系列陶瓷电容器适用于最高250V的高压应用。这些组件广泛应用于电源、逆变器和电机驱动等领域，在承受高压应力时需要具备较高的可靠性和稳定性。如果您正在开发需要处理显著电压尖峰而不失效的项目，这些电容器是一个很好的选择。
值得注意的是，它们具有出色的温度稳定性。在较宽的温度范围内，它们能够保持电容值的稳定，使其成为常见热循环应用的理想选择。当工程师需要在各种环境条件下都能保持可靠性能时，往往会选用这种电容器。此外，它们的小尺寸和低轮廓使其在紧凑设计中具有空间效率优势，这对于现代电子产品而言尤为重要，因为板载空间非常有限。
系列图片（5 张）
文档与媒体
PDF 文档
常见问答
内容由 AI 生成，仅供参考
加载中...
03
62O472 ceramic capacitor - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 容差 | 电容 | 包装方式 | 安装类型 | 工作温度 | 标准包装数量 | 额定电压 | 引脚样式 | 引脚间距 | 封装形式 | 尺寸/外形 | 安装高度（最大） | 应用 | 额定等级 | RoHS | 其他名称 | 欧盟RoHS | 电压 | 电源线保护 | 深度 | 直径 | 引脚直径 | 柱间距 | 端接样式 | 类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

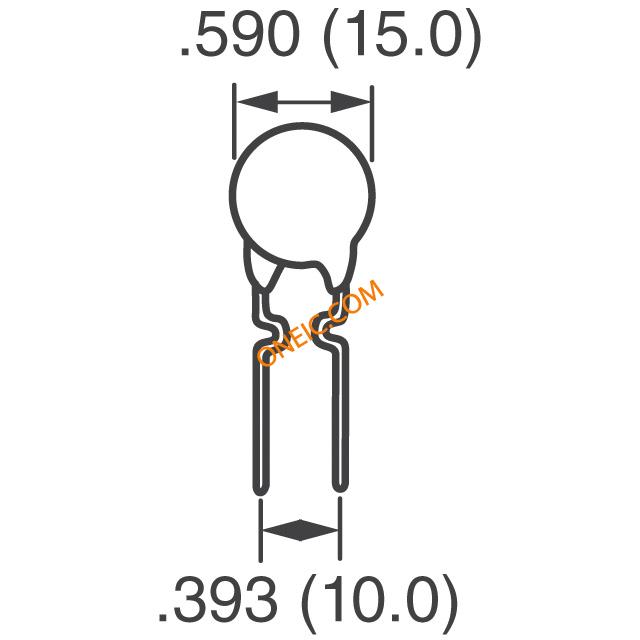

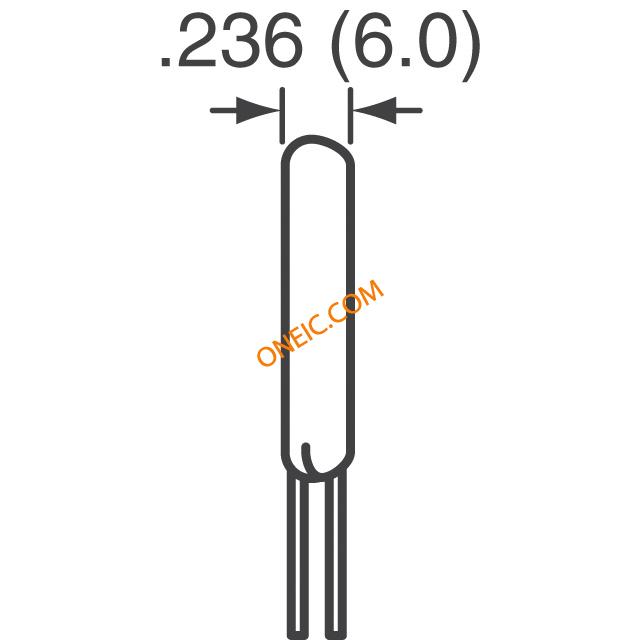

 Ceramic Disc Capacitors 250volts 4700pF 20% Cap Ceramic Suppression X1/Y2 0.0047uF 250VAC 20% (14 X 6mm) Radial 7.5mm 125°C Cardboard Strip CAP CER 4700PF 250V 20% RADIAL AVX | 0 | - | 20% | 0.0047uF | Cardboard Strip | Through Hole | -40°C ~ 125°C | 500 | 250VAC | Straight | 0.295" (7.50mm) | Radial, Disc | 0.591" Dia (15.00mm) | 0.236" (6.00mm) | Safety | X1Y2 | Lead free / RoHS Compliant | 478-4309 | Compliant | 250VAC | X1/Y2 | 6(Max) | 14 | 0.55 | 7.5 | Radial | Ceramic Disc | |
 | 0 | - | -20%, +50% | 4700pF | Bulk | Through Hole | -40°C ~ 125°C | 800 | 250VAC | Kinked | 0.394" (10.00mm) | Radial, Disc | 0.591" Dia (15.00mm) | 0.236" (6.00mm) | Safety | X1Y2 | - | 478-4310 | - | - | - | - | - | - | - | - | - | |
 Cap Ceramic Suppression X1/Y2 0.0047uF 250VAC 20% (14 X 6mm) Radial 12.5mm 125°C Cardboard Strip AVX | 10 | 500: ¥2.8383 | - | 20% | 0.0047uF | Cardboard Strip | Through Hole | 125 | - | - | - | - | - | - | - | - | - | - | - | Compliant | 250VAC | X1/Y2 | 6(Max) | 14 | 0.8 | 12.5 | Radial | Ceramic Disc |
| 0 | - | ±20% | 4700pF | Bulk | Through Hole | -40°C ~ 125°C | 500 | 250VAC | Straight | 0.295" (7.50mm) | Radial, Disc | 0.591" Dia (15.00mm) | 0.236" (6.00mm) | Safety | X1Y2 | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | ±20% | 4700pF | Bulk | Through Hole | -40°C ~ 125°C | 500 | 250VAC | Straight | 0.394" (10.00mm) | Radial, Disc | 0.591" Dia (15.00mm) | 0.236" (6.00mm) | Safety | X1Y2 | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | |
CAP CER 4700PF 250V 20% RADIAL Cap Ceramic Suppression Y2/X1 0.0047uF 250VAC 20% (14 X 6mm) Radial 10mm 125°C Bulk AVX Corporation | 106 | 1: ¥3.40 | - | ±20% | 4700pF | Bulk | Through Hole | -40°C ~ 125°C | 500 | 250VAC | Straight | 0.394" (10.00mm) | Radial, Disc | 0.591" Dia (15.00mm) | 0.236" (6.00mm) | Safety | X1Y2 | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - |
| 0 | - | ±20% | 4700pF | Bulk | Through Hole | -40°C ~ 125°C | 800 | 250VAC | Straight | 0.394" (10.00mm) | Radial, Disc | 0.591" Dia (15.00mm) | 0.236" (6.00mm) | Safety | X1Y2 | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | ±20% | 4700pF | Bulk | Through Hole | -40°C ~ 125°C | 500 | 250VAC | Straight | 0.492" (12.50mm) | Radial, Disc | 0.591" Dia (15.00mm) | 0.236" (6.00mm) | Safety | X1Y2 | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - |
