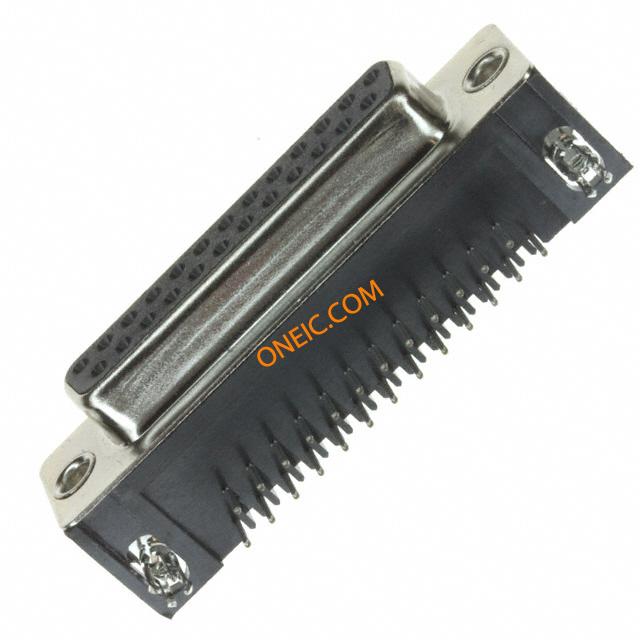

622-025-260 d-sub standard connector 系列
EDAC Inc.D-子微型25针插座连接器
EDAC Inc. 的622-025-260系列是一种坚固的D型25针插座连接器，专为高可靠性应用设计。这些连接器常用于视频和显示系统，以及工业控制面板和测试设备中。如果您正在从事需要高密度多针连接但又不需要昂贵或复杂的连接器的项目，那么这些D型连接器是一个不错的选择。
值得注意的是，它们具有很高的灵活性——可以处理模拟和数字信号，因此适用于远不止视频接口的各种应用。当工程师需要在紧凑空间内可靠且经济有效地连接多个信号时，往往会选用这种连接器。另一个实用的观察是它们的耐用性；这些连接器设计用于承受反复插拔循环和恶劣环境，这对于可能暴露在灰尘、湿气或机械应力下的工业环境中至关重要。
系列图片（3 张）
文档与媒体
常见问答
622-025-260 d-sub standard connector - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 最大额定电流 | 安装类型 | 接触镀层 | 工作温度 | RoHS | 标准包装数量 | 保护特性 | 接触电阻 | 击穿电压 | 绝缘电阻 | 颜色 | 镀层 | 占位面积 | 包装方式 | 端接方式 | 触头类型 | 连接器类型 | 法兰特征 | 排数 | 外壳材料（壳体） | 驱动力 | 连接器样式 | 触头材料 | 壳体材料 | 位数 | 绝缘材料 - 材质 | 铁氧体规格 | 外壳材料及表面处理 | 接触镀层厚度 | 外壳尺寸，连接器布局 | 类型 | 产品特性 | 卡标准 | 位置/触点数量 | 工厂包装数量 | 触点数 | 连接器性别 | 间距 | 外壳镀层 | 安装样式 | 端接样式 | 海关税号 | 量程（°/s） | 重量 | 外壳尺寸 | 本体材料 | 接触件端接 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 D-Sub Standard Connectors 25P RCPT RA .318 FP CONN D SUB RCPT 25POS R/A .318 D-Subminiature Type: Receptacle Total Contacts: 25 Plating: Gold Flash (Class 3) Mounting Option: #4-40 UNC threaded insert EDAC | 30 | 1: ¥12.58 | D-Sub Standard Connectors | 5 A | Right | Gold | -55°C ~ 105°C | RoHS Compliant | 25 | Four-prong boardlocks for .120 (3.05mm) dia. PCB hole | 10 milliohms maximum. | 1000 V AC rms @ sea level. | 5000 megohms minimum. | Black | Gold Flash (Class 3) | 0.318" | Tray | Solder | Signal | Receptacle, Female Sockets | Housing/Shell (4-40) | 2 | Steel | 1 to 10 oz. (0.28 to 2.78 N) per contact position. | D-Sub | Plug contacts - brass; receptacle contacts - phosphor bronze. | Polyester Thermoplastic | 25 | Thermoplastic polyester, UL 94V-0; chemical resistant; colour - black. | Attenuation - 20dB MIN @ 30Mhz, 30dB MIN @ 50MHz, and 50dB MIN @ 100Mhz. | Steel, Nickel Plated | Flash | 3 (DB, B) | Connectors & Jacks | Board Lock, Shielded | D-Subminiature | 25 | 25 | 25 | Male | 2.77 mm | Nickel | Through Hole | Solder | - | - | - | - | - | - |
 D-Sub Standard Connectors D SUB RECEPTACLE RA .318 FP D SUB RECEPTACLE RA .318 FP EDAC | 10 | 250: ¥9.52 | - | 5A | Panel Mount; Through Hole, Right Angle | Gold | -55°C ~ 105°C | RoHS Compliant | 250 | - | - | - | - | Black | - | - | Bulk | Solder | Signal | Receptacle, Female Sockets | Mating Side; Female Screwlock (4-40) | 2 | - | - | D-Sub | - | Polyester Thermoplastic | 25 | - | - | Steel, Nickel Plated | Flash | 3 (DB, B) | - | Board Lock, Shielded | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
D-Sub Standard Connectors D SUB RECEPTACLE RA .318 FP D-Subminiature Type: Receptacle Total Contacts: 25 Plating: Gold Flash (Class 3) Mounting Option: #4-40 UNC threaded insert EDAC | 10 | 25: ¥13.464 | - | 5 amperes. | #4-40 UNC threaded insert | Gold (see Ordering Code) over nickel for the mating area; tin/lead plating on contact tails. | -55° to +125° C | RoHS Compliant | - | .120 (3.05mm) dia. through hole top ground | 10 milliohms maximum. | 1000 V AC rms @ sea level. | 5000 megohms minimum. | - | Gold Flash (Class 3) | 0.318" | - | - | - | - | - | - | Nickel-plated steel. | 1 to 10 oz. (0.28 to 2.78 N) per contact position. | - | Plug contacts - brass; receptacle contacts - phosphor bronze. | - | - | Thermoplastic polyester, UL 94V-0; chemical resistant; colour - black. | Attenuation - 20dB MIN @ 30Mhz, 30dB MIN @ 50MHz, and 50dB MIN @ 100Mhz. | - | - | - | Connectors & Jacks | - | D-Subminiature | 25 | 25 | - | - | - | - | - | - | - | - | - | - | - | - |
D-Sub Standard Connectors D SUB RECEPTACLE RA .318 FP D SUB RECEPTACLE RA .318 FP EDAC | 10 | 250: ¥8.636 | - | 5A | Panel Mount; Through Hole, Right Angle | Gold | -55°C ~ 105°C | RoHS Compliant | 250 | - | - | - | - | Black | - | - | Bulk | Solder | Signal | Receptacle, Female Sockets | Housing/Shell (4-40) | 2 | - | - | D-Sub | - | Polyester Thermoplastic | 25 | - | - | Steel, Nickel Plated | Flash | 3 (DB, B) | - | Board Lock, Shielded | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 D-Sub Standard Connectors 25P DSUB R/A FEMALE .318 FOOTPRINT CONN D SUB RCPT 25POS R/A .318 Conn D-Subminiature RCP 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port CONNECTOR, D SUB, RECEPTACLE, 25 POS D-Subminiature Type: Receptacle Total Contacts: 25 Plating: Gold Flash (Class 3) Mounting Option: #4-40 UNC threaded standoff EDAC | 48 | 2: ¥20.808 | D-Sub Standard Connectors | 5A | Panel Mount; Through Hole, Right Angle | Gold | -55°C ~ 105°C | RoHS Compliant | 25 | - | - | - | - | Black | - | - | Bulk | Solder | Signal | Receptacle, Female Sockets | Mating Side; Female Screwlock (4-40) | 2 | - | - | D-Sub | - | Polyester Thermoplastic | 25 | - | - | Steel, Nickel Plated | Flash | 3 (DB, B) | - | Board Lock, Shielded | - | - | 25 | :25 | :Receptacle | - | - | - | - | 85366930 | :EDAC - 622 Series | 0 | :DB | :Steel | :Through Hole Right Angle |
CONN D SUB RCPT 25POS R/A .318 D-Subminiature Type: Receptacle Total Contacts: 25 Plating: Gold Flash (Class 3) Mounting Option: 125 (3.18mm) dia. through-hole EDAC Inc. | 0 | - | 5 amperes. | 125 in. (3.18mm) dia. through-hole | Gold (see Ordering Code) over nickel for the mating area; tin/lead plating on contact tails. | -55° to +125° C | - | - | .120 (3.05mm) dia. through hole top ground | 10 milliohms maximum. | 1000 V AC rms @ sea level. | 5000 megohms minimum. | - | Gold Flash (Class 3) | 0.318" | - | - | - | - | - | - | Nickel-plated steel. | 1 to 10 oz. (0.28 to 2.78 N) per contact position. | - | Plug contacts - brass; receptacle contacts - phosphor bronze. | - | - | Thermoplastic polyester, UL 94V-0; chemical resistant; colour - black. | Attenuation - 20dB MIN @ 30Mhz, 30dB MIN @ 50MHz, and 50dB MIN @ 100Mhz. | - | - | - | Connectors & Jacks | - | D-Subminiature | 25 | - | - | - | - | - | - | - | - | - | - | - | - | - | |
CONN D SUB RCPT 25POS R/A .318 D-Subminiature Type: Receptacle Total Contacts: 25 Plating: Gold Flash (Class 3) Mounting Option: #4-40 UNC threaded standoff EDAC Inc. | 10 | 1: ¥33.5608 | - | 5 amperes. | #4-40 UNC threaded standoff | Gold (see Ordering Code) over nickel for the mating area; tin/lead plating on contact tails. | -55° to +125° C | - | - | .120 (3.05mm) dia. through hole top ground | 10 milliohms maximum. | 1000 V AC rms @ sea level. | 5000 megohms minimum. | - | Gold Flash (Class 3) | 0.318" | - | - | - | - | - | - | Nickel-plated steel. | 1 to 10 oz. (0.28 to 2.78 N) per contact position. | - | Plug contacts - brass; receptacle contacts - phosphor bronze. | - | - | Thermoplastic polyester, UL 94V-0; chemical resistant; colour - black. | Attenuation - 20dB MIN @ 30Mhz, 30dB MIN @ 50MHz, and 50dB MIN @ 100Mhz. | - | - | - | Connectors & Jacks | - | D-Subminiature | 25 | - | - | - | - | - | - | - | - | - | - | - | - | - |
