591202B thermal management 系列

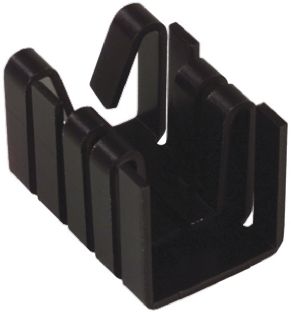

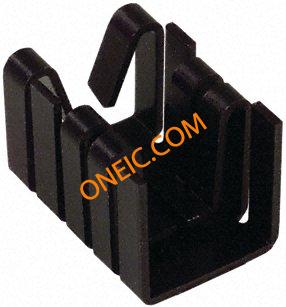

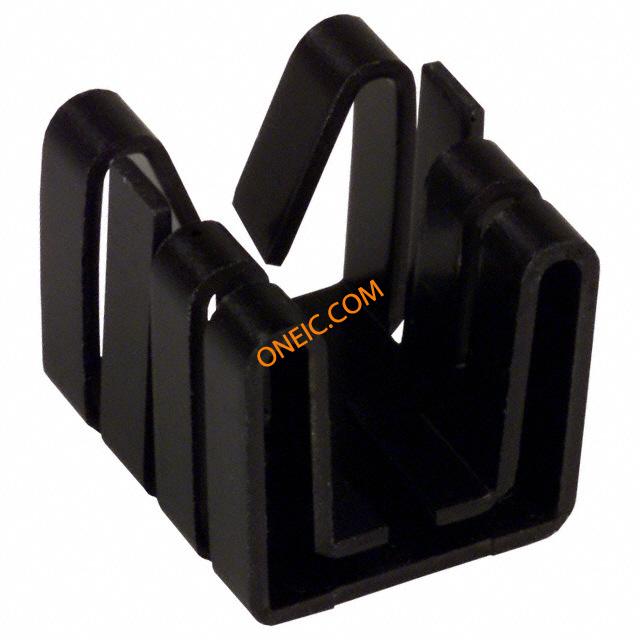

Aavid Thermalloy, LLCTO-220/TO-262黑色阳极氧化散热片
Aavid Thermalloy, LLC 的 591202B 系列散热器由黑色阳极氧化散热器组成，专门设计用于 TO-220 和 TO-262 封装。这些散热器广泛应用于需要高效散热的功率电子设备和高功率半导体应用中。如果您正在处理涉及功率 MOSFET、IGBT 或类似会产生大量热量的组件的项目，这些散热器是理想的选择。
值得注意的是，它们具有坚固的设计。黑色阳极氧化表面不仅增加了耐用性，还提升了美观度，使其适用于工业和消费电子产品。当工程师们需要一种可靠的方式来管理热量而不影响组件性能时，往往会选用这些散热器。另一个实用的观察结果是它们的多功能性；它们有多种尺寸和配置可供选择，允许您根据具体需求定制散热策略。
如果您的组件在较高电流下运行或处于较高环境温度下，591202B 系列可以显著提高热性能，确保系统随着时间的推移保持稳定和高效。
系列图片（14 张）
文档与媒体
常见问答
591202B thermal management - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 表面处理 | 高度 | 冷却的封装 | 总长度 | 固定方法 | 类型 | 热阻 | 深度 | 材料（通用） | 交货时间 | 子类别 | 适用产品/相关产品 | 标准包装数量 | RoHS | 欧盟RoHS | 形状 | 宽度 | 长度 | 材料表面处理 | 安装高度（最大） | 自然散热热阻 | 温升功耗 | 强制风冷热阻 | 其他名称 | 产品 | 零件号别名 | 工厂包装数量 | 颜色 | 安装样式 | 散热器材料 | 应用领域 | 抗辐射加固 | 散热片高度 | 海关税号 | 重量 | 宽度（英寸） | 高度（英寸） | 总宽度 | 外壳尺寸 - 插入（转换自） | 安装类型 | 尺寸/外形 | 连接器颜色 | 热保护 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Heat Sink Passive TO-220/TO-262 Clip 26.8°C/W Black Anodized Heat Sinks TO-220 HORZ MOUNT BOARD LEVEL HEAT SINK aavid thermalloy | 479 | 2000: ¥14.008 | Heat Sinks | Black Anodized | 12.7 mm | TO-220|TO-262 | 14.48 mm | Clip | Passive | 26.8 °C/W | 15.24 mm | Aluminum | - | - | - | Bulk | No | Compliant | Rectangular | 12.7 mm | 15.24 mm | Black Anodized | 0.500" (12.70mm) | 26.8°C/W | 1W @ 40°C | 16.0°C/W @ 200 LFM | 041875 | Heat Sinks | 041875 | 2000 | Black | Plug In | Aluminum | TO-220, TO-262 | - | - | - | - | - | - | - | - | - | - | - | - |

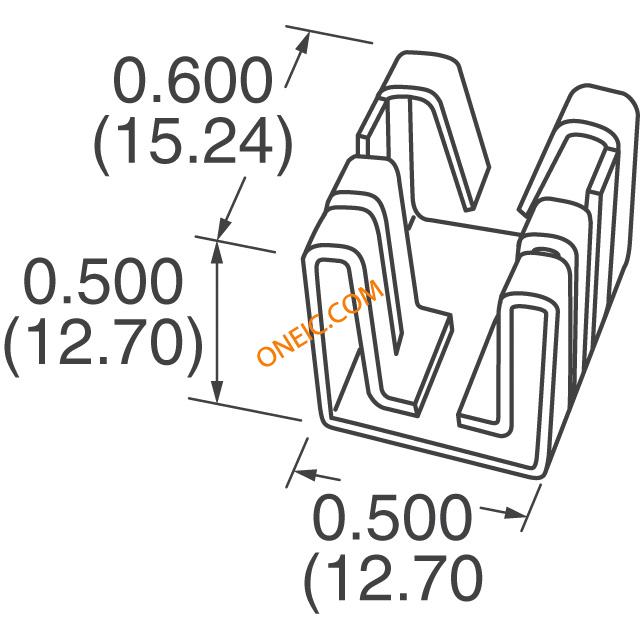

 Heat Sink Passive TO-220/TO-262 26.8°C/W Black Anodized Heat Sinks TO-220 HORZ MOUNT HEATSINK TO-220 VERT/HORZ MOUNT Heatsink TO220 TO262 26.8K/W spring clip Heat Sink Passive TO-220/TO-262 26.8C/W Black Anodized HEAT SINK AAVID THERMALLOY 黑色 散热器, 印刷电路板通孔安装安装 , 12.7 x 14.48 x 15.24mm aavid thermalloy | 1650 | 1: ¥4.5152 | Heat Sinks | Black Anodized | 12.7 mm | TO-220|TO-262 | 15.24 mm | Clip | Passive | 26.8 °C/W | 14.48 mm | Aluminum | 56 Days | Heat Sink | 591202B00000 | Bulk | RoHS Compliant | Compliant | Rectangular | 14.48 mm | 15.24 mm | Black Anodized | 0.500" (12.70mm) | 26.8°C/W | 1W @ 40°C | 16.0°C/W @ 200 LFM | - | Heat Sinks | 002775 | 2000 | Black | Plug In | Aluminum | TO-220, TO-262 | No | Folded | 90261089 | 0 | :0.5" | :0.6" | :12.7mm | :15.24mm | PCB Through Hole | 12.7 x 14.48 x 15.24mm | Black | :Aluminium |
 Heat Sink Passive TO-220 Clip 26.8°C/W Black Anodized Heat Sinks TO-220 15.24X12.70 BLACK ANODIZE BOARD LEVEL HEAT SINK Heat Sink Passive TO-220 Clip 26.8C/W Black Anodized HEAT SINK aavid thermalloy | 2036 | 1: ¥2.72 | Heat Sinks | Black Anodized | 12.7 mm | TO-220 | 15.24 mm | Clip | Passive | 26.8 °C/W | 14.48 mm | Aluminum | - | - | - | Bulk | Lead free / RoHS Compliant | Compliant | Rectangular | 12.7 mm | 12.7 mm | Black Anodized | 0.500" (12.70mm) | 26.8°C/W | 1W @ 40°C | 16.0°C/W @ 200 LFM | 041876 | Heat Sinks | 041876 | 2000 | Black | Plug In | Aluminum | TO-220 | No | - | 76041090 | 0 | :0.57" | :0.6" | :14.48mm | :15.24mm | - | - | - | - |
Heat Sink Passive TO-220/TO-262 Clip 26.8°C/W Black Anodized BOARD LEVEL HEAT SINK aavid thermalloy | 10 | 12000: ¥3.842 | - | Black Anodized | 12.7 mm | TO-220|TO-262 | 15.24 mm | Clip | Passive | 26.8 °C/W | - | Aluminum | - | - | - | Bulk | Lead free / RoHS Compliant | - | Rectangular | 0.500" (12.70mm) | 0.600" (15.24mm) | Black Anodized | 0.500" (12.70mm) | 26.8°C/W | 1W @ 40°C | 16.0°C/W @ 200 LFM | 041878 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Heat Sink Passive TO-220/TO-262 Clip 26.8°C/W Black Anodized BOARD LEVEL HEAT SINK aavid thermalloy | 10 | 12000: ¥3.842 | - | Black Anodized | 12.7 mm | TO-220|TO-262 | 15.2 mm | Clip | Passive | 26.8 °C/W | 14.48 mm | Aluminum | - | - | - | Bulk | Lead free / RoHS Compliant | - | Rectangular | 0.500" (12.70mm) | 0.600" (15.24mm) | Black Anodized | 0.500" (12.70mm) | 26.8°C/W | 1W @ 40°C | 16.0°C/W @ 200 LFM | 041879 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Heat Sink Passive TO-220/TO-262 Vertical Clip/Mounting Tab 26.8°C/W Black Anodized Heat Sinks TO-220 VERT MOUNT Heat Sink Passive TO-220/TO-262 Vertical Thru-Hole 26.8°C/W Black Anodized BOARD LEVEL HEAT SINK Heat Sink Passive TO-220/TO-262 Vertical Thru-Hole 26.8C/W Black Anodized aavid thermalloy | 510 | 3: ¥12.4304 | Heat Sinks | Black Anodized | 15.24 mm | TO-220|TO-262 | 14.48 mm | Clip/Mounting Tab | Passive | 26.8 °C/W | 12.7 mm | Aluminum | - | - | - | Bulk | No | Compliant | Rectangular | 12.7 mm | 12.7 mm | Black Anodized | 0.500" (12.70mm) | 26.8°C/W | 1W @ 40°C | 16.0°C/W @ 200 LFM | 041880 | Heat Sinks | 041880 | 2000 | Black | Plug In | Aluminum | TO-220, TO-262 | No | Vertical | - | - | - | - | - | - | - | - | - | - |
 | 10 | 4000: ¥4.0943 | - | Black Anodized | 12.7 | TO-220 | 15.24 | Clip | Passive | 26.8°C/W | 14.48 | - | 84 Days | Heat Sink | 591202B03700G | - | - | Not Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Heat Sink Passive TO-220/TO-262 Vertical Thru-Hole Aluminum 26.8°C/W Black Anodized Aavid Thermalloy | 10 | 10000: ¥3.0063 | - | Black Anodized | 15.24 | TO-220|TO-262 | 14.48 | Clip/Mounting Tab | Passive | 26.8°C/W | 12.7 | Aluminum | 84 Days | Heat Sink | 591202B04000G | - | - | Not Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Vertical | - | - | - | - | - | - | - | - | - | - |
Aavid Thermalloy | 0 | - | - | - | - | - | - | - | - | - | - | 84 Days | Not Specified | 591202B03100G | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Aavid Thermalloy | 0 | - | - | - | - | - | - | - | - | - | - | 84 Days | Heat Sink | 591202B00000G | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 Aavid Thermalloy | 0 | - | - | - | - | - | - | - | - | - | - | 84 Days | Heat Sink | 591202B03800G | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 Aavid Thermalloy | 0 | - | - | - | - | - | - | - | - | - | - | 84 Days | Heat Sink | 591202B03900G | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
