cigen-5173C

5173C cable, wire & assemblie 系列

Alpha Wire Corporation

Alpha Wire Corporation

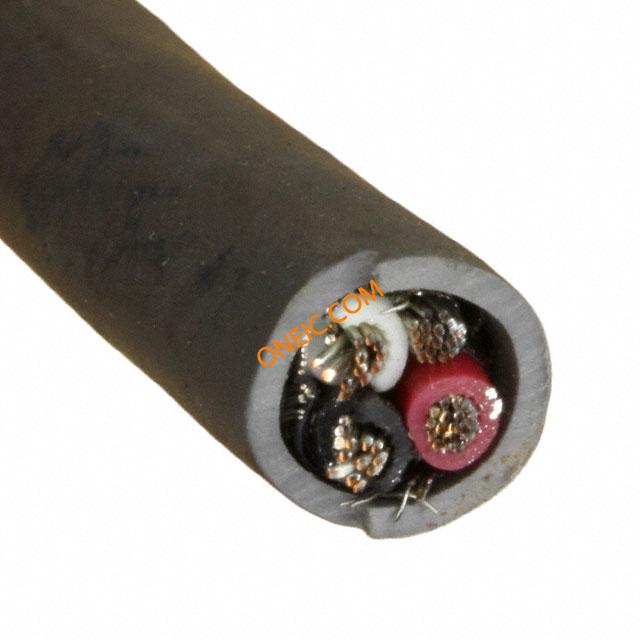

16AWG 3-core slate multi-conductor cables

系列图片（4 张）

文档与媒体

5173C%20SL002.pdf

429269.pdf

5173C%20SL005.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

5173C cable, wire & assemblie - 型号列表

共 6 个型号

制造商零件编号	库存	价格	产品类别	标准包装数量	RoHS	SVHC	海关税号	电压	额定电压	导体绞线	导体数量	颜色	长度	重量	电缆类型	导线线规	屏蔽类型	线缆护套颜色	外径（标称值）	屏蔽覆盖率	屏蔽材料	总长度	导体材料	外径	导体绝缘	线规或范围 - AWG	护套（绝缘）直径	护套（绝缘）材料	护套（绝缘）厚度	产品特性	核心数	工作温度	包装方式	屏蔽	电缆对数	类型	用途	系列	其他名称
3 5173C SL005 Multi-Conductor Cables 16AWG 3C SHIELD 100ft SPOOL SLATE CABLE 16 AWG 3 COND 100' SHLD CABLE, 16AWG, 3 CORE, SLATE, 30.5M Alpha Wire	10	¥2,183.46	Multi-Conductor Cables	1	RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	300 V	19/0.0117"	3	Slate	100 ft	75 lbs	Multi-Conductor	16	Foil, Braid	Gray	:8mm	100%, 70%	Suprashield®; Copper, Tinned	:100ft	Copper, Tinned	8.13 mm	Poly-Vinyl Chloride (PVC)	:16AWG	0.292" (7.42mm)	Polyvinyl Chloride (PVC)	0.032" (0.81mm)	Point-Of-Sale Equipment	:3	-30°C ~ 80°C	Spool	Shielded	19 x 0.0117	Xtra-Guard 1	Communication, Control	5173	-
2 5173C SL002 Multi-Conductor Cables 16AWG 3C SHIELD 500ft SPOOL SLATE 5173C SLATE 500 FT CABLE, 16AWG, 3 CORE, SLATE, 152.4M Alpha Wire	10	¥6,425.93	Multi-Conductor Cables	1	RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	300 V	19/0.0117"	3	Slate	500 ft	75 lbs	Multi-Conductor	16	Foil, Braid	Gray	:8mm	100%, 70%	Suprashield®; Aluminum	:500ft	Copper, Tinned	8.13 mm	Poly-Vinyl Chloride (PVC)	:16AWG	0.292" (7.42mm)	Polyvinyl Chloride (PVC)	0.032" (0.81mm)	Point-Of-Sale Equipment	:3	-30°C ~ 105°C	Spool	Shielded	19 x 0.0117	Xtra-Guard 1	-	5173	-
5173C SL001 CABLE XTRA-GRD1 16AWG 3COND1000zzz CABLE 16 AWG 3 COND 1000' SHLD CABLE, 16AWG, 3 CORE, SLATE, 304.8M Xtra-Guard-Performance-Cable, Xtra-Guard-1, 3 Conductor, 16 AWG, SupraShield Premium Foil Braid, 300 V, PVC Jacket, PVC Insulation, 0.292 Jacket Diameter, 0.032 Jacket Thickness, 19/0117 Stranding Alpha Wire	10	¥11,959.20	-	1	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85444995	300V	:300V	19/0.0117"	3	Slate	1000' (304.8m)	1	Multi-Conductor	16 AWG	Foil, Braid	:Slate	:8mm	100%, 70%	Suprashield®; Copper, Tinned	:1000ft	Copper, Tinned	:8mm	Poly-Vinyl Chloride (PVC)	:16AWG	0.292" (7.42mm)	Poly-Vinyl Chloride (PVC)	0.032" (0.81mm)	Drain Wire, Rip Cord	:3	-30°C ~ 80°C	-	-	-	-	Communication, Control	-	5173CSL001
5173C BK199 5173C BLACK 1000 = 1000 FT Alpha Wire	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5173C ALPHA WIRE	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5173C SL199 ALPHA WIRE	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
