5064C wire & cable 系列

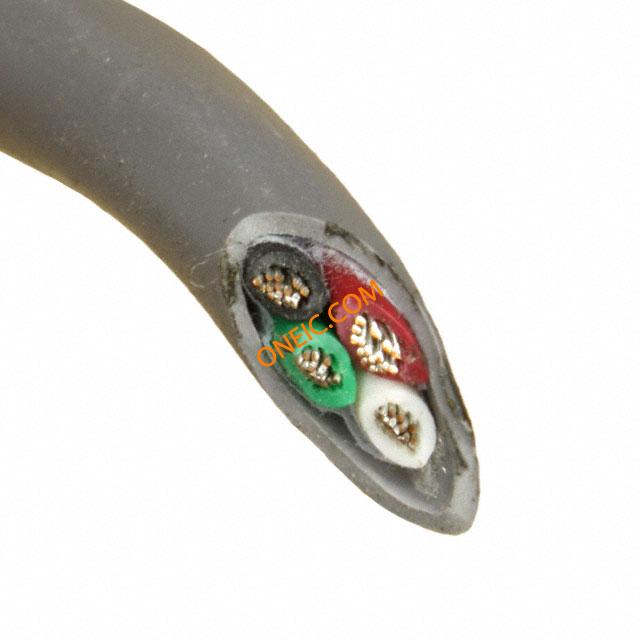

Alpha Wire Corporation18 AWG 4 芯非屏蔽电缆
Alpha Wire Corporation 的 5064C 系列是一种18 AWG 4芯无屏蔽电缆，适用于各种低压应用。这些电缆常用于工业控制系统、自动化和机械设备中，可靠性与灵活性是关键因素。如果您在项目中需要紧凑形式因子内的多条信号线和电源导线，这些电缆是一个不错的选择。
值得一提的是其耐用性。尽管是无屏蔽设计，5064C 系列电缆仍能承受工业环境的严苛条件。护套材料提供良好的耐磨性和化学耐受性，使其适合恶劣环境。当工程师们需要一种坚固且灵活的电缆解决方案而不需要屏蔽带来的额外复杂性时，往往会选择这种电缆。
另一个实用方面是其易于端接。绞合导体使得这些电缆容易压接，这对于高产量制造环境中需要一致且可靠的连接至关重要。总体而言，5064C 系列在性能和成本之间取得了很好的平衡，使其成为许多工业布线需求的理想选择。
系列图片（3 张）
文档与媒体
常见问答
5064C wire & cable - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 额定电压 | 导体数量 | 电缆类型 | 导线线规 | 线缆护套颜色 | 导体材料 | 外径 | 电缆对数 | 护套（绝缘）厚度 | 标准包装数量 | RoHS | SVHC | 海关税号 | 电压 | 导体绞线 | 颜色 | 长度 | 重量 | 包装方式 | 屏蔽 | 屏蔽类型 | 外径（标称值） | 总长度 | 导体绝缘 | 线规或范围 - AWG | 护套（绝缘）直径 | 护套（绝缘）材料 | 类型 | 用途 | 系列 | 产品特性 | 核心数 | 工作温度 | 标准 | 绝缘材料 - 材质 | 线规或范围 - mm² | 应用细节 | 温度额定值 | 结工作温度 | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Multi-Conductor Cables 18AWG 4C UNSHLD 500ft SPOOL SLATE 5064C SLATE 500 FT CABLE, 18AWG, 4 CORE, SLATE, 152.4M Alpha Wire | 10 | 1: ¥5,291.04 | Multi-Conductor Cables | 300 V | 4 | Multi-Conductor | 18 | Gray | Copper, Tinned | 6.6 mm | 16 x 30 | 0.032" (0.81mm) | 1 | RoHS Compliant | :No SVHC (20-Jun-2013) | 85444995 | 300V | 16/30 | Slate | 500 ft | 21.500 lbs | Spool | Unshielded | :Unshielded | :6.6mm | :500ft | Poly-Vinyl Chloride (PVC) | :18AWG | 0.259" (6.58mm) | Polyvinyl Chloride (PVC) | Xtra-Guard 1 | Communication, Control | 5064 | Nylon Rip Cord for Ease of Jacket Stripping | :4 | -30°C ~ 80°C | - | - | - | - | - | - | - |
Multi-Conductor Cables 18AWG 4C UNSHLD 100ft SPOOL SLATE CABLE 18 AWG 4 COND 100' UNSHLD CABLE, 18AWG, 4 CORE, SLATE, 30.5M Alpha Wire | 14 | 1: ¥2,945.148 | Multi-Conductor Cables | 300 V | 4 | Multi-Conductor | 18 | Gray | Copper, Tinned | 6.6 mm | 16 x 30 | 0.032" (0.81mm) | 1 | RoHS Compliant | :No SVHC (20-Jun-2013) | 85444995 | 300V | 16/30 | Slate | 100 ft | 4.300 lbs | Spool | Unshielded | :Unshielded | :6.6mm | :100ft | Poly-Vinyl Chloride (PVC) | :18AWG | 0.259" (6.58mm) | Polyvinyl Chloride (PVC) | Xtra-Guard 1 | Communication, Control | 5064 | Nylon Rip Cord for Ease of Jacket Stripping | :4 | -30°C ~ 80°C | - | - | - | - | - | - | - |
Multi-Conductor Cables 18AWG 4C UNSHLD 1000ft SPOOL SLATE CABLE 18AWG 4 COND 1000' UNSHLD CABLE, 18AWG, 4 CORE, SLATE, 304.8M Xtra-Guard-Performance-Cable, Xtra-Guard-1, 4 Conductor, 18 AWG, Unshielded, 300 V, PVC Jacket, PVC Insulation, 0.259 Jacket Diameter, 0.032 Jacket Thickness, 16/30 Stranding Alpha Wire | 39 | 1: ¥5,508.48 | Multi-Conductor Cables | 300 V | 4 | Multi-Conductor | 18 | Gray | Copper, Tinned | 6.6 mm | 16 x 30 | 0.032" (0.81mm) | 1 | RoHS Compliant | :No SVHC (20-Jun-2013) | 85444995 | 300V | 16/30 | Slate | 1000 ft | 43 lbs | Spool | Unshielded | :Unshielded | :6.6mm | :1000ft | Poly-Vinyl Chloride (PVC) | :18AWG | 0.259" (6.58mm) | Polyvinyl Chloride (PVC) | Xtra-Guard 1 | Communication, Control | 5064 | Nylon Rip Cord for Ease of Jacket Stripping | :4 | -30°C ~ 80°C | - | - | - | - | - | - | 5064CSL001 |
 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 1450 | 250: ¥42.432 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | 300V | 4Cond | Unshielded | 18 | Gray | TinnedCopper | 0.26" | 16×30 | 0.017in. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ULTypeCM,AWMStyle2464,CSACMGFT4,CE | Color-CodedPremiumPVC | 18AWG | Forhightechnologyincontrolledenvironments,medicalelectronics,point-of-saleequipment,computerperipherals,industrialprocesscontrols | -20to+80°C(AWM),-20to+75°C(CM) | +80°C | - | |
| 0 | - | 300V | 4Cond | Unshielded | 18 | Gray | TinnedCopper | 0.26" | 16×30 | 0.017in. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ULTypeCM,AWMStyle2464,CSACMGFT4,CE | Color-CodedPremiumPVC | 18AWG | Forhightechnologyincontrolledenvironments,medicalelectronics,point-of-saleequipment,computerperipherals,industrialprocesscontrols | -20to+80°C(AWM),-20to+75°C(CM) | +80°C | - | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
ALPHA WIRE | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
