5-1618388 系列
TE Connectivity Ltd.Electromechanical SPST-NO relays for various voltages
系列图片（6 张）
文档与媒体
常见问答
5-1618388 - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装规格 | 标准包装数量 | 抗辐射加固 | 线圈类型 | 线圈电流 | 线圈电压 | 释放时间 | 可见输出 | 线圈电阻 | 极数 | 供电电压 | 开关电压 | Vgs(th)（最大）@ Id | 连接器阻抗 | 二极管配置 | 最大额定电流 | 集电极-发射极饱和电压（最大）@ Vge, Ic | 触点额定电流 | 密封 | 包装方式 | 触点形式 | 致动器类型 | 安装类型 | 连接器类型 | 安装样式 | 端接排数 | 端接样式 | 典型触点布局 | 最大瞬时扭矩（oz-in / mNm） | 类型 | 产品特性 | 继电器类型 | 产品子类型 | 按下测试类型 | 动作时间 | 工作温度 | 释放范围（时间） | 断态电压 | 触点额定值 @ 电压 | 长度 | 触点形状 | 操作力 | 系列 | 海关税号 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 1: ¥717.196 | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 19 | 1: ¥920.312 | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 85364900 | 0 |

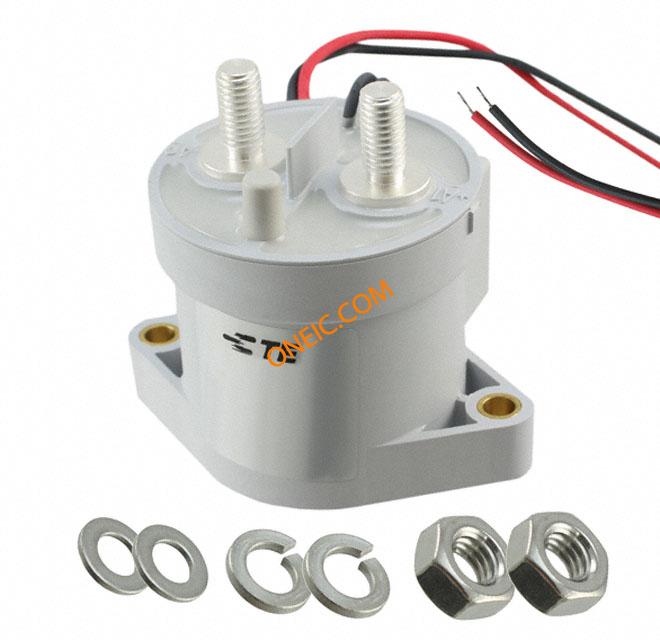

 5-1618388-5 RELAY CONTACTOR SPST 500A 24V Contactors Electromechanical Relay SPST-NO-DM 500A 24VDC Flange Mount LEV200H5ANA=RELAY, SPST-NO TE Connectivity | 729 | 1: ¥892.432 | - | - | 1 | No | Non Latching | 600mA | 24V | 12ms | No | 40 Ohms | 1 | 24VDC | 900VDC - Max | 5 VDC | 1 Form X, SPST-NO DM | No | 500 | 19 VDC | 500A | Sealed | Bulk | SPST-NO (1 Form X) | 直流 | Chassis Mount | 密封 | Flange | None | Stud | SPST-NO-DM | 80 – 100 | Contactor Relay | Sealed - Hermetically | Contactor | 继电器 - 接触器 | No | 25ms | -40°C ~ 85°C | 12ms | 5 VDC | 500A | 390 mm [ 15.3 in ] | SPST-NO (1 Form X) | 25ms | LEV200, KILOVAC | - | - |
 5-1618388-8 RELAY CONTACTOR SPST 500A 48V Electromechanical Relay SPST-NO-DM 500A 48VDC Flange Mount Electromechanical Relay SPST-NO-DM 500A 48VDC Flange Mount Product Highlights:Contactor Type = SealedLEV200 SeriesDC Actuating SystemNumber of Poles = 1Contact Arrangement = 1 Form X, SPST-NO-DMSearch Keywords:HVAC, industrial equipment, 20 amps, double-make/double-break contacts, linear contact motion, HECS LEV200A6NAA=RELAY, SPST-NO TE Connectivity | 723 | 1: ¥590.648 | - | - | 5 | No | Non Latching | 331mA | 48V | 12ms | No | 145 Ohms | 1 | 48VDC | 900VDC - Max | 7 VDC | 1 Form X, SPST-NO DM | No | 500 | 38 VDC | 500A | Sealed | Bulk | SPST-NO (1 Form X) | 直流 | Chassis Mount | 密封 | Flange | None | Stud | SPST-NO-DM | 80 | Contactor Relay | Sealed - Hermetically | Contactor | 继电器 - 接触器 | No | 25ms | -40°C ~ 85°C | 12ms | 7 VDC | 500A | - | SPST-NO (1 Form X) | 25ms | LEV200, KILOVAC | - | - |

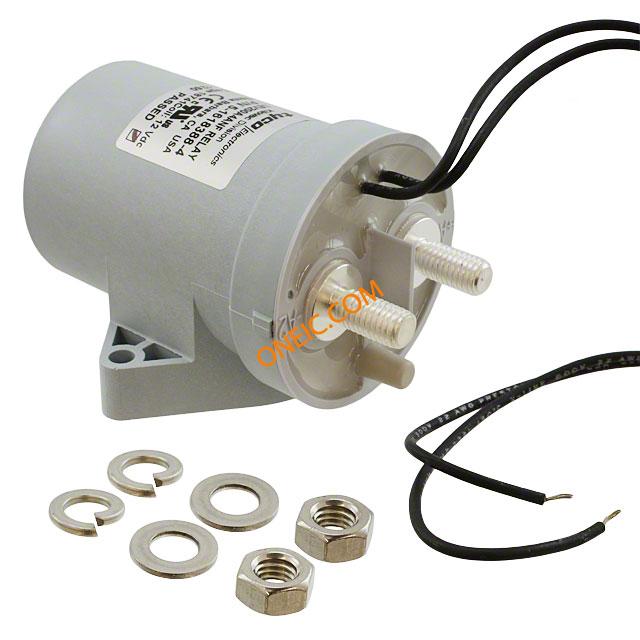

 5-1618388-4 RELAY CONTACTOR SPST 500A 12V Electromechanical Relay SPST-NO-DM 500A 12VDC Flange Mount LEV200A4ANF=RELAY, SPST-NO TE Connectivity | 230 | 1: ¥590.648 | - | - | 1 | No | Non Latching | 1.1A | 12V | 12ms | No | 11 Ohms | 1 | 12VDC | 900VDC - Max | 2 VDC | 1 Form X, SPST-NO DM | No | 500 | 9 VDC | 500A | Sealed | Bulk | SPST-NO (1 Form X) | 直流 | Chassis Mount | 密封 | Flange | None | Stud | SPST-NO-DM | 80 – 100 | Contactor Relay | Sealed - Hermetically | Contactor | 继电器 - 接触器 | No | 25ms | -40°C ~ 85°C | - | - | - | 390 mm [ 15.3 in ] | - | - | - | - | - |
| 10 | 1: ¥596.496 | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
