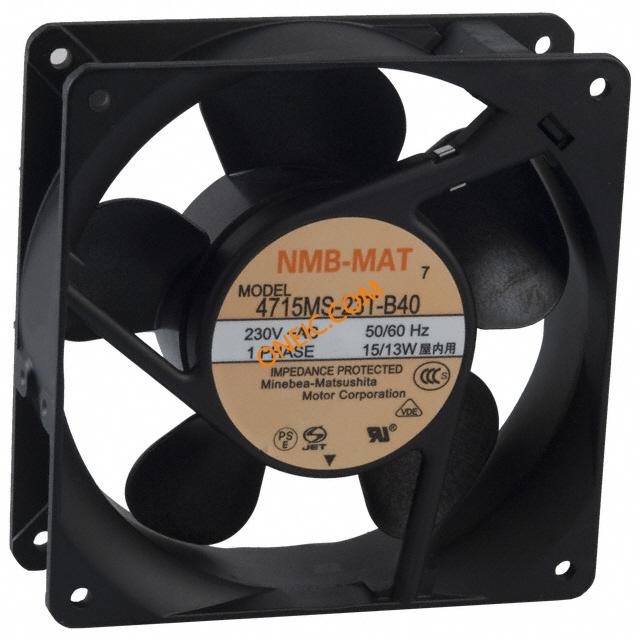

4715MS-23T fans, thermal management 系列
MinebeaMitsumi Inc.AC轴流风扇，具有多种规格
MinebeaMitsumi Inc. 的4715MS-23T 风扇系列是一款专为各种电子和工业应用中的高效热管理设计的AC轴流风扇。这些风扇具有不同的规格，以满足特定的冷却需求，使它们成为工程师在系统中维持最佳运行温度时的一个多功能选择。
如果您正在处理电源供应、服务器机架或工业控制面板等相关项目，这些风扇可以作为首选解决方案。它们在提供足够的气流同时还能保持较低的噪音水平，这对于维持性能并避免对环境造成不必要的干扰至关重要。值得一提的是，这些风扇具有相对较低的外形尺寸，使其适合其他较大风扇无法适应的紧凑空间。
当工程师需要可靠的冷却而不想使用复杂的液冷解决方案时，往往会选用这一系列风扇。4715MS-23T 风扇以其坚固的制造质量和长时间的一致性能而闻名，在关键任务环境中这一点尤为重要。此外，它们能够处理多种电压和速度的能力也使它们在不同电源供应场景下更具适用性，进一步增强了其在各种应用中的实用性。
系列图片（10 张）
文档与媒体
常见问答
4715MS-23T fans, thermal management - 型号列表
共 14 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 噪声 | 轴承类型 | 功率（瓦） | 额定电压 | 重量 | 端接方式 | 尺寸/外形 | 额定寿命 | 工作温度 | 标准包装数量 | RoHS | 最大额定电流 | RPM | 风量 | 风扇类型 | 静压 | 刀片材料 | 框架材料 | 系列 | 交货时间 | 子类别 | 转速 | 频率 | 深度 | 供电电压 | 其他名称 | 欧盟RoHS | 海关税号 | 额定功率 | 输出电流 | 供电类型 | 高度 | 流量 (CFM) | 流量（SCFM） | 安装类型 | 壳体材料 | 总长度 | 最大压力 | 功能 | 类型 | 宽度 | 高度（最大） | 平均正向功率 | 抗辐射加固 | 噪声系数 | 供电电流 | 直径 | 安装样式 | 结工作温度 | 最大功率 | 噪声系数（dB典型值 @ f） | 尺寸 | 操作力 | SVHC | 外径 | 面板开孔形状 | 安装孔直径 | 安装面板厚度 | 电容 | 材料（通用） | 总体尺寸 | 制造商全称 | 产品子类型 | 制造国家 | 温度 | 高风量 | 工作压力 | 电压 | 流速 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 AC Fan Ball Bearing 230V 0.06A 7.5W 50Hz/60Hz 2100RPM/1900RPM 70.6CFM/67CFM 32dB/30dB Flange Mount FAN AC AXIAL 230V 119X38 1900RPM FAN, 119MM, 230VAC, 70.6CFM, 32DB Axial fan AC 119 x 119 x 38 mm 120 m³/h 230 VAC 7.5 W, 4715MS-23T-B20-A00, NMB NMB Technologies Corporation | 668 | 1: ¥92.548 | - | 30 dB | Ball | 7.5W | 230VAC | 1.2 lbs (544.3g) | Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.060A | 1900 RPM | 67.0 CFM (1.89m³/min) | Tubeaxial | 0.086 in H2O (21.5 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | :4715MS | 112 Days | Blowers and Fans | Counter Clockwise | 50|60 | 119 | :230VAC | - | Compliant | 84145920 | 7.5 | 0.06 | :Terminals | 38 | :2m³/min | :70.6cu.ft/min | Flange Mount | Aluminum | 119 | 0.141inH2O|0.086inH2O | :AC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
AC Fan Ball Bearing 230V 0.12A/0.1A 15W/14W 50Hz/60Hz 2600RPM/2900RPM 88.2CFM/102CFM 37dB/41dB Flange Mount FAN AC AXIAL 230V 119X38 2900RPM FAN, 119X119X38MM, 230VAC, 88.2CFM, 37DB NMB Technologies Corporation | 690 | 1: ¥90.60 | - | 41 dB | Ball | 14.0W | 230VAC | 1.2 lbs (544.3g) | Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.100A | 2900 RPM | 102.0 CFM (2.88m³/min) | Tubeaxial | 0.283 in H2O (70.5 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | :4715MS | 105 Days | Blowers and Fans | Counter Clockwise | 50/60 Hz | 119 mm | :230VAC | - | Compliant | 84145920 | 15/14 W | 0.12|0.1 | :Terminals | 38 mm | :2.5m³/min | :88.2cu.ft/min | Flange Mount | Aluminum | 119 mm | 0.255inH2O|0.283inH2O | - | AC Fan | - | - | - | No | 37/41 dB | 0.12/0.1 A | Not Required mm | Flange | 70C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 AC Fan Ball Bearing 230V 0.05A/0.045A 6.5W/6W 50Hz/60Hz 1350RPM/1450RPM 45.9CFM/49.4CFM 27dB/28dB Flange Mount FAN AC AXIAL 230V 119X38 1450RPM NMB Technologies Corporation | 97 | 1: ¥92.548 | - | 28 dB | Ball | 6.0W | 230VAC | 1.2 lbs (544.3g) | Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.045A | 1450 RPM | 49.4 CFM (1.40m³/min) | Tubeaxial | 0.059 in H2O (14.7 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | 4715MS | 108 Days | Blowers and Fans | Counter Clockwise | 50|60 | 119 | - | - | Compliant | - | 6.5|6 | 0.05|0.045 | - | 38 | - | - | Flange Mount | Aluminum | 119 | 0.059inH2O | - | - | - | - | - | - | - | - | - | - | - | 6.0W | 28 dB | Square - 119mm L x 119mm H x 38mm W | 0.059 in H2O (14.7 Pa) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 AC Fan Ball Bearing 230V 0.12A/0.1A 15W/13W 50Hz/60Hz 2450RPM/2750RPM 85CFM/95CFM 35dB/39dB Flange Mount FAN AC AXIAL 230V 119X38 2750RPM NMB Technologies Corporation | 31 | 1: ¥92.548 | - | 39 dB | Ball | 13.0W | 230VAC | 1.2 lbs (544.3g) | Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.100A | 2750 RPM | 95.0 CFM (2.69m³/min) | Tubeaxial | 0.255 in H2O (63.7 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | - | 112 Days | Not Specified | Counter Clockwise | 50|60 | 119 | - | - | Compliant | - | 15|13 | 0.12|0.1 | - | 38 | - | - | Flange Mount | Aluminum | 119 | 0.216inH2O|0.255inH2O | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
FAN AC AXIAL 230V 119X38 2600RPM FAN, 119MM, 230VAC, 88.2CFM, 41DB NMB Technologies Corporation | 111 | 1: ¥92.548 | - | 37 dB | Ball | 11.0W | 230VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.080A | 2600 RPM | 88.2 CFM (2.50m³/min) | Tubeaxial | 0.208 in H2O (51.9 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | :4715MS | 101 Days | Blowers and Fans | - | - | :38mm | :230VAC | - | - | 84145920 | - | - | :Terminals | - | :2.5m³/min | :88.2cu.ft/min | - | - | - | - | :AC | - | :119mm | :119mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
NMB Technologies | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 98 Days | Not Specified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 20: ¥132.974 | - | 28 dB | Ball | 6.0W | 230VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.045A | 1450 RPM | 49.4 CFM (1.40m³/min) | Tubeaxial | 0.059 in H2O (14.7 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | * | - | - | - | - | - | - | 11938MB-B3J-EP-00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 20: ¥132.974 | - | 30 dB | Ball | 7.5W | 230VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.060A | 1900 RPM | 67.0 CFM (1.89m³/min) | Tubeaxial | 0.860 in H2O (214.2 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | * | - | - | - | - | - | - | 11938MB-B3K-EP-00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 20: ¥132.974 | - | 37 dB | Ball | 11.0W | 230VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.080A | 2600 RPM | 88.2 CFM (2.50m³/min) | Tubeaxial | 0.208 in H2O (51.9 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | * | - | - | - | - | - | - | 11938MB-B3L-EP-00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 20: ¥132.974 | - | 39 dB | Ball | 13.0W | 230VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.100A | 2750 RPM | 95.0 CFM (2.69m³/min) | Tubeaxial | 0.255 in H2O (63.7 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | * | - | - | - | - | - | - | 11938MB-B3M-EP-00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 FAN AC AXIAL 230V 119X38 THERM P FAN, 119MM, 230VAC, 102CFM, 37DB NMB Technologies Corporation | 463 | 1: ¥154.02 | - | :41dB | :Ball | 14.0W | 230VAC | 0.55 | 2 Terminals | :119mm x 119mm x 38mm | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | :120mA | 2900 RPM | 102.0 CFM (2.88m³/min) | Tubeaxial | 0.283 in H2O (70.5 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | * | - | - | - | - | :38mm | :230VAC | 11938MB-B3N-EP-00 | - | 84145920 | - | - | :Terminals | - | :2.9m³/min | :102cu.ft/min | - | - | - | - | :AC | :120mm | :119mm | :119mm | :15W | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | :120mm | :114.5mm | :4.3mm | :105mm | - | - | - | - | - | - | - | - | - | - | - |
 NMB-MAT美蓓亚 | 0 | - | 37db | 免维护双滚珠轴承 | 15W | - | - | - | - | 详见附件说明 | - | - | - | - | - | - | - | - | - | - | - | - | - | 2600转/分 | 50/60Hz | - | 230V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 无需电容启动 | 金属外框塑料扇叶 | 120×120×38mm | NMB-MAT风扇 | 4715MS-23T-B50 | 日本 | -20-----------------+60℃ | 150 m3/h | 0------------63.7Pa | - | - | |
 Axial fan AC 119 x 119 x 38 mm 150 m³/h 230 VAC 15.0 W, 4715MS-23T-B5A-D00, NMB NMB | 0 | - | 37 | Ball bearing | - | 230 | 550 | Plug contacts 2.8 x 0.5 mm | 119 x 119 x 38 | - | -10...+70 °C | - | - | - | - | - | - | - | - | - | - | - | - | 2600 rpm | 50 Hz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 15.0 W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 230 VAC | 150 | |
NMB TECHNOLOGIES | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
