4715MS-12T fans, thermal management 系列
MinebeaMitsumi Inc.各种速度和功率的交流轴流风扇
MinebeaMitsumi公司的4715MS-12T风扇系列是一款适用于电子设备高效热管理的多功能AC轴流风扇。这些风扇有不同的转速和功率等级，使其适用于广泛的应用领域。如果您正在为笔记本电脑、服务器或其他产生大量热量的电子设备开发冷却解决方案，这些风扇是一个很好的选择。
值得一提的是，它们的设计紧凑，优化了在狭小空间内提供有效气流的能力。当工程师需要一款能够在不牺牲性能和噪音水平的情况下处理不同热负荷的可靠风扇时，往往会选用这个系列。能够调节转速使得根据特定的冷却需求进行精细调整成为可能，这对于温度控制至关重要的系统尤其有用。
另一个实用的特点是其耐用性和可靠性，这使它们成为需要持续运行的环境中的首选选项。此外，它们还以低噪音著称，在需要静音操作的消费电子产品和其他应用中具有显著优势。总体而言，4715MS-12T系列提供了一种平衡了性能和效率的组合，使其成为热管理项目中的一个稳健投资。
系列图片（9 张）
文档与媒体
常见问答
4715MS-12T fans, thermal management - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 噪声 | 轴承类型 | 功率（瓦） | 额定电压 | 重量 | 端接方式 | 尺寸/外形 | 额定寿命 | 工作温度 | 标准包装数量 | RoHS | 最大额定电流 | RPM | 风量 | 风扇类型 | 静压 | 刀片材料 | 框架材料 | 转速 | 频率 | 系列 | 交货时间 | 子类别 | 深度 | 高度 | 壳体材料 | 总长度 | 欧盟RoHS | 额定功率 | 输出电流 | 安装类型 | 最大压力 | 抗辐射加固 | 最大功率 | 噪声系数 | 噪声系数（dB典型值 @ f） | 尺寸 | 直径 | 安装样式 | 操作力 | 类型 | 结工作温度 | 其他名称 | 供电电流 | 供电电压 | 平均正向功率 | 材料（通用） | 海关税号 | 材料阻燃等级 | 量程（°/s） | 供电类型 | 宽度 | 流量 (CFM) | 流量（SCFM） | 高度（最大） | 端子类型 | 压力（PSI） | 外壳与棱镜材料 | 功能 | 已删除 | 电容 | 总体尺寸 | 制造商全称 | 产品子类型 | 制造国家 | 温度 | 高风量 | 工作压力 | 电压 | 流速 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

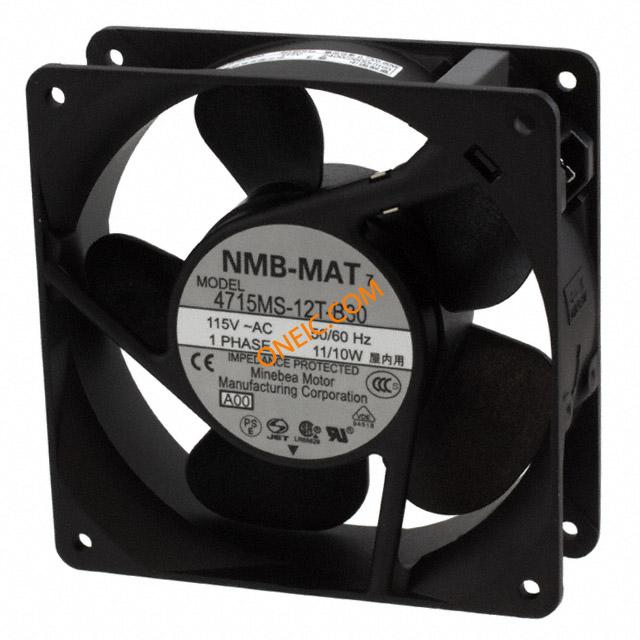

 AC Fan Ball Bearing 115V 0.16A/0.14A 11W/10W 50Hz/60Hz 2400RPM/2600RPM 81CFM/88.2CFM 34dB/37dB Flange Mount FAN AC AXIAL 115V 119X38 2600RPM NMB Technologies Corporation | 646 | 1: ¥92.548 | - | 37 dB | Ball | 10.0W | 115VAC | 1.2 lbs (544.3g) | Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.140A | 2600 RPM | 88.2 CFM (2.50m³/min) | Tubeaxial | 0.200 in H2O (49.9 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | Counter Clockwise | 50/60 Hz | 4715MS | 95 Days | Blowers and Fans | 119 mm | 38 mm | Aluminum | 119 mm | Compliant | 11/10 W | 0.16|0.14 | Flange Mount | 0.2inH2O | No | 10.0W | 34/37 dB | 37 dB | Square - 119mm L x 119mm H x 38mm W | Not Required mm | Flange | 0.200 in H2O (49.9 Pa) | AC Fan | 70C | - | 0.16/0.14 A | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 AC Fan Ball Bearing 115V 0.09A/0.08A 6W/5.5W 50Hz/60Hz 1350RPM/1450RPM 45.9CFM/49.4CFM 27dB/28dB Flange Mount FAN AC AXIAL 115V 119X38 1450RPM NMB Technologies Corporation | 3944 | 1: ¥92.548 | - | 28 dB | Ball | 5.5W | 115VAC | 1.2 lbs (544.3g) | Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.080A | 1450 RPM | 49.4 CFM (1.40m³/min) | Tubeaxial | 0.066 in H2O (16.6 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | Counter Clockwise | 50|60 | 4715MS | 65 Days | Blowers and Fans | 119 | 38 | Aluminum | 119 | Compliant | 6|5.5 | 0.09|0.08 | Flange Mount | 0.062inH2O|0.066inH2O | - | 5.5W | - | 28 dB | Square - 119mm L x 119mm H x 38mm W | - | - | 0.066 in H2O (16.6 Pa) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
AC Fan Ball Bearing 115V 0.25A/0.21A 15.5W/14.5W 50Hz/60Hz 2600RPM/2900RPM 88.2CFM/102CFM 37dB/41dB Flange Mount FAN AC AXIAL 115V 119X38 2900RPM AC Fan Ball Bearing 115V 0.25A/0.21A 15.5W/14.5W 50Hz/60Hz 2600RPM/2900RPM 88.2CFM/102CFM 37dB/41dB Flange Mou FAN, 119X119X38MM, 115VAC NMB Technologies Corporation | 38 | 1: ¥90.60 | - | 41 dB | Ball | 14.5W | 115VAC | 1.2 lbs (544.3g) | Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.210A | 2900 RPM | 102.0 CFM (2.88m³/min) | Tubeaxial | 0.306 in H2O (76.4 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | Counter Clockwise | 50/60 Hz | :4715MS | 112 Days | Blowers and Fans | 119 mm | 38 mm | Aluminum | 119 mm | Compliant | 15.5/14.5 W | 0.25|0.21 | Flange Mount | 0.259inH2O|0.306inH2O | No | - | 37/41 dB | - | - | Not Required mm | Flange | - | AC Fan | 70C | - | 0.25/0.21 A | :115VAC | :15.5W | :Polycarbonate | 84145920 | :UL94-V0 | :2600rpm | :Terminals | :119mm | :2.9m³/min | :102cu.ft/min | :119mm | :Terminals | :64.3Pa | :Aluminium | :AC | - | - | - | - | - | - | - | - | - | - | - |

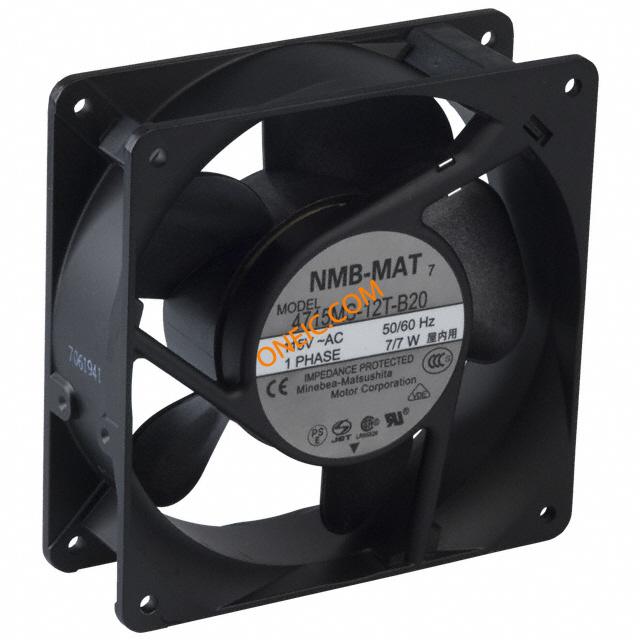

 AC Fan Ball Bearing 115V 0.1A 7W 50Hz/60Hz 2100RPM/1950RPM 70.6CFM/67CFM 32dB/30dB Flange Mount FAN AC AXIAL 115V 119X38 1950RPM NMB Technologies Corporation | 3227 | 1: ¥92.548 | - | 30 dB | Ball | 7W | 115VAC | 1.2 lbs (544.3g) | Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.100A | 1950 RPM | 67.0 CFM (1.89m³/min) | Tubeaxial | 0.098 in H2O (24.5 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | Counter Clockwise | 50|60 | - | 96 Days | Blowers and Fans | 119 | 38 | Aluminum | 119 | Compliant | 7 | 0.1 | Flange Mount | 0.141inH2O|0.098inH2O | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 FAN AC AXIAL 115V 119X38 2750RPM AC Fan Ball Bearing 115V 0.22A/0.19A 15W/13W 50Hz/60Hz 2450RPM/2750RPM 85CFM/95CFM 35dB/39dB Flange Mount NMB Technologies Corporation | 263 | 1: ¥92.548 | - | 39 dB | Ball | 13.0W | 115VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.190A | 2750 RPM | 95.0 CFM (2.69m³/min) | Tubeaxial | 0.259 in H2O (64.6 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | Counter Clockwise | 50/60 Hz | 4715MS | 91 Days | Blowers and Fans | 119 mm | 38 mm | Aluminum | 119 mm | - | - | - | - | - | No | 13.0W | 35/39 dB | 39 dB | Square - 119mm L x 119mm H x 38mm W | Not Required mm | Flange | 0.259 in H2O (64.6 Pa) | AC Fan | 70C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Compliant | - | - | - | - | - | - | - | - | - | - |
 NMB Technologies | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 98 Days | Not Specified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 20: ¥132.974 | - | 37 dB | Ball | 10.0W | 115VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.140A | 2600 RPM | 88.2 CFM (2.50m³/min) | Tubeaxial | 0.200 in H2O (49.8 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | - | - | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 11938MB-A1L-EP-00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 20: ¥132.974 | - | 39 dB | Ball | 13.0W | 115VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.190A | 2750 RPM | 95.0 CFM (2.69m³/min) | Tubeaxial | 0.259 in H2O (64.6 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | - | - | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 11938MB-A1M-EP-00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 20: ¥132.974 | - | 41 dB | Ball | 14.5W | 115VAC | 1.2 lbs (544.3g) | 2 Terminals | Square - 119mm L x 119mm H x 38mm W | 50000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | 20 | Lead free / RoHS Compliant | 0.210A | 2900 RPM | 102.0 CFM (2.88m³/min) | Tubeaxial | 0.306 in H2O (76.4 Pa) | Polycarbonate (PC), Fiberglass Reinforced | Aluminum | - | - | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 11938MB-A1N-EP-00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 1: ¥104.448 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 NMB-MAT美蓓亚 | 0 | - | 41db | 免维护双滚珠轴承 | 14.5W | - | - | - | - | 详见附件说明 | - | - | - | - | - | - | - | - | - | - | 2900转/分 | 50/60Hz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 115V | - | 金属外框塑料扇叶 | - | - | - | - | - | - | - | - | - | - | - | - | - | 无需电容启动 | 120×120×38mm | NMB-MAT风扇 | 4715MS-12T-B50 | 日本 | -20-----------------+60℃ | 174 m3/h | 0------------76.4Pa | - | - | |
 Axial fan AC 119 x 119 x 38 mm 150 m³/h 115 VAC 15.5 W, 4715MS-12T-B5A-D00, NMB NMB | 0 | - | 37 | Ball bearing | - | 115 | 550 | Plug contacts 2.8 x 0.5 mm | 119 x 119 x 38 | - | -10...+70 °C | - | - | - | - | - | - | - | - | - | 2600 rpm | 50 Hz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 15.5 W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 115 VAC | 150 |
