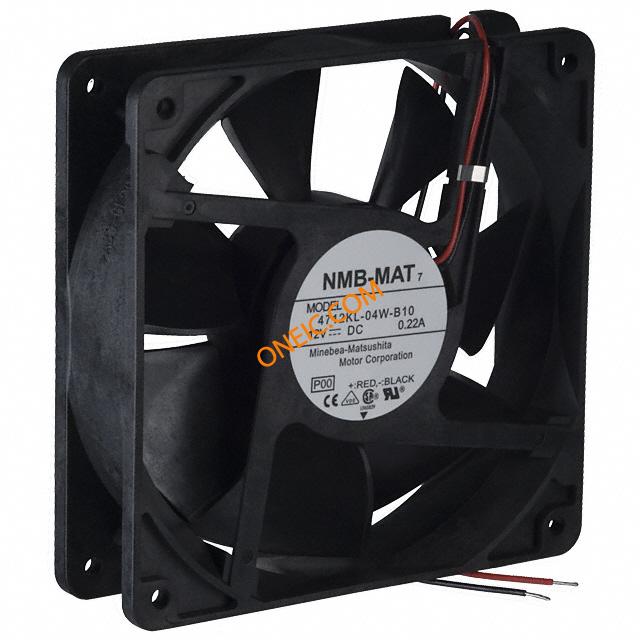

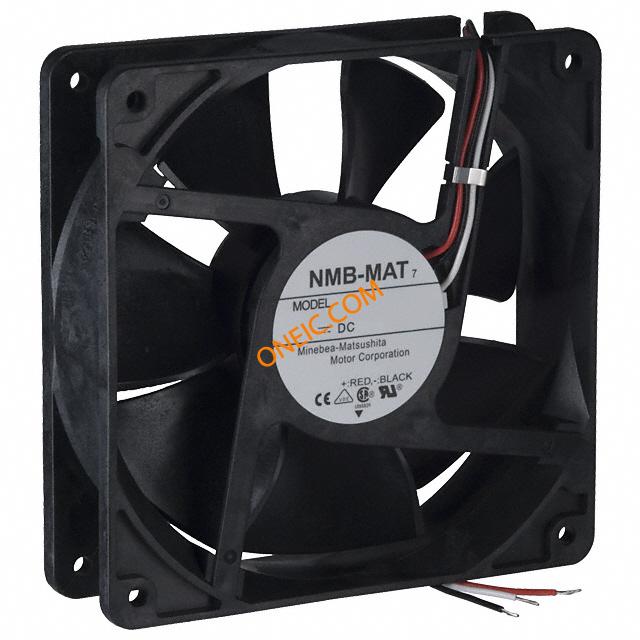

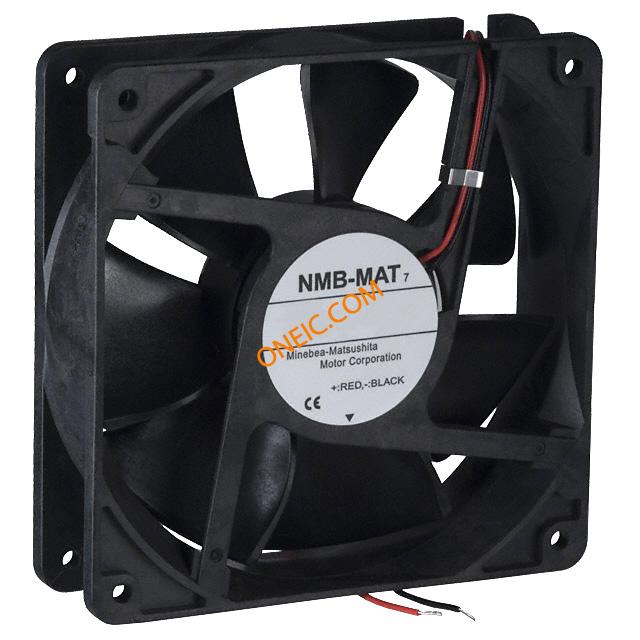

4712KL-04W fans, thermal management 系列
MinebeaMitsumi Inc.12V DC 轴流风扇，尺寸 119x32
MinebeaMitsumi Inc. 的 4712KL-04W 风扇是尺寸为 119mm x 32mm 的 12V 直流轴流风扇。这些风扇广泛应用于各种热管理解决方案中，特别是在紧凑型电子设备和小型外形因子设备中。如果您正在处理涉及笔记本电脑、服务器或工业控制面板的项目，由于其小巧的尺寸和高效的冷却能力，这些风扇非常适合。
值得注意的是，它们具有低矮的设计，使其非常适合空间有限的系统。工程师在需要可靠、安静且节能的冷却解决方案时，通常会选择这些风扇，而不会占用太多空间。此外，它们还以其较长的服务寿命和坚固的构造而闻名，在消费级和工业级应用中都备受欢迎。
另一个实用方面是它们与标准 12V 电源供应器的广泛兼容性，这简化了它们与现有系统的集成。总体而言，4712KL-04W 风扇提供了一种性能与尺寸之间的良好平衡，使其成为紧凑设计中热管理挑战的理想选择。
系列图片（8 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
4712KL-04W fans, thermal management - 型号列表
共 15 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 噪声 | 功率（瓦） | 电压范围 | 额定电压 | 最大额定电流 | RPM | 重量 | 风量 | 风扇类型 | 端接方式 | 轴承类型 | 静压 | 刀片材料 | 框架材料 | 尺寸/外形 | 额定寿命 | 工作温度 | 产品特性 | RoHS | 交货时间 | 子类别 | 系列 | SVHC | 欧盟RoHS | 海关税号 | 转速 | 输入范围 | 量程（°/s） | 额定功率 | 输出电流 | 供电电压 | 供电类型 | 平均正向功率 | 深度 | 宽度 | 高度 | 材料（通用） | 流量 (CFM) | 流量（SCFM） | 高度（最大） | 安装类型 | 壳体材料 | 总长度 | 最大压力 | 连接器颜色 | 面板开孔形状 | 功能 | 结工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DC Fan Ball Bearing 12V 0.48A 5.76W 2800RPM 99.94CFM 44dB Flange Mount FAN DC AXIAL 12V 119X32 2800 RPM FAN, 119MM, 12VDC NMB Technologies Corporation | 10 | 1: ¥181.20 | - | 10 | 44 dB | 5.76W | 6 ~ 13.8VDC | 12VDC | 0.480A | 2800 RPM | 0.529 lb (239.95g) | 99.9 CFM (2.83m³/min) | Tubeaxial | Lead Wire | Ball | 0.241 in H2O (60.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | - | Lead free / RoHS Compliant | 98 Days | Blowers and Fans | :4712KL | :No SVHC (20-Jun-2013) | Compliant | 84145920 | Clockwise | 6 to 13.8 | :2800rpm | 5.76 | 0.48 | :12VDC | :Wire Leaded | :5.76W | :32mm | :119mm | 32 | :Plastic | :2.83m³/min | :99.9cu.ft/min | :119mm | Flange Mount | Plastic | 119 | 60Pa | :Black | :126.0mm | :DC | :100000h |
| 10 | 1: ¥125.324 | - | 10 | 29 dB | 1.92W | 6 ~ 13.8VDC | 12VDC | 0.160A | 1600 RPM | 0.529 lb (239.95g) | 56.1 CFM (1.59m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.088 in H2O (21.9 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | - | Lead free / RoHS Compliant | 98 Days | Blowers and Fans | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 210 | 1: ¥163.336 | - | 10 | 50.5 dB | 10.2W | 6 ~ 13.8VDC | 12VDC | 0.850A | 3300 RPM | 0.529 lb (239.95g) | 120.0 CFM (3.39m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.373 in H2O (93.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | - | Lead free / RoHS Compliant | 98 Days | Blowers and Fans | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 10 | 200: ¥119.7344 | - | 10 | 50.5 dB | 10.2W | 6 ~ 13.8VDC | 12VDC | 0.850A | 3300 RPM | 0.529 lb (239.95g) | 120.0 CFM (3.39m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.373 in H2O (93.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Locked Rotor Sensor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 10 | 200: ¥119.7344 | - | 10 | 29 dB | 1.92W | 6 ~ 13.8VDC | 12VDC | 0.160A | 1600 RPM | 0.529 lb (239.95g) | 56.1 CFM (1.59m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.088 in H2O (21.9 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Locked Rotor Sensor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 200: ¥100.3544 | - | 10 | 29 dB | 1.92W | 6 ~ 13.8VDC | 12VDC | 0.160A | 1600 RPM | 0.529 lb (239.95g) | 56.1 CFM (1.59m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.088 in H2O (21.9 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Speed Sensor (Tach) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 200: ¥100.3544 | - | 10 | 39 dB | 3.84W | 6 ~ 13.8VDC | 12VDC | 0.320A | 2300 RPM | 0.529 lb (239.95g) | 82.2 CFM (2.33m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.168 in H2O (41.8 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Locked Rotor Sensor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 200: ¥100.3544 | - | 10 | 39 dB | 3.84W | 6 ~ 13.8VDC | 12VDC | 0.320A | 2300 RPM | 0.529 lb (239.95g) | 82.2 CFM (2.33m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.168 in H2O (41.8 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Speed Sensor (Tach) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 200: ¥100.3544 | - | 10 | 44 dB | 5.76W | 6 ~ 13.8VDC | 12VDC | 0.480A | 2800 RPM | 0.529 lb (239.95g) | 99.9 CFM (2.83m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.241 in H2O (60.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Locked Rotor Sensor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 200: ¥119.7344 | - | 10 | 44 dB | 5.76W | 6 ~ 13.8VDC | 12VDC | 0.480A | 2800 RPM | 0.529 lb (239.95g) | 99.9 CFM (2.83m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.241 in H2O (60.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Speed Sensor (Tach) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 200: ¥119.7344 | - | 10 | 47 dB | 8.28W | 6 ~ 13.8VDC | 12VDC | 0.690A | 3100 RPM | 0.529 lb (239.95g) | 112.0 CFM (3.17m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.329 in H2O (82.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Locked Rotor Sensor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 200: ¥119.7344 | - | 10 | 47 dB | 8.28W | 6 ~ 13.8VDC | 12VDC | 0.690A | 3100 RPM | 0.529 lb (239.95g) | 112.0 CFM (3.17m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.329 in H2O (82.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Speed Sensor (Tach) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 30: ¥118.218 | - | 10 | 39 dB | 3.84W | 6 ~ 13.8VDC | 12VDC | 0.320A | 2300 RPM | 0.529 lb (239.95g) | 82.2 CFM (2.33m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.168 in H2O (41.8 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | - | Lead free / RoHS Compliant | 365 Days | Blowers and Fans | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 30: ¥111.1773 | - | 10 | 47 dB | 8.28W | 6 ~ 13.8VDC | 12VDC | 0.690A | 3100 RPM | 0.529 lb (239.95g) | 112.0 CFM (3.17m³/min) | Tubeaxial | 2 Wire Leads | Ball | 0.329 in H2O (82.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | - | Lead free / RoHS Compliant | 98 Days | Blowers and Fans | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 200: ¥120.9448 | - | 10 | 50.5 dB | 10.2W | 6 ~ 13.8VDC | 12VDC | 0.850A | 3300 RPM | 0.529 lb (239.95g) | 120.0 CFM (3.39m³/min) | Tubeaxial | 3 Wire Leads | Ball | 0.373 in H2O (93.0 Pa) | Plastic | Plastic | Square - 119mm L x 119mm H x 32mm W | 100000 hrs @ 25°C | 14 ~ 158°F (-10 ~ 70°C) | Speed Sensor (Tach) | Lead free / RoHS Compliant | - | - | * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 1 页
