cigen-2.5DMB

2.5DMB passive component 系列

Rubycon Corporation

Rubycon Corporation

Radial supercapacitors and electric double layer capacitors for various capacitances at 2.5V

系列图片（18 张）

文档与媒体

PDF 文档

PDF 文档

PDF 文档

常见问答

内容由 AI 生成，仅供参考

加载中...

03

2.5DMB passive component - 型号列表

共 13 个型号

制造商零件编号	库存	价格	产品类别	容差	电容	ESR（等效串联电阻）	高度	直径	工作温度	引脚间距	SVHC	海关税号	额定电压	输入电容值	重量	量程（°/s）	包装方式	额定寿命	电压	电阻公差	引脚直径	柱间距	安装类型	尺寸/外形	系列	电气寿命	长度	引脚数	外径	供电电压	深度	导线线规	连接器间距	端接样式	功能	工作范围	最小起订量	单位包装	RoHS	抗辐射加固	安装样式	封装形式	总长度	已删除

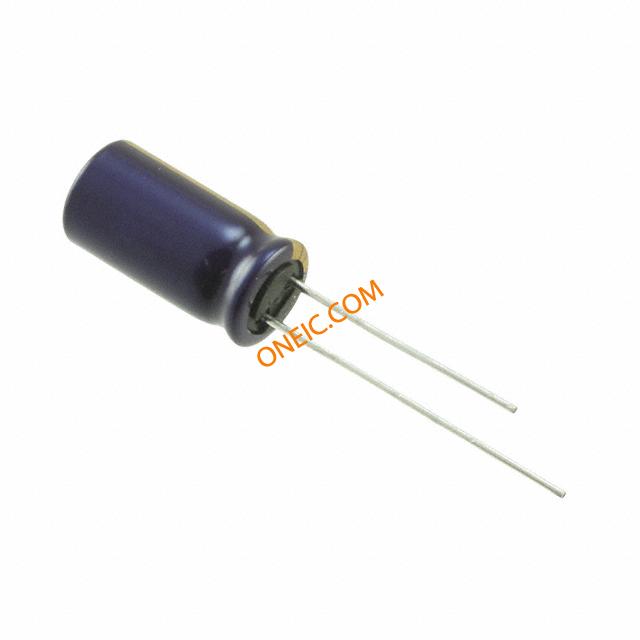

3 2.5DMB2R2M8X16 CAP SUPER 2.2F 2.5V RADIAL CAP, ALU ELEC, 2.2F, 2.5V, RAD Rubycon	888	¥22.14	-	:± 20%	:2.2F	:1ohm	:16mm	:8mm	:-25°C	:3.5mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:Radial Leaded	0.011	:RUBYCON - DMB Series	:-	:1000 hours @ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

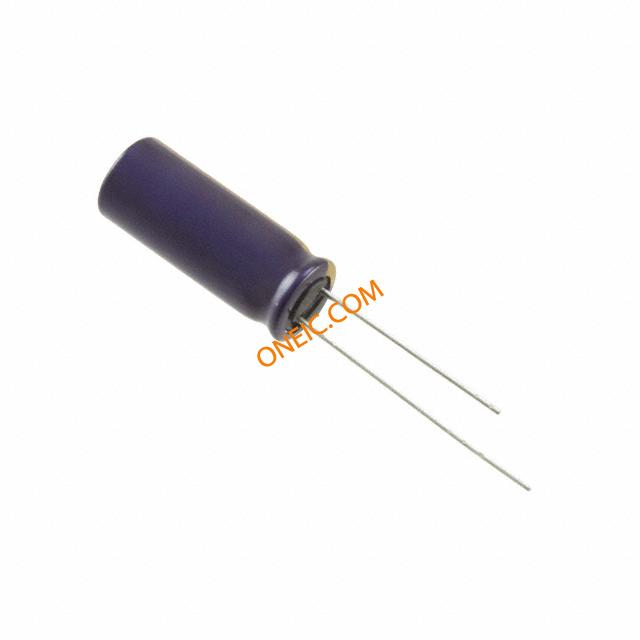

3 2.5DMB3R3M8X20 CAP SUPER 3.3F 2.5V RADIAL CAP, ALU ELEC, 3.3F, 2.5V, RAD Rubycon	10	¥25.83	-	:± 20%	:3.3F	:1ohm	:20mm	:8mm	:-25°C	:3.5mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:Radial Leaded	0.011	:RUBYCON - DMB Series	:-	:1000 hours @ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

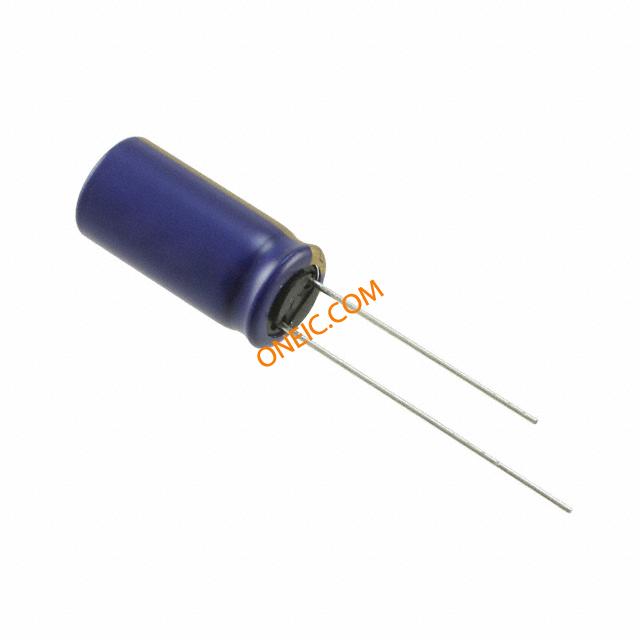

3 2.5DMB4R7M10X20 CAP SUPER 4.7F 2.5V RADIAL CAP, ALU ELEC, 4.7F, 2.5V, RAD Rubycon	1880	¥27.18	-	:± 20%	:4.7F	:0.5ohm	:20mm	:10mm	:-25°C	:5mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:Radial Leaded	0.0193	:RUBYCON - DMB Series	:-	:1000 hours @ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

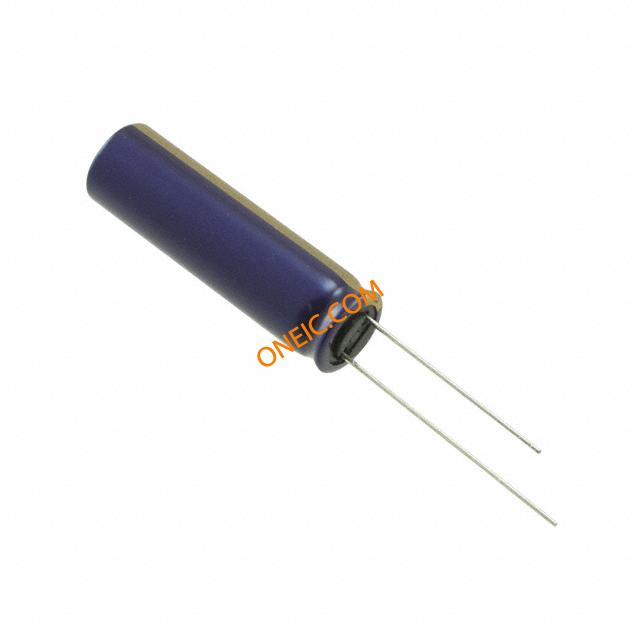

3 2.5DMB10M10X35 CAP SUPER 10F 2.5V RADIAL CAP, ALU ELEC, 10F, 2.5V, RAD Rubycon	422	¥43.27	-	:± 20%	:10F	:0.2ohm	:35mm	:10mm	:-25°C	:5mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:Radial Leaded	0.011	:RUBYCON - DMB Series	:-	:1000 hours @ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	4000	4000	Lead free / RoHS Compliant	-	-	-	-	-

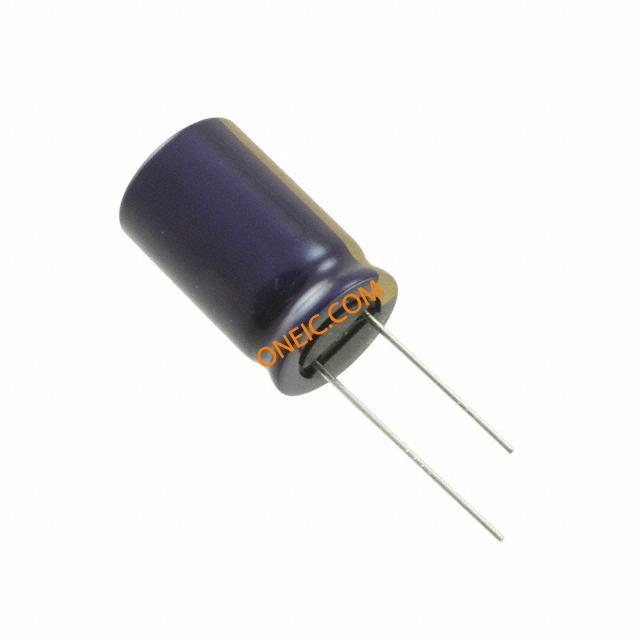

3 2.5DMB22M16X25 CAP SUPER 22F 2.5V RADIAL CAP, ALU ELEC, 22F, 2.5V, RAD Rubycon	98	¥90.27	-	:± 20%	:22F	:0.1ohm	:25mm	:16mm	:-25°C	:7.5mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:Radial Leaded	0.011	:RUBYCON - DMB Series	:-	:1000 hours @ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

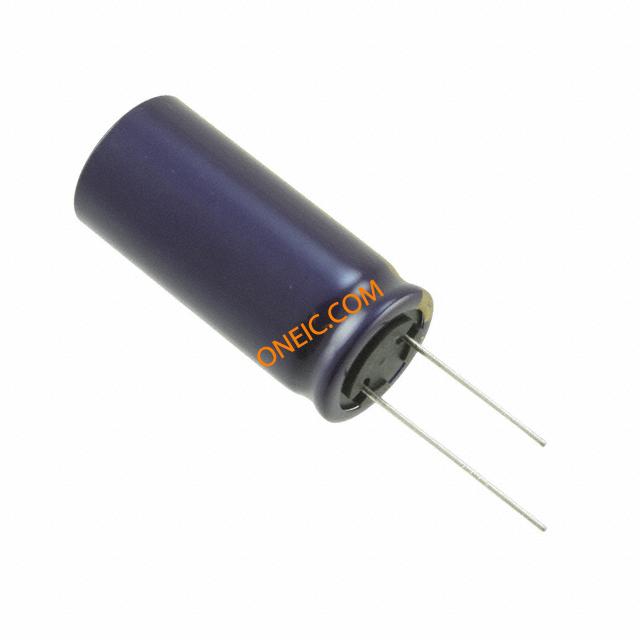

3 2.5DMB50M18X40 CAP SUPER 50F 2.5V RADIAL CAP, ALU ELEC, 50F, 2.5V, RAD Rubycon	200	¥122.90	-	:± 20%	:50F	:0.1ohm	:40mm	:18mm	:-25°C	:7.5mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:Radial Leaded	0.011	:RUBYCON - DMB Series	:-	:1000 hours @ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

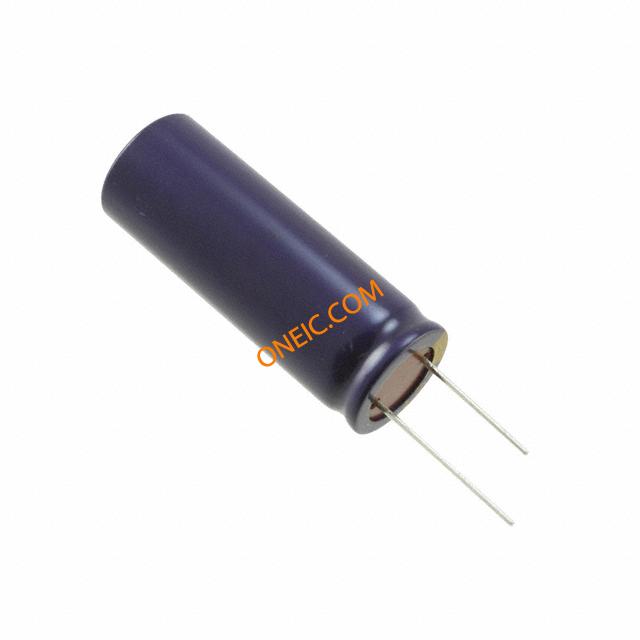

3 2.5DMB100M20X55 CAP SUPER 100F 2.5V RADIAL CAP, ALU ELEC, 100F, 2.5V, RAD Rubycon	10	¥239.01	-	:± 20%	:100F	:0.1ohm	:55mm	:20mm	:-25°C	:10mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:Radial Leaded	0.011	:RUBYCON - DMB Series	:-	:1000 hours @ 70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 2.5DMB22M16X31.5 Rubycon 22F ±20% 0.1Ω 2.5V dc Through Hole Electric Double Layer Capacitor CAP, SUPER, 22F, 2.5V, RAD Rubycon 22F 电双层电容器 ±20% Tolerance DMB Series 2.5 V 直流通孔 Rubycon	46	¥36.24	-	±20%	22F	0.1Ω	31.5mm	16mm	+70°C	:7.5mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:-	0.0074	-	-	-	2.5 V dc	-20%	0.8mm	7.5mm	Through Hole	16 Dia. x 31.5mm	:DMB	1000h	:31.5mm	:2	:16mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 2.5DMB100M22X65 Rubycon 100F ±20% 0.1Ω 2.5V dc Through Hole Electric Double Layer Capacitor CAP, SUPER, 100F, 2.5V, RAD Rubycon DMB 系列 100F 2.5 V 直流超级电容器 EDLC , ±20% 容差 Rubycon	45	¥154.02	-	±20%	100F	0.1Ω	65mm	22mm	+70°C	:10mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:-	0.0027	-	-	-	2.5 V dc	-20%	1mm	10mm	Through Hole	22 Dia. x 65mm	:DMB	1000h	:65mm	:2	:22mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 2.5DMB10M12.5X25 Rubycon 10F ±20% 0.2Ω 2.5V dc Through Hole Electric Double Layer Capacitor Rubycon DMB 系列 10F 2.5 V 直流超级电容器 EDLC , ±20% 容差 Rubycon	34	¥105.94	-	±20%	10F	0.2Ω	25mm	12.5mm	+70°C	-	-	-	-	-	-	-	-	-	2.5 V dc	-20%	0.6mm	5mm	Through Hole	12.5 Dia. x 25mm	DMB	1000h	-	-	-	2.5 V 直流	25mm	0.6mm	5mm	通孔安装	Y	1000h	-	-	-	-	-	-	-	-
2 2.5DMB30M16X35.5 Rubycon 30F ±20% 0.1Ω 2.5V dc Through Hole Electric Double Layer Capacitor Cap Supercap 30F 2.5V 20% Radial 7.5mm 0.1 Ohm 1000h 70C Aligned Rubycon 30F Supercapacitor ±20% Tolerance DMB Series 2.5 V 直流通孔 Rubycon	34	¥122.76	-	±20%	30F	0.1Ω	35.5mm	16mm	+70°C	7.5 mm	-	-	-	-	-	-	-	-	2.5 V dc	-20%	0.8mm	7.5mm	Through Hole	16 Dia. x 35.5mm	DMB	1000h	-	-	-	2.5 V 直流	Not Required mm	0.8mm	7.5mm	通孔安装	Y	1000h	-	-	-	No	Through Hole	Not Required	Not Required mm	Compliant
3 2.5DMB15M12.5X30 Rubycon 15F ±20% 0.1Ω 2.5V dc Through Hole Electric Double Layer Capacitor CAP, SUPER, 15F, 2.5V, RAD Rubycon	307	¥63.42	-	±20%	15F	0.1Ω	30mm	12.5mm	+70°C	:5mm	:No SVHC (20-Jun-2013)	85322200	:2.5V	:-	0.005	-	-	-	2.5 V dc	-20%	0.6mm	5mm	Through Hole	12.5 Dia. x 30mm	:DMB	1000h	:30mm	:2	:12.5mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2.5DMB40MLR18X35.5 DMB Series 2.5 v 40 F 18x35.5mm LS=7.5mm Radial Double Layer Capacitor RUBYCON	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
