SG2525 系列
stm
microsemi
16引脚电压模式PWM电源控制芯片
SG2525 产品系列介绍
1. 概述
SG2525 产品系列是一类用途广泛且高度通用的集成电路（IC），主要设计用于脉冲宽度调制（PWM）控制应用。这些集成电路在电力电子领域发挥着至关重要的作用，能够对功率转换器、电机驱动器以及其他需要可变占空比脉冲信号的系统进行高效、精确的控制。
2. 主要特性
2.1 精确的 PWM 控制
- SG2525 能够对输出信号的脉冲宽度进行精确控制。它可以生成占空比范围广泛的 PWM 信号，通常为 0% 至 100%（不过在实际应用中，由于内部电路的限制，有效范围可能会略小）。这种精确控制对于开关电源等应用至关重要，因为占空比决定了输出电压或电流。
- 它内置了一个误差放大器，用于将电力系统输出的反馈信号与参考电压进行比较。基于此比较结果，误差放大器会调整 PWM 占空比，以维持所需的输出参数。
2.2 可调振荡器
- SG2525 中的振荡器具有高度可调性。用户只需改变外部电阻和电容的值，就可以设置 PWM 信号的工作频率。这种灵活性使得 SG2525 能够应用于各种具有不同频率要求的场合。例如，在低功率应用中，为了降低开关损耗，可能会选择较低的频率；而在高功率或高速应用中，则可以选择较高的频率。
- 振荡器频率通常可以在几kHz 到几百kHz 的范围内进行调整，适用于广泛的电力电子设计。
2.3 双输出
- SG2525 提供两个互补的输出信号。这些输出用于驱动外部功率开关，如 MOSFET 或 IGBT，可采用推挽或半桥配置。输出的互补特性确保功率开关以交替方式导通和关断，这对于高效的功率转换至关重要。
- 输出信号具有足够的驱动能力，可直接驱动中小型功率开关，在许多应用中减少了对额外缓冲电路的需求。
2.4 保护特性
- 过流保护：SG2525 具备过流保护机制。它可以检测功率电路中的电流，若电流超过预设阈值，将自动减小 PWM 占空比或关闭输出，以保护功率开关和其他组件免受损坏。
- 欠压锁定：设有欠压锁定功能，确保集成电路仅在电源电压处于安全且指定的范围内时工作。如果电源电压降至锁定阈值以下，SG2525 将禁用其输出，防止系统出现不当操作和潜在损坏。
3. 应用
3.1 开关电源
- 在离线式和 DC - DC 开关电源中，SG2525 用于控制功率晶体管或 MOSFET。通过调整 PWM 占空比，它可以将电源的输出电压调节为恒定值，而不受输入电压或负载电流变化的影响。例如，在笔记本电脑电源适配器中，SG2525 有助于将来自墙上插座的高压交流输入转换为稳定的低压直流输出，供笔记本电脑使用。
3.2 电机驱动器
- 对于直流电机驱动器，SG2525 可用于控制…… （原文此处未完整）

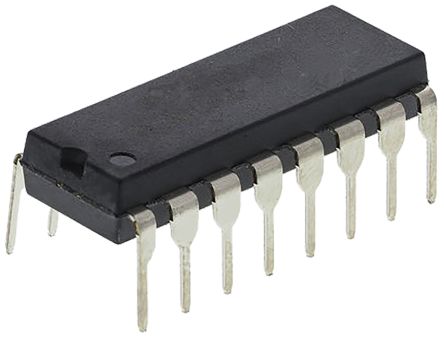

系列图片（16 张）
